EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 77 Revision A
3.3.7 Lens Shutter
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the two screws ( ), and remove the Lens Shutter.

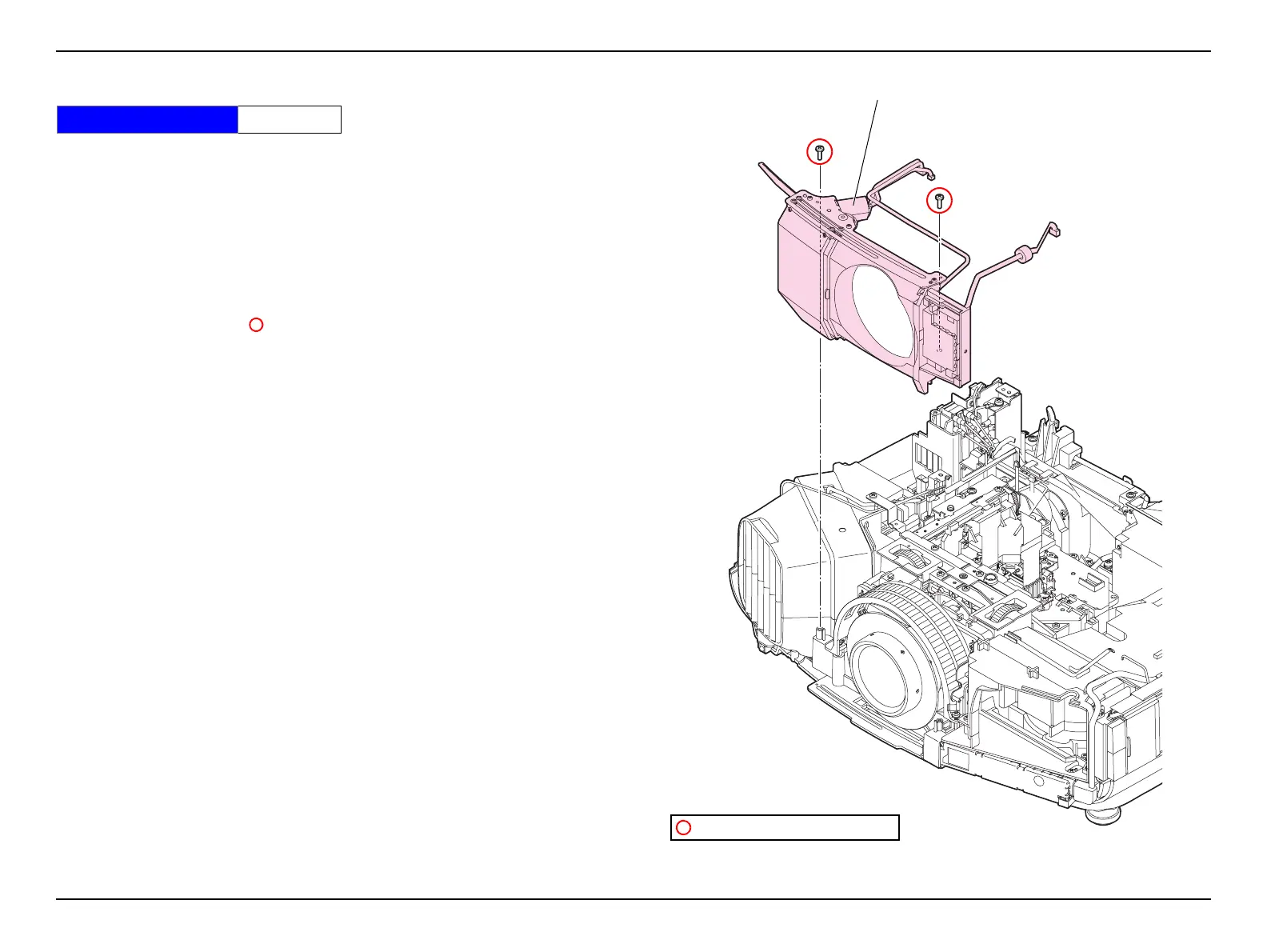

Figure 3-17.
Standard Operation Time 14 Min.
Lens Shutter
C.B.P-TITE SCREW,3X10,F/ZB-3C
