3.3.12.1 SW Board
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the INT Duct (assembly). (p.87)
10. Remove the SW Board (assembly). (p.94)
11. Remove the two screws ( ), and remove the Control Panel Case.
12. Remove the following parts from the Control Panel Case.
• Control Button A
• Control Button B
• Control Button C
• Control Panel Cover
• Control Panel Cover Spring
• Button Cushion (x4)
13. Remove the SW Cable from the SW Board.
14. Remove the SW Board Shade Sheet from the SW Board.
15. Remove the two screws ( ), and remove the SW Board.
16. Remove the following parts from the Control Panel Frame.
• Upper Control Sheet
• Lower Control Sheet

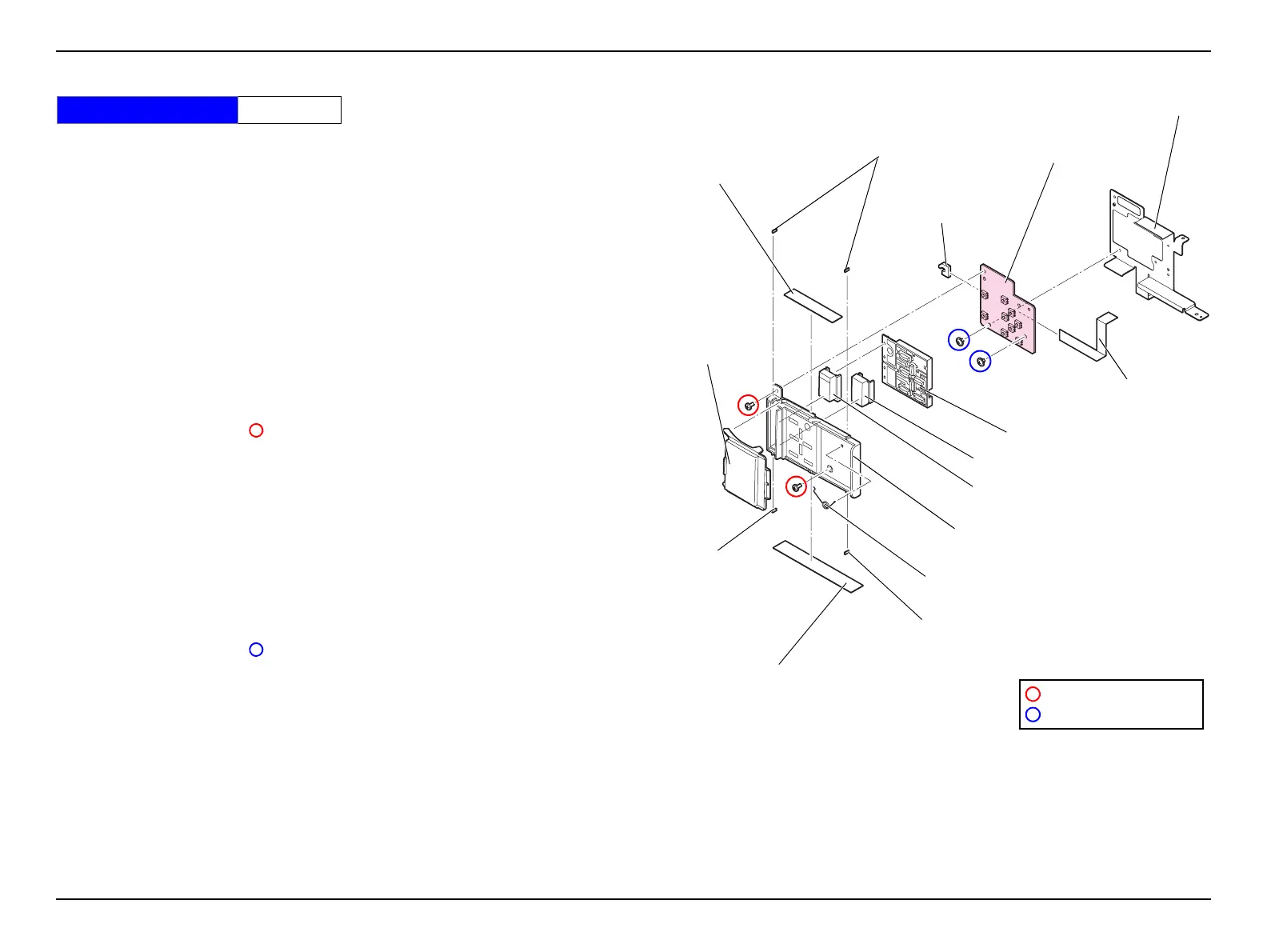

Figure 3-32.
Standard Operation Time 23 Min.
Button Cushion
SW Board
Upper Control Sheet
Control Pane
l
Frame
Control Button C
Control Panel
Cover
SW Cable
Lower Control Sheet
Control Button B
Control Panel Case
Control Button A
C.B.SCREW,3X6,F/ZB-3C
C.C.SCREW,3X4,F/ZN-3C
Button Cushion
Button Cushion
Control Panel Cover Spring
SW Board Shade Sheet
