3.3.17 Power Supply (assembly)
1. Remove the Air Filter. (p.64)
2. Remove the Lamp. (p.64)
3. Remove the Rear Case. (p.66)
4. Remove the Front Case. (p.67)
5. Remove the Upper Case. (p.68)
6. Remove the MA Board (assembly). (p.70)
7. Remove the Lens Shutter. (p.77)
8. Remove the Optical Engine (assembly). (p.78)
9. Remove the five screws ( )( )( ).
10. Disconnect the BA Cable from the Ballast (assembly).
11. Disconnect the AC Cable from the Power Supply (assembly), and remove the
Power Supply (assembly).

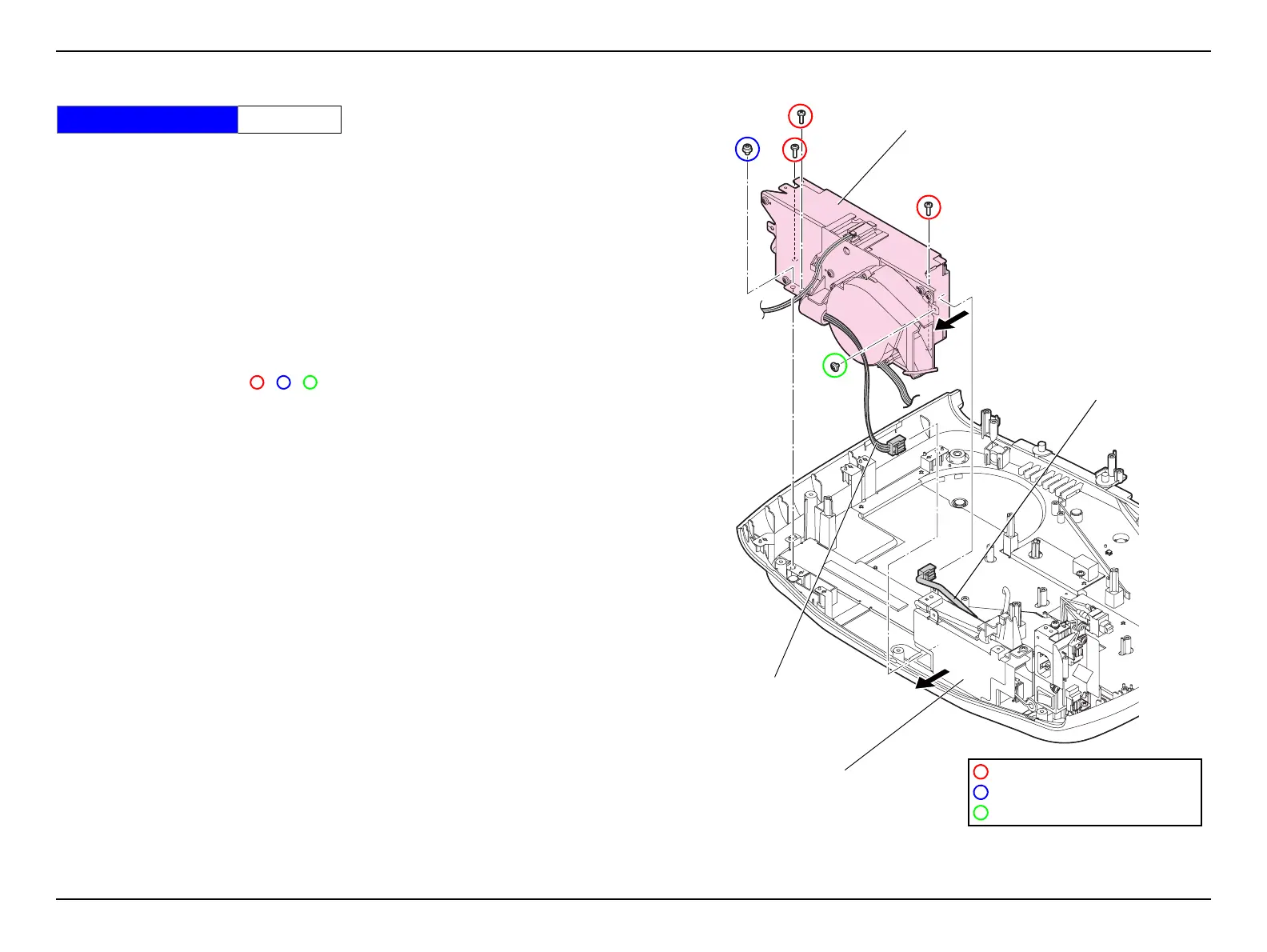

Figure 3-37.
Standard Operation Time 20 Min.
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.P.(O)SCREW,4X6,F/NI
C.C.SCREW,3X4,F/ZN-3C
BA Cable
Ballast (assembly)
AC Cable
Power Supply (assembly)
