EH-TW8000/TW9000/TW9000W Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 66 Revision A
3.3.3 Rear Case
1. Remove the three screws ( ) from the bottom.
2. Remove the three screws ( ), and remove the IF Cover.

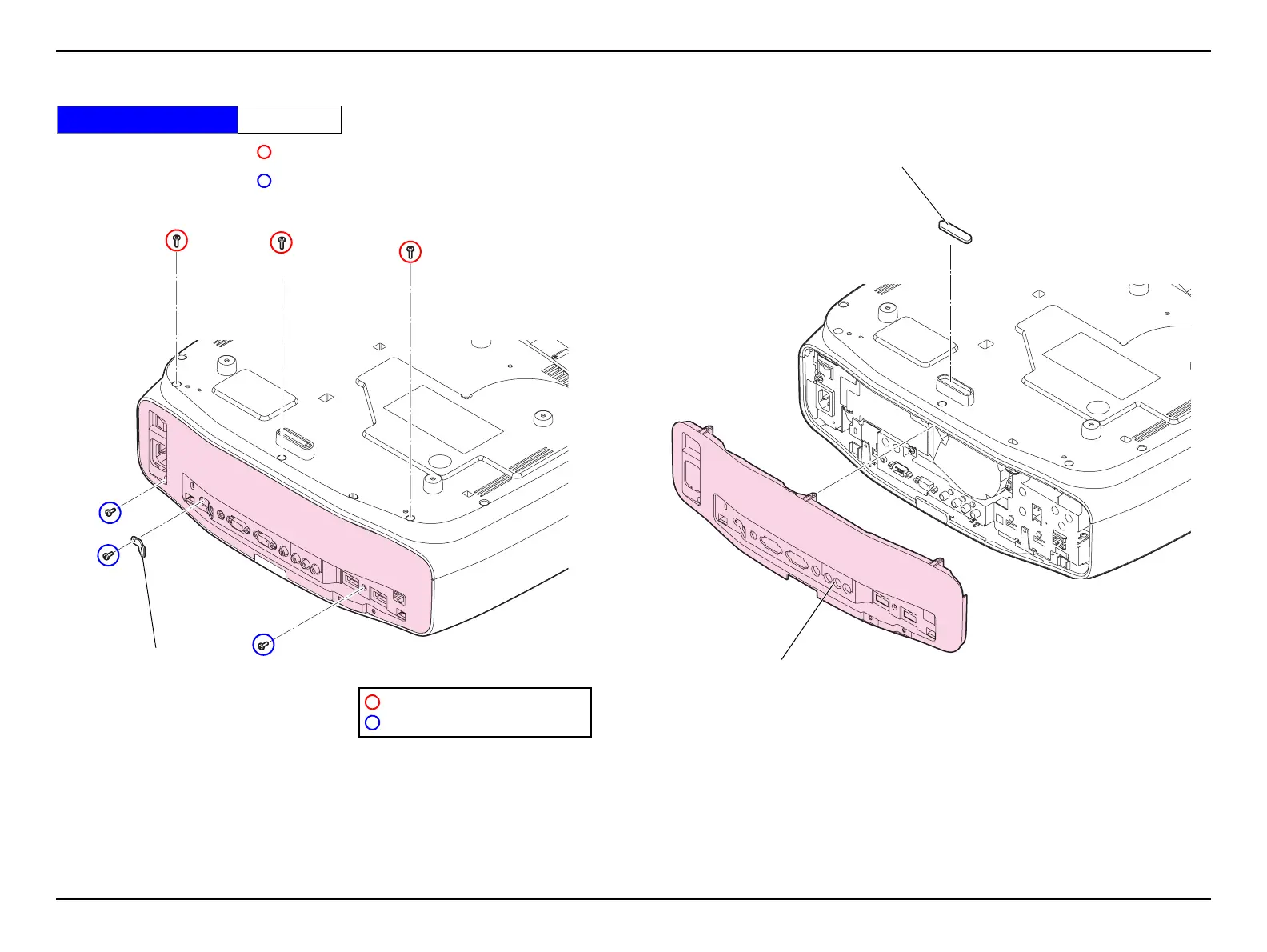

Figure 3-4.
3. Remove the Rear Case.
4. Remove the Rear Foot Rubber.
Figure 3-5.
Standard Operation Time 2 Min.
IF Cover
C.B.P-TITESCREW,3X10,F/ZN-3C
C.B.SCREW,3X8,F/ZB-3C
Rear Foot Rubber
Rear Case
