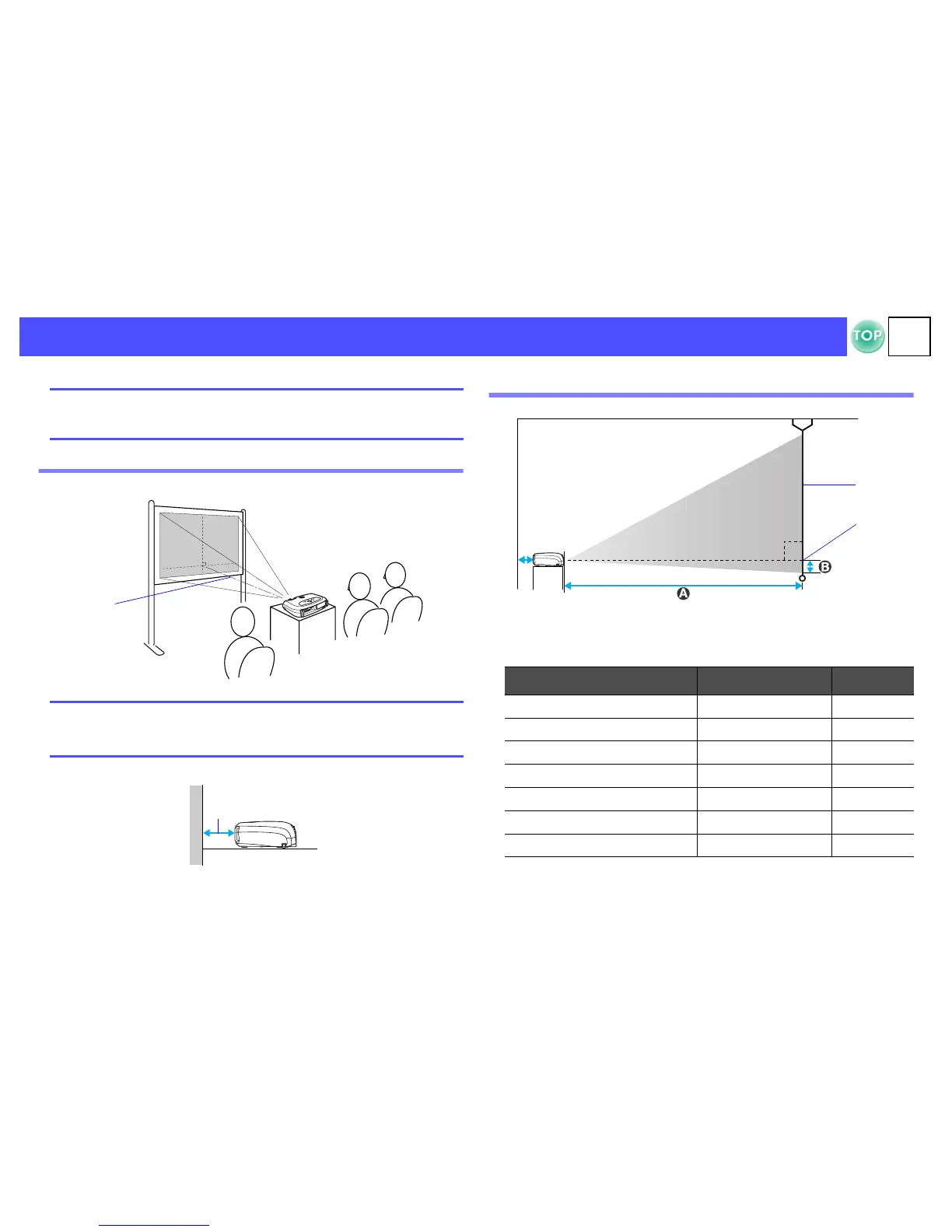

Installation
Installation method
Set up the projector so that it is at right angles to a screen.
Projection distance and screen size
*The value of B decreases when you reduce the image with the zoom.
(The minimum value is zero)
The values should be used as a guide for setting the projector.
c
Be sure to read the "Safety Instructions / World-Wide Warranty
Terms" guide before installation.
p
When setting up the projector against a wall, leave a space of at
least 20cm between the projector and the wall.
Projection distance:
87-1109cm
20cm (7.9in.) or more
4:3 Screen size (cm/ft.) A cm (ft.) B cm (in.)*
30" (61 × 46 / 24.0 × 18.1) 87−108 (2.9 − 3.5) 4 (2)
40" (81 × 61 / 31.9 × 24.0) 117−145 (3.8 − 4.8) 6 (2)
60" (120 × 90 / 47.2 × 35.4) 177−219 (5.8 − 7.2) 9 (3)
80" (160 × 120 / 63.0 × 47.2) 237−293 (7.8 − 9.6) 12 (5)
100" (200 × 150 / 78.7 × 59.1) 297−367 (9.7 − 121) 14 (6)
200" (410 × 300 / 161.4 × 118.1) 596−738 (19.6 − 24.2) 29 (11)
300" (610 × 460 / 240.2 × 181.1) 895−1109 (29.4 − 36.4) 43 (17)
90°
Centre of
lens
Screen
Projection distance
Distance from
centre of lens to
bottom edge of
screen
