Part Names and Functions

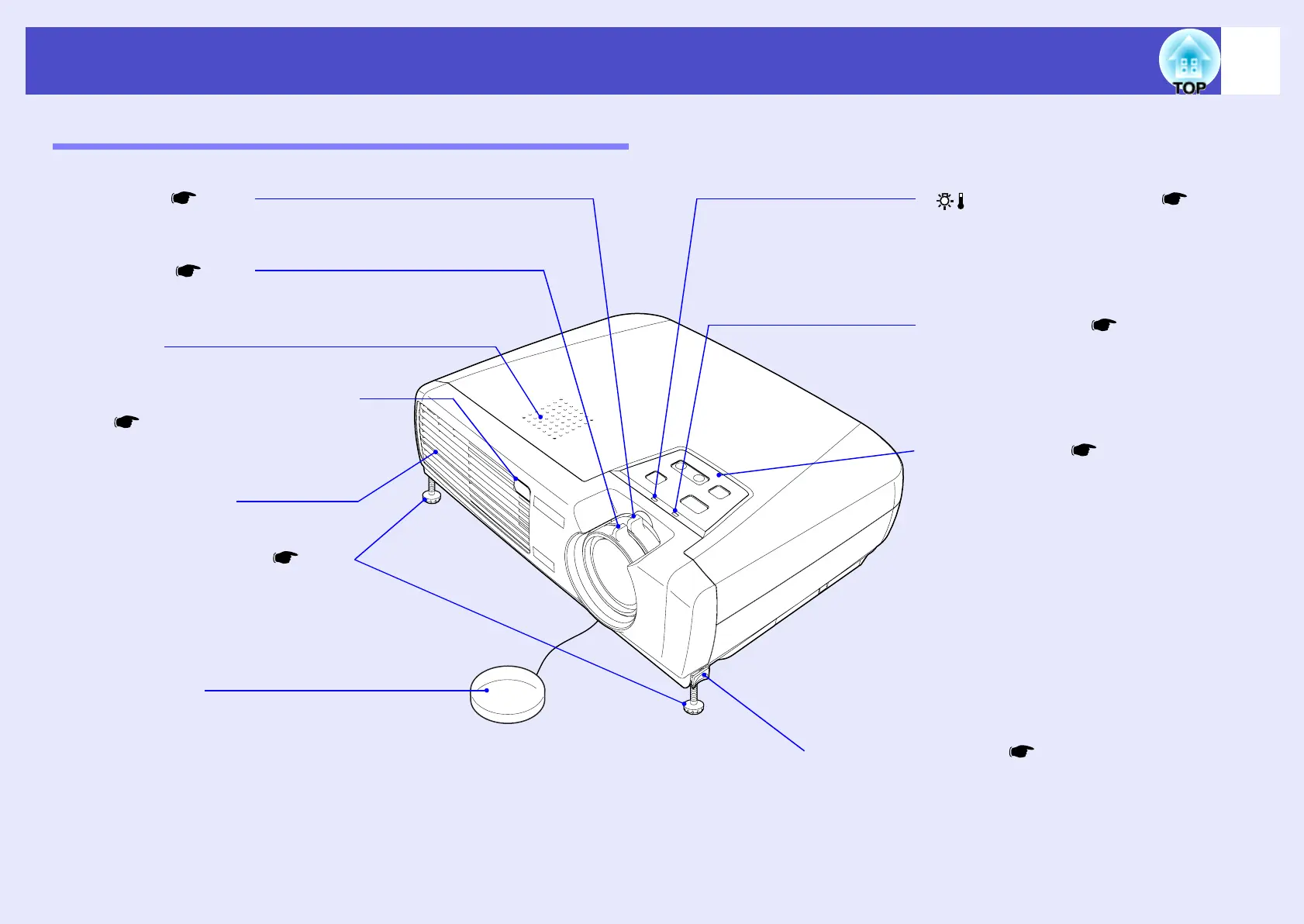

Front/Top
•
Control panel p.8
•
Zoom ring p.37
Adjusts the image size.
•
Remote control light-receiving
area p.12
Receives signals from the remote control.
•
Power indicator p.71
Flashes or lights in different colours to
indicate the operating status of the projector.
•
(Warning) indicator p.72
The colour and ON status (illuminated/
flashing) indicates problems with the
projector.
•
Front adjustable foot p.38
Extend and retract to adjust the projection
angle when the projector is placed on a
surface such as a shelf.
•
Lens cover
Attach when not using the projector to
prevent the lens from becoming dirty or
damaged.
•
Foot adjust button p.38
Another foot adjust button is located on
the right side.
Press both foot adjust buttons when
extending and retracting the front
adjustable feet.
•
Air exhaust vent
•
Focus ring p.37
Adjusts the image focus.
•
Speaker
