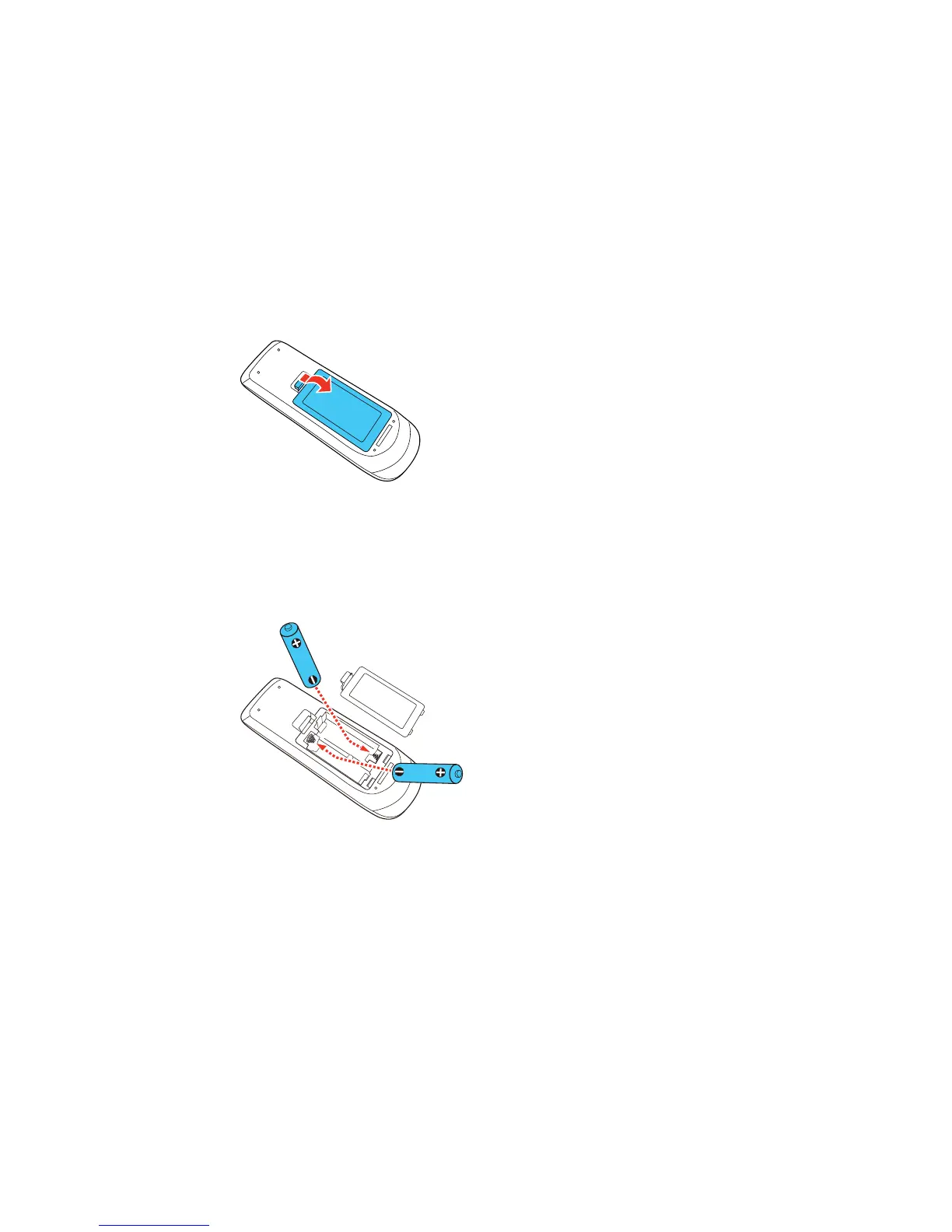

1.
Remove
the
battery
cover
as
shown.
2.
Remove
the
old
batteries.
Warning:
If
the
battery
fluid
has
leaked,
wipe
it
away
with
a
soft
cloth
and
avoid
getting
the
fluid
on
your
hands.
If
it
gets
on
your
hands,
wash
them
immediately
to
avoid
injury.
3.
Insert
the
batteries
with
the
+
and
–
ends
facing
as
shown.
162
161
163
Table of Contents
Table of Contents
3
EX3240/EX5240/EX5250 Pro/Ex7240 Pro/Ex9200 Pro/Vs240/Vs340/Vs345 User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
13
Optional Equipment and Replacement Parts
14
Warranty and Registration Information
15
Notations Used in the Documentation
15
Where to Go for Additional Information
15
Projector Part Locations
16
Projector Parts - Front/Top
17
Projector Parts - Rear
19
Projector Parts - Base
21
Projector Parts - Control Panel
22
Projector Parts - Remote Control
24
Setting up the Projector
26
Projector Placement
26
Projector Setup and Installation Options
26
Projection Distance
28
Projector Connections
31
Connecting to Computer Sources
32
Connecting to a Computer for USB Video and Audio
32
Connecting to a Computer for VGA Video
34
Connecting to a Computer for HDMI Video and Audio
35
Connecting to a Computer for USB Mouse Control
35
Connecting to a Computer for Sound
36
Connecting to Video Sources
37
Connecting to an HDMI Video Source
37
Connecting to an MHL-Compatible Device
38
Connecting to a Component-To-VGA Video Source
39
Connecting to an S-Video Video Source
40
Connecting to a Composite Video Source
41
Connecting to a Video Source for Sound
42
Connecting to External USB Devices
42
USB Device Projection
43
Connecting a USB Device or Camera to the Projector
43
Selecting the Connected USB Source
44
Disconnecting a USB Device or Camera from the Projector
45
Connecting to a Document Camera
45
Installing Batteries in the Remote Control
46
Opening the Lens Cover
48
Using the Projector on a Network
50
Wireless Network Projection
50
Connecting Directly to a Laptop or Computer
51
Connecting Directly to a Smartphone or Tablet
54
Wireless Network Security Guidelines
57
Installing the Wireless LAN Module
57
Using Quick Wireless Connection (Windows Only)
59
Selecting Wireless Network Settings Manually
61
Wireless LAN Menu Settings
64
Selecting Wireless Network Settings in Windows
65
Selecting Wireless Network Settings in os X
65
Setting up Wireless Network Security
65
Wireless Security Menu Settings
66
Setting up Projector Network E-Mail Alerts
67
Network Projector E-Mail Alert Messages
68
Setting up Monitoring Using SNMP
69
Controlling a Networked Projector Using a Web Browser
70
Using Basic Projector Features
73
Turning on the Projector
73
Turning off the Projector
75
Selecting the Language for the Projector Menus
77
Adjusting the Image Height
78
Image Shape
80
Correcting Image Shape with the Horizontal Keystone Slider
80
Correcting Image Shape with the Keystone Buttons
81
Correcting Image Shape with Quick Corner
84
Resizing the Image
86
Focusing the Image Using the Focus Ring
87
Remote Control Operation
88
Using the Remote Control as a Wireless Mouse
89
Using the Remote Control as a Pointer
90
Selecting an Image Source
91
Projection Modes
93
Changing the Projection Mode Using the Remote Control
93
Changing the Projection Mode Using the Menus
94
Image Aspect Ratio
95
Changing the Image Aspect Ratio
95
Available Image Aspect Ratios
96
Color Mode
97
Changing the Color Mode
97
Available Color Modes
98
Turning on Auto Iris
98
Controlling the Volume with the Volume Buttons
99
Projecting a PC Free Presentation
100
Supported PC Free File Types
100
Starting a PC Free Slide Show
101
Starting a PC Free Movie Presentation
103
PC Free Display Options
105
Adjusting Projector Features
107
Shutting off the Picture and Sound Temporarily
107
Stopping Video Action Temporarily
108
Zooming into and out of Images
108
Projector Security Features
109
Password Security Types
110
Setting a Password
110
Selecting Password Security Types
111
Entering a Password to Use the Projector
112
Saving a User's Logo Image to Display
113
Locking the Projector's Buttons
116
Unlocking the Projector's Buttons
116
Installing a Security Cable
117
Projector Identification System for Multiple Projector Control
117
Setting the Projector ID
118
Setting the Remote Control ID
118
Matching Multiple-Projector Display Quality
119
Projecting Two Images Simultaneously
120
Copying Menu Settings between Projectors
122
Saving Settings to a USB Flash Drive
122
Transferring Settings from a USB Flash Drive
124
Saving Settings to a Computer
125
Transferring Settings from a Computer
127
Adjusting the Menu Settings
131
Using the Projector's Menus
131
Image Quality Settings - Image Menu
133
Input Signal Settings - Signal Menu
136
Projector Feature Settings - Settings Menu
138
Projector Setup Settings - Extended Menu
141
Projector Network Settings - Network Menu
144
Projector Setup Settings - ECO Menu
145
Projector Information Display - Info Menu
147
Event ID Code List
148
Projector Reset Options - Reset Menu
149
Maintaining and Transporting the Projector
151
Projector Maintenance
151
Cleaning the Lens
151
Cleaning the Projector Case
152
Air Filter and Vent Maintenance
152
Cleaning the Air Filter and Vents
153
Replacing the Air Filter
153
Projector Lamp Maintenance
156
Replacing the Lamp
156
Resetting the Lamp Timer
160
Replacing the Remote Control Batteries
161
Transporting the Projector
163
Solving Problems
164
Projection Problem Tips
164
Projector Light Status
165
Using the Projector Help Displays
168
Solving Image or Sound Problems
168
Solutions When no Image Appears
169
Solutions When Image Is Incorrect Using the USB Display Function
170
Solutions When "No Signal" Message Appears
170
Displaying from a PC Laptop
171
Displaying from a Mac Laptop
171
Solutions When "Not Supported" Message Appears
171
Solutions When Only a Partial Image Appears
172
Solutions When the Image Is Not Rectangular
172
Solutions When the Image Contains Noise or Static
173
Solutions When the Image Is Fuzzy or Blurry
174
Solutions When the Image Brightness or Colors Are Incorrect
175
Solutions to Sound Problems
175
Solving Projector or Remote Control Operation Problems
176
Solutions to Projector Power or Shut-Off Problems
176
Solutions to Problems with the Remote Control
177
Solutions to Password Problems
178
Solving Network Problems
178
Solutions When You Cannot Access the Projector through the Web
179
Solutions When Network Alert E-Mails Are Not Received
179
Where to Get Help
180
Technical Specifications
181
General Projector Specifications
181
Projector Lamp Specifications
186
Remote Control Specifications
186
Projector Dimension Specifications
186
Projector Electrical Specifications
187
Projector Environmental Specifications
188
Projector Safety and Approvals Specifications
188
Supported Video Display Formats
188
USB Display System Requirements
192
Notices
194
Recycling
194
Important Safety Information
194
Important Safety Instructions
195
Restriction of Use
197
FCC Compliance Statement
198
Open Source Software License
199
Trademarks
248
Copyright Notice
249
A Note Concerning Responsible Use of Copyrighted Materials
249
Copyright Attribution
249
