3. Connect the other end of the cable to the projector's HDMI /MHL port.
Note: The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker.
Parent topic: Connecting to Video Sources
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the projector using an optional
component-to-VGA video cable. Depending on your component ports, you may need to use an adapter
cable along with a component video cable.
1. Connect the component connectors to your video source's color-coded component video output
ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors
to your component video cable.

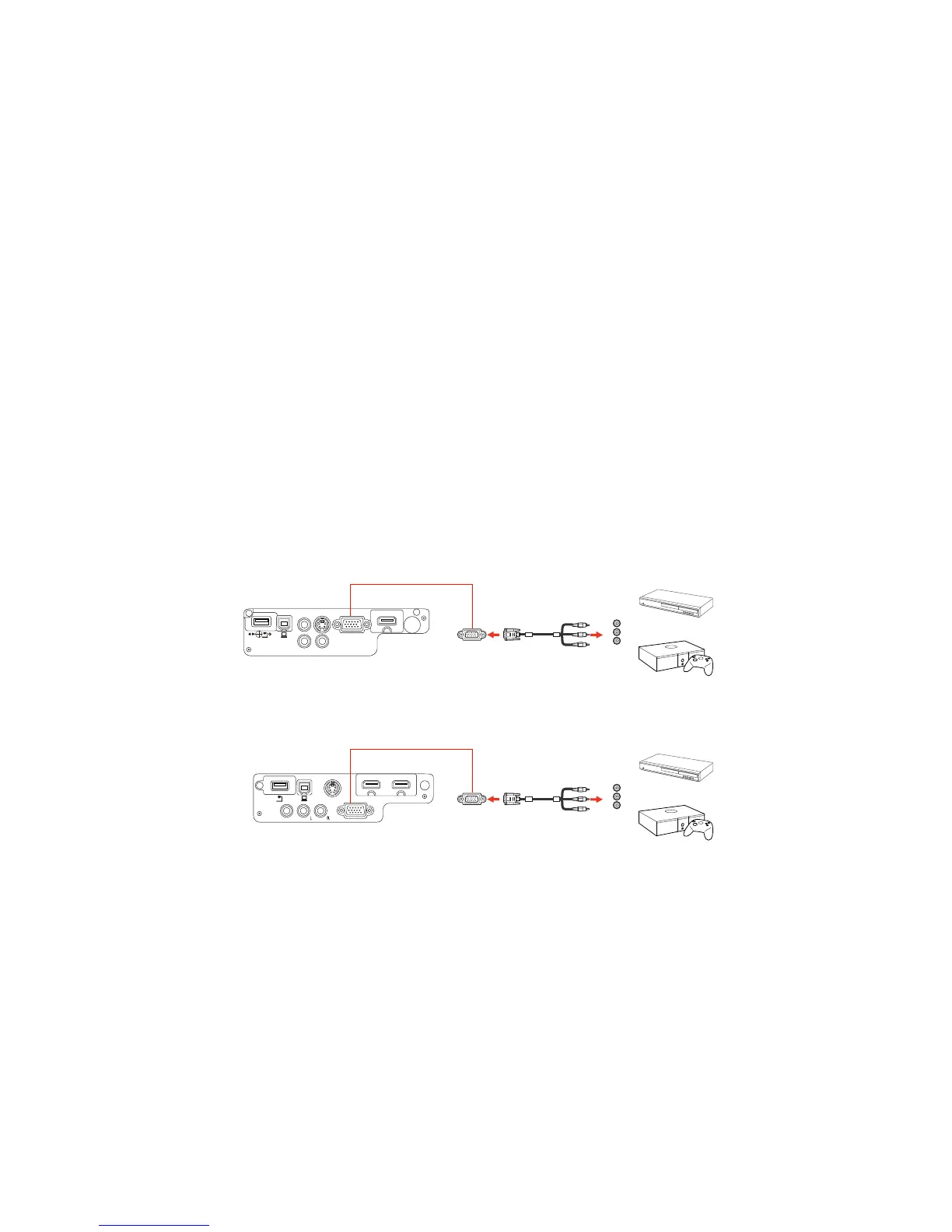

2. Connect the VGA connector to a Computer port on the projector.
EX3240/EX5240/EX5250 Pro/EX7240 Pro/VS240/VS340/VS345
EX9200 Pro
3. Tighten the screws on the VGA connector.
39
