13 Focus ring
14 Zoom ring (EX5240/EX5250 Pro/EX7240 Pro/EX9200 Pro/VS340/VS345)
15 Lamp cover
Parent topic: Projector Part Locations

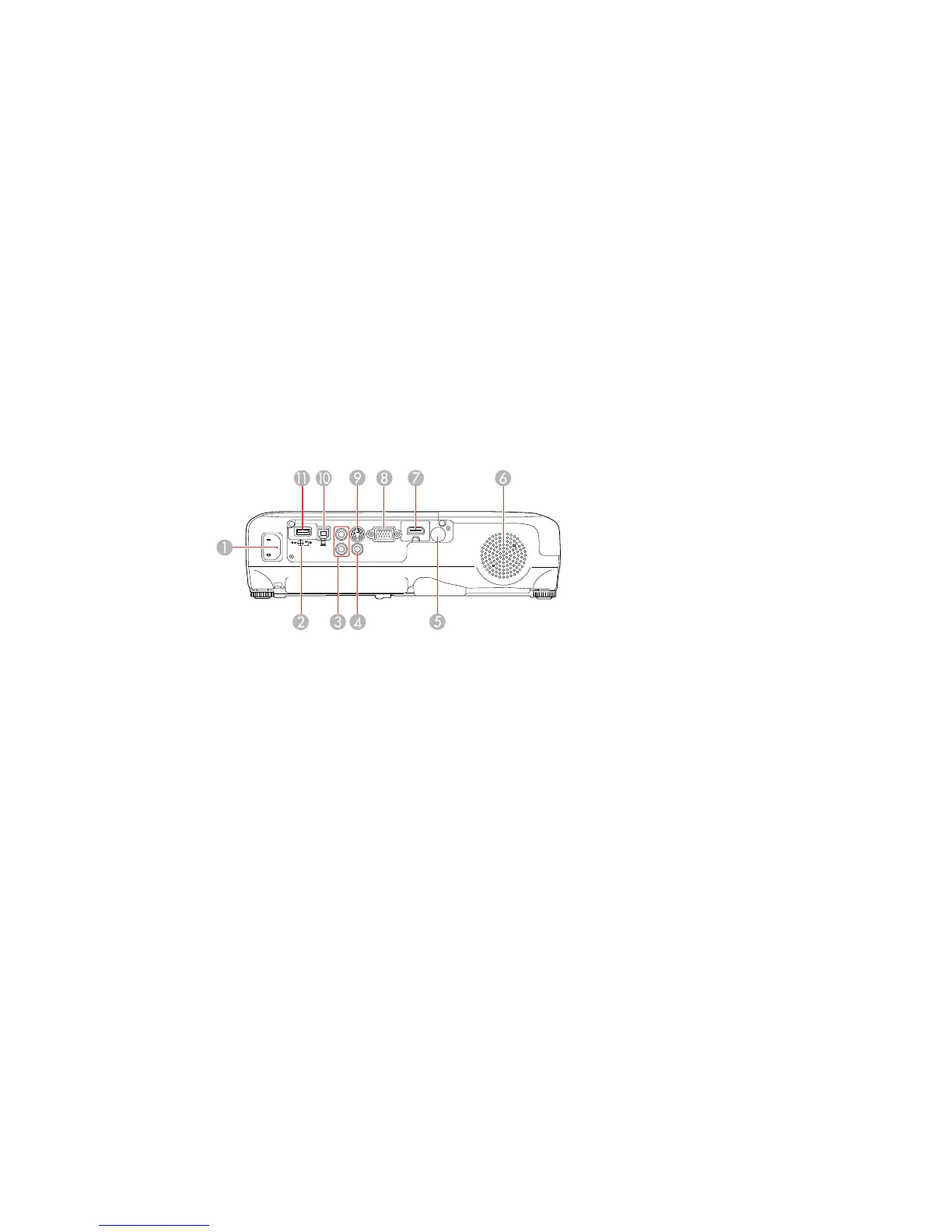

Projector Parts - Rear
EX3240/EX5240/EX5250 Pro/EX7240 Pro/VS240/VS340/VS345
1 AC input port
2 Wireless LAN module cover screw (EX3240/EX5240/EX5250 Pro/VS240/VS340/VS345)
3 Audio ports
4 Video port
5 Remote receiver
6 Speaker
7 HDMI port (EX3240/EX5240/EX5250 Pro/VS240/VS340/VS345)
HDMI/MHL port (EX7240 Pro)
8 Computer port
9 S-Video port
10 USB-B port
19
