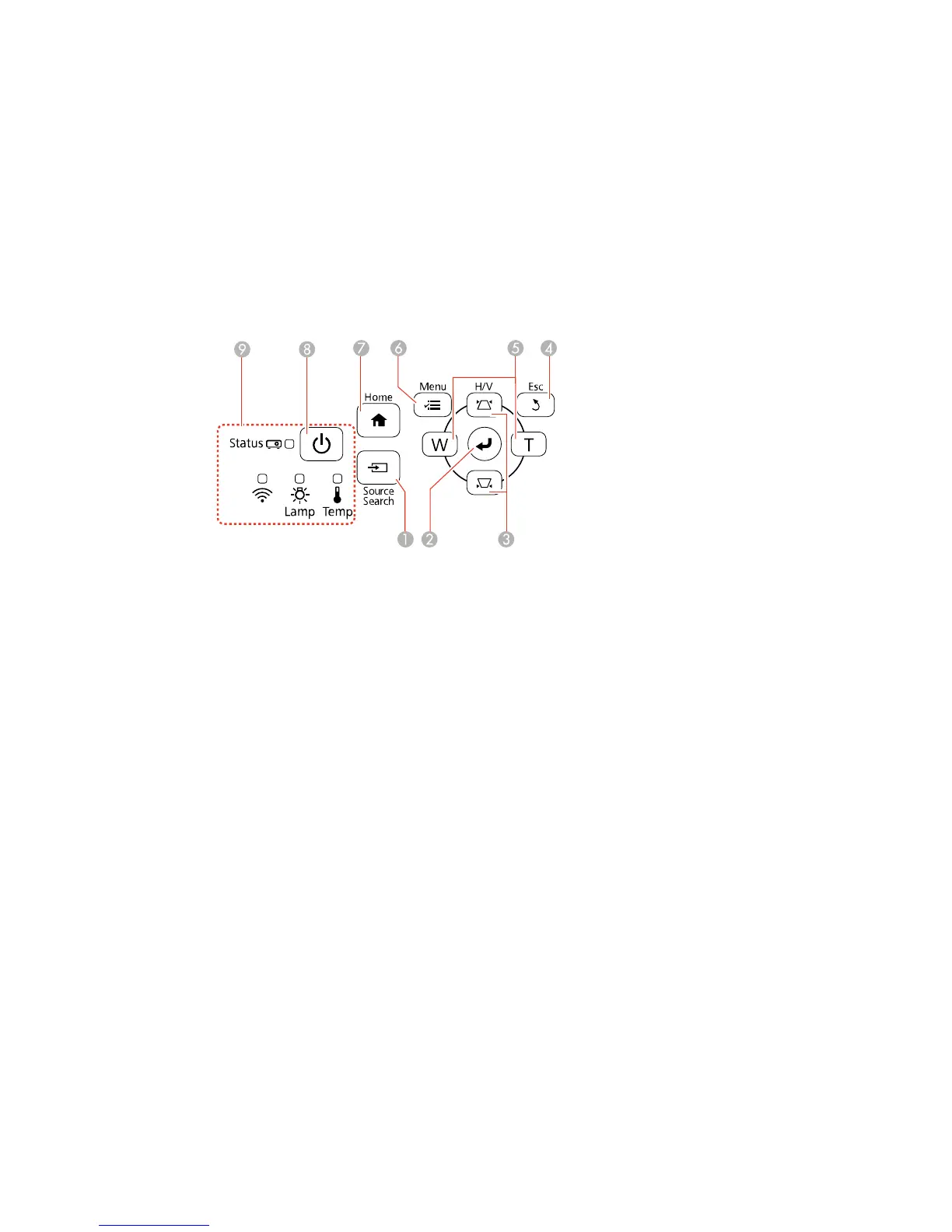

EX3240/VS240
1 Source Search button (searches for connected sources)
2 Enter button (selects options)
3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Esc button (cancels/exits functions)
5 W (Wide)/T (Tele) buttons (adjust projected image size), horizontal keystone adjustment buttons
(adjust screen shape), and arrow buttons
6 Menu button (accesses projector menu system)
7 Home button (accesses source selection, projector help information, and other features)
8 Power button and light
9 Projector status lights
Parent topic: Projector Part Locations
Related references
Projector Light Status
23
