Epson L210 Service Manual

Confidential
Appendix Protection for Transportation 75
L350/L300/L355/L210/L110 Series Revision B
5.3.2 Securing the Paper Support Assy
 Purpose
To prevent damaging the Paper Support Assy by the shock during transportation.
 Risks if it is not performed
The Paper Support Assy will be scratched and the abrasion powder will be produced due to the shock during
transportation.
 Preparation
Prepare two pieces of strong tape (length: 85 mm, width: 22 mm, fold one end 5 mm).
 Method
Attach strong tape on both sides of the Paper Support Assy and secure the Paper Support Assy to the Housing
Right/Housing Left.

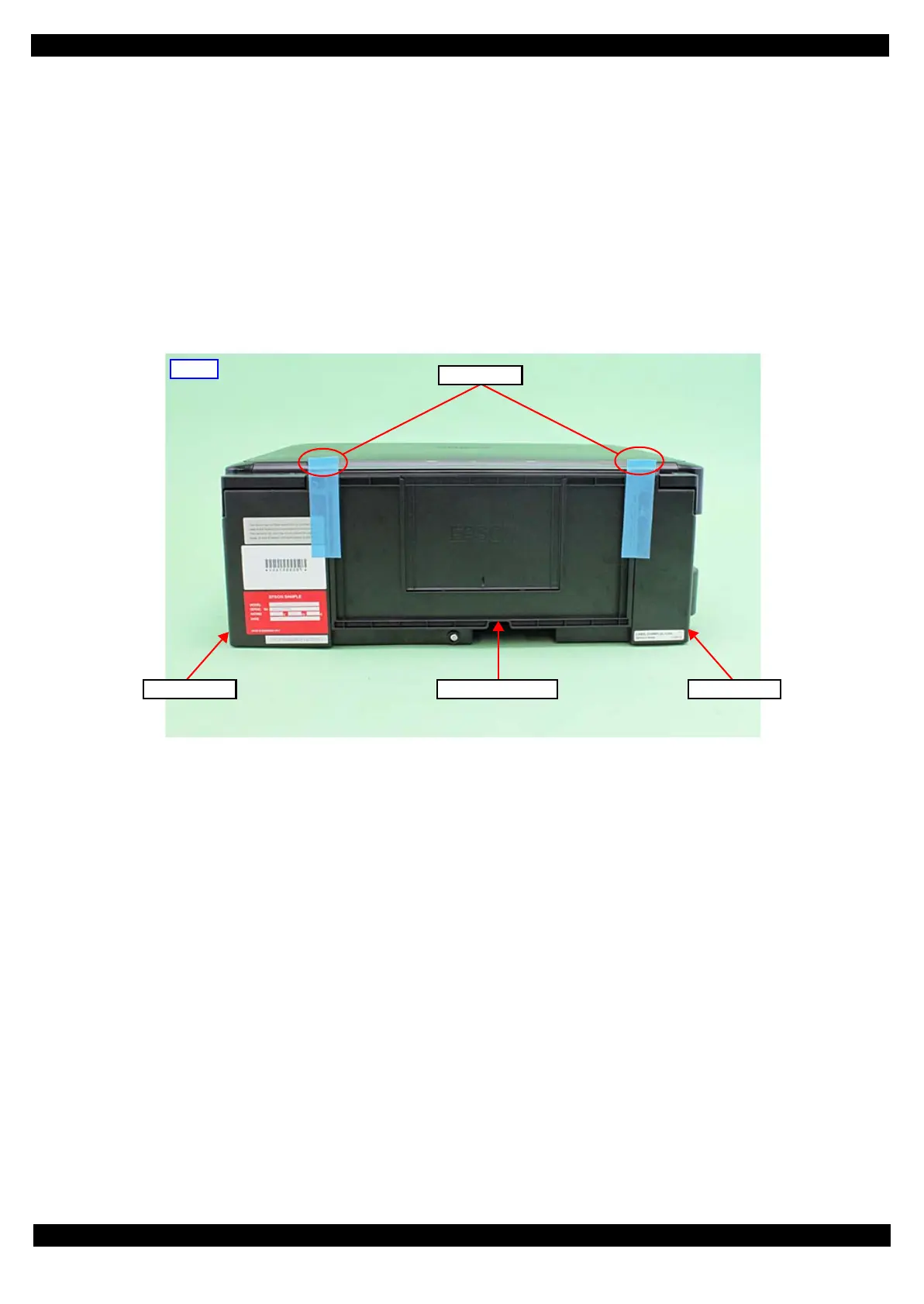

Figure 5-4. Securing the Paper Support Assy
Rear
Folded ends
Paper Support Assy Housing LeftHousing Right

Epson L210 Specifications

General

Functions	Print, Scan, Copy
Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed color image scanner
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Print Technology	On-demand inkjet
Paper Capacity	50 sheets
Ink Type	Dye Ink
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, DL
Ink Tank Capacity	70 ml (each color)
Operating System Compatibility	Windows XP/Vista/7/8, Mac OS X 10.6.8 or later
Dimensions (W x D x H)	472 x 300 x 145 mm
