Epson L210 Service Manual

Confidential
Appendix Protection for Transportation 76
L350/L300/L355/L210/L110 Series Revision B
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
 Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
 Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
 Preparation

Ink Supply Tank Assy
Prepare three pieces of strong tape (length: 80 mm, width: 22 mm, fold one end 5 mm).
 Top Cover
Prepare two pieces of strong tape (length: 55 mm, width: 22 mm, fold one end 5 mm).
 Method

Ink Supply Tank Assy
Align the unfolded end of strong tape (x3) with the edge of the Housing Right, and attach the tape along the shape
of the Housing Right/Ink Supply Tank Assy through the openings between the Air Release Hole Caps.
 Top Cover
Secure both sides of the Top Cover with strong tape (x2).

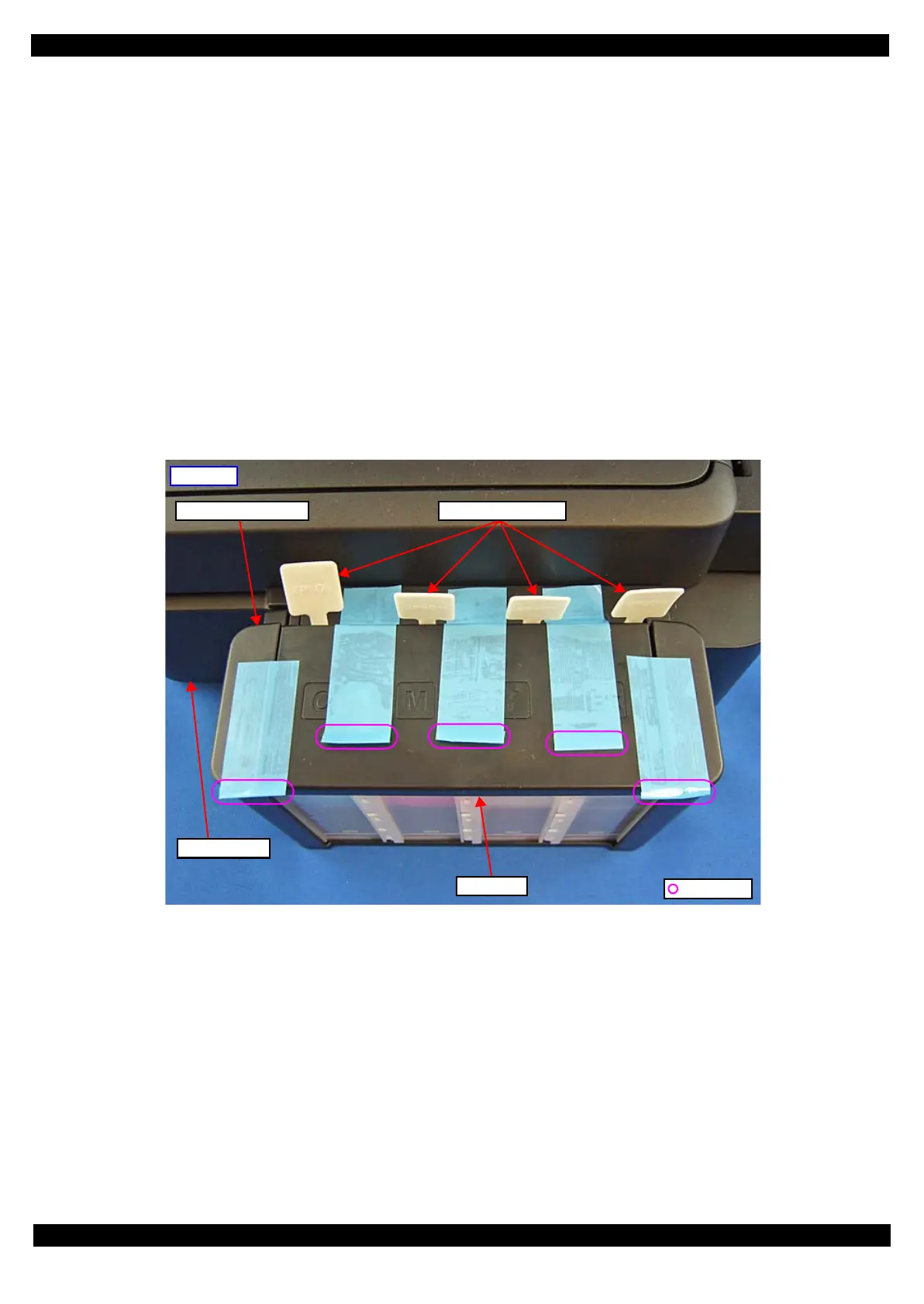

Figure 5-5. Securing the Ink Supply Tank Assy/Top Cover
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends
Air Release Hole Caps

Epson L210 Specifications

General

Functions	Print, Scan, Copy
Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed color image scanner
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Print Technology	On-demand inkjet
Paper Capacity	50 sheets
Ink Type	Dye Ink
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, DL
Ink Tank Capacity	70 ml (each color)
Operating System Compatibility	Windows XP/Vista/7/8, Mac OS X 10.6.8 or later
Dimensions (W x D x H)	472 x 300 x 145 mm
