Epson L210 Service Manual

Confidential
Disassembly/Reassembly Overview 18
L350/L300/L355/L210/L110 Series Revision B
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

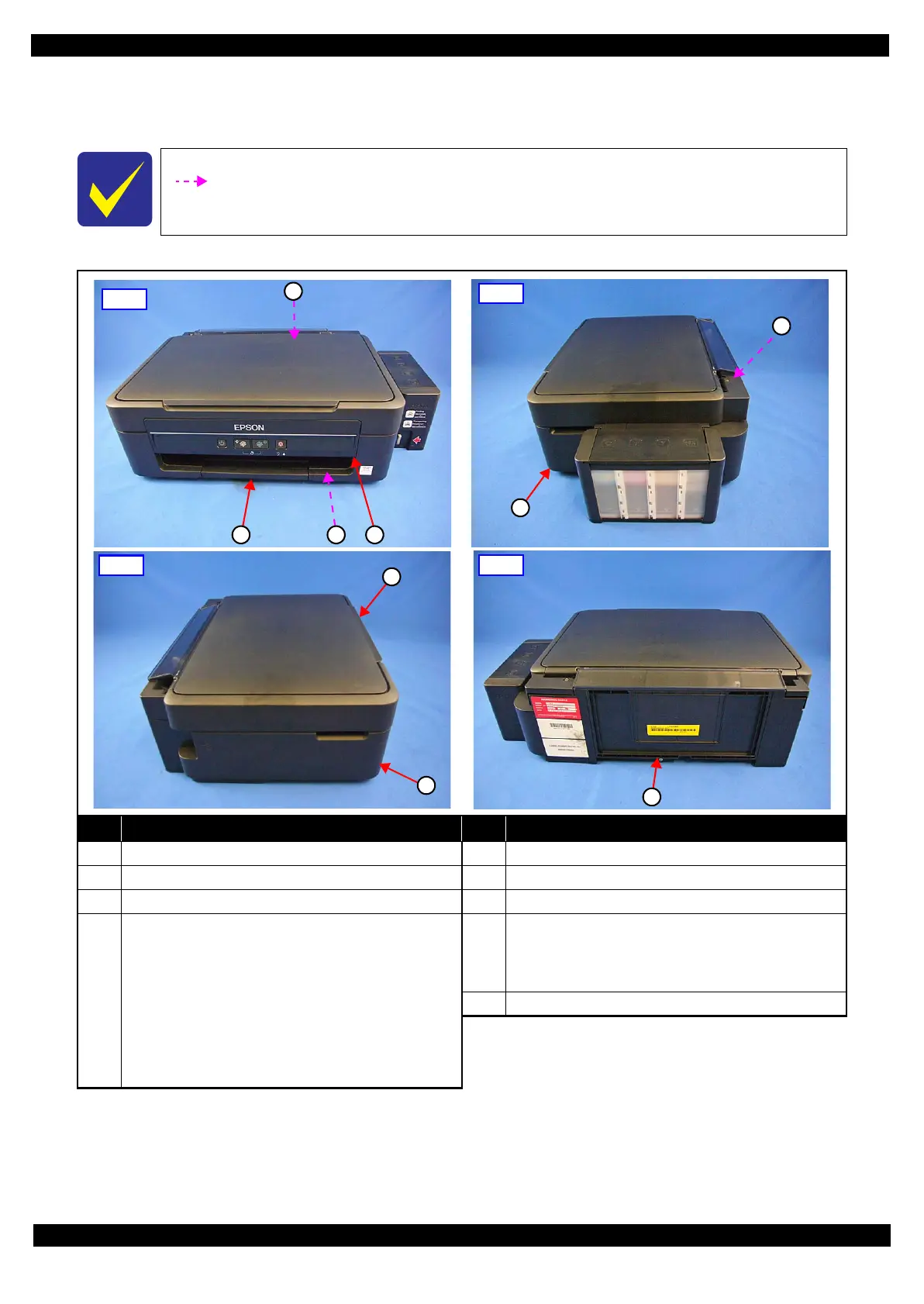

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p32) (L350/L355/L210 Series only) 5 Hinge (p36) (L350/L355/L210 Series only)
2 Tray Front Assy (p32) 6 Housing Right (p36) (L350/L355/L210 Series only)
3 Frame Base Assy (p34) 7 Housing Left (p32) (L350/L355/L210 Series only)
4
Panel Unit
• L355 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
• L350/L210 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
8
Scanner Unit (p32) (L350/L355/L210 Series only)
Scanner Housing Upper (p36) / Scanner Carriage Unit
(p36) / Scanner Housing Lower (p36) / CIS Module
Unit (p36) / Scanner Motor (p36)
9 Paper Support Assy (p32)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L210 Specifications

General

Functions	Print, Scan, Copy
Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed color image scanner
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Print Technology	On-demand inkjet
Paper Capacity	50 sheets
Ink Type	Dye Ink
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, DL
Ink Tank Capacity	70 ml (each color)
Operating System Compatibility	Windows XP/Vista/7/8, Mac OS X 10.6.8 or later
Dimensions (W x D x H)	472 x 300 x 145 mm
