Epson L210 Service Manual

Confidential
Disassembly/Reassembly Overview 19
L350/L300/L355/L210/L110 Series Revision B

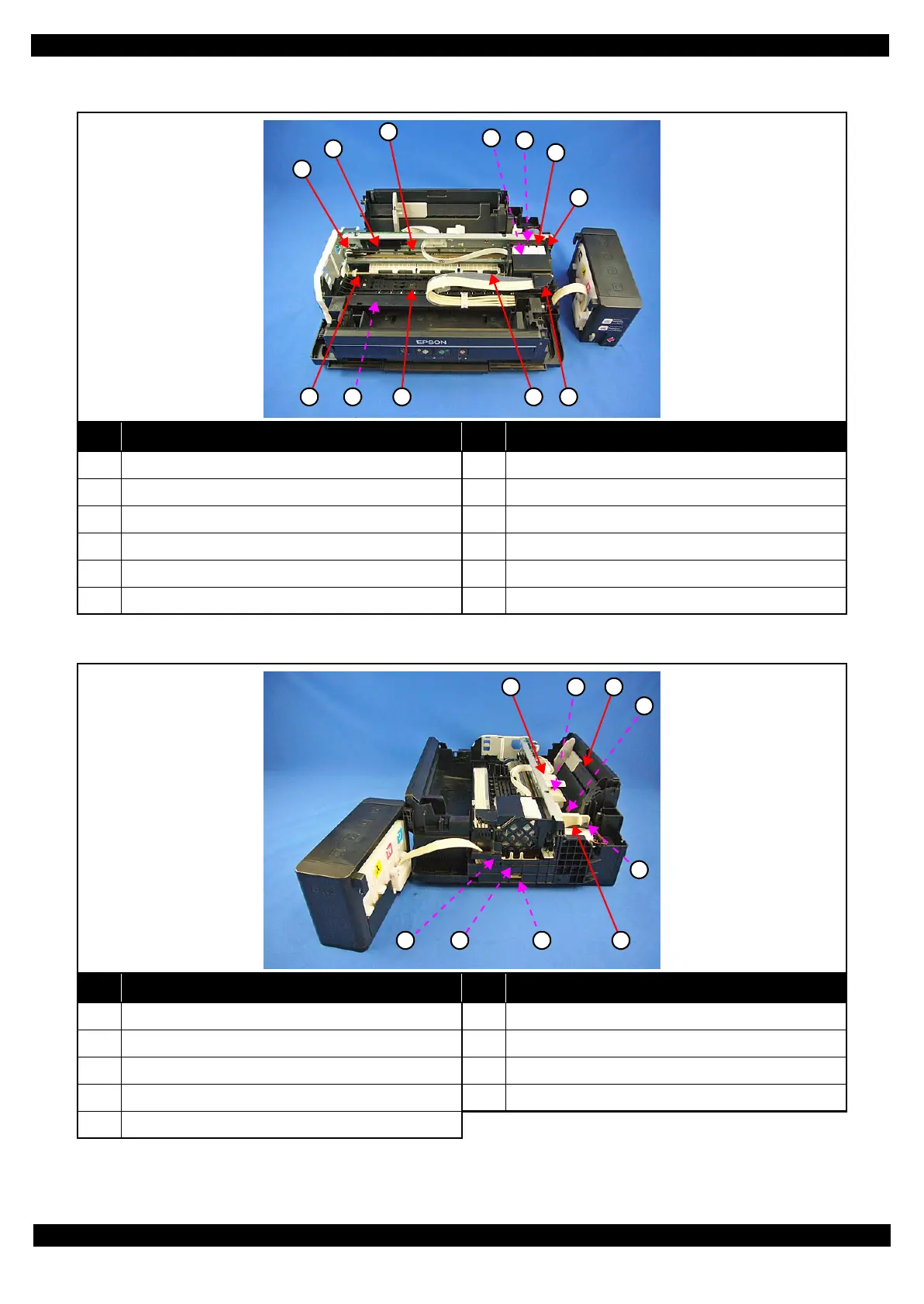

 Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p34) 7 CR Unit (p38)
2 CR Scale (p34) 8 PF Roller Unit (p38)
3 CR Timing Belt (p38) 9 Star Wheel Holder Assy (p36)
4 Printhead (p32) 10 Paper Guide Front Unit (p32)
5 CR Encoder Sensor (p38) 11 Paper Guide Upper Assy (p38)
6 Adapter (p36) 12 Adapter Cover (p36)
No. Name No. Name
1 LD Roller Cover (p34) 6 Cap Lever (p36)
2 LD Roller Assy (p34) 7 Cap Assy (p36)
3 Hopper (p34) 8 Porous Pad for Cap Assy (p36)
4 Retard Roller Assy (p32) 9 Pump Unit (p38)
5 Paper Back Lever (p32)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2

Epson L210 Specifications

General

Functions	Print, Scan, Copy
Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed color image scanner
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Print Technology	On-demand inkjet
Paper Capacity	50 sheets
Ink Type	Dye Ink
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, DL
Ink Tank Capacity	70 ml (each color)
Operating System Compatibility	Windows XP/Vista/7/8, Mac OS X 10.6.8 or later
Dimensions (W x D x H)	472 x 300 x 145 mm
