Disassembly/Reassembly Overview 20
L350/L300/L355/L210/L110 Series Revision B

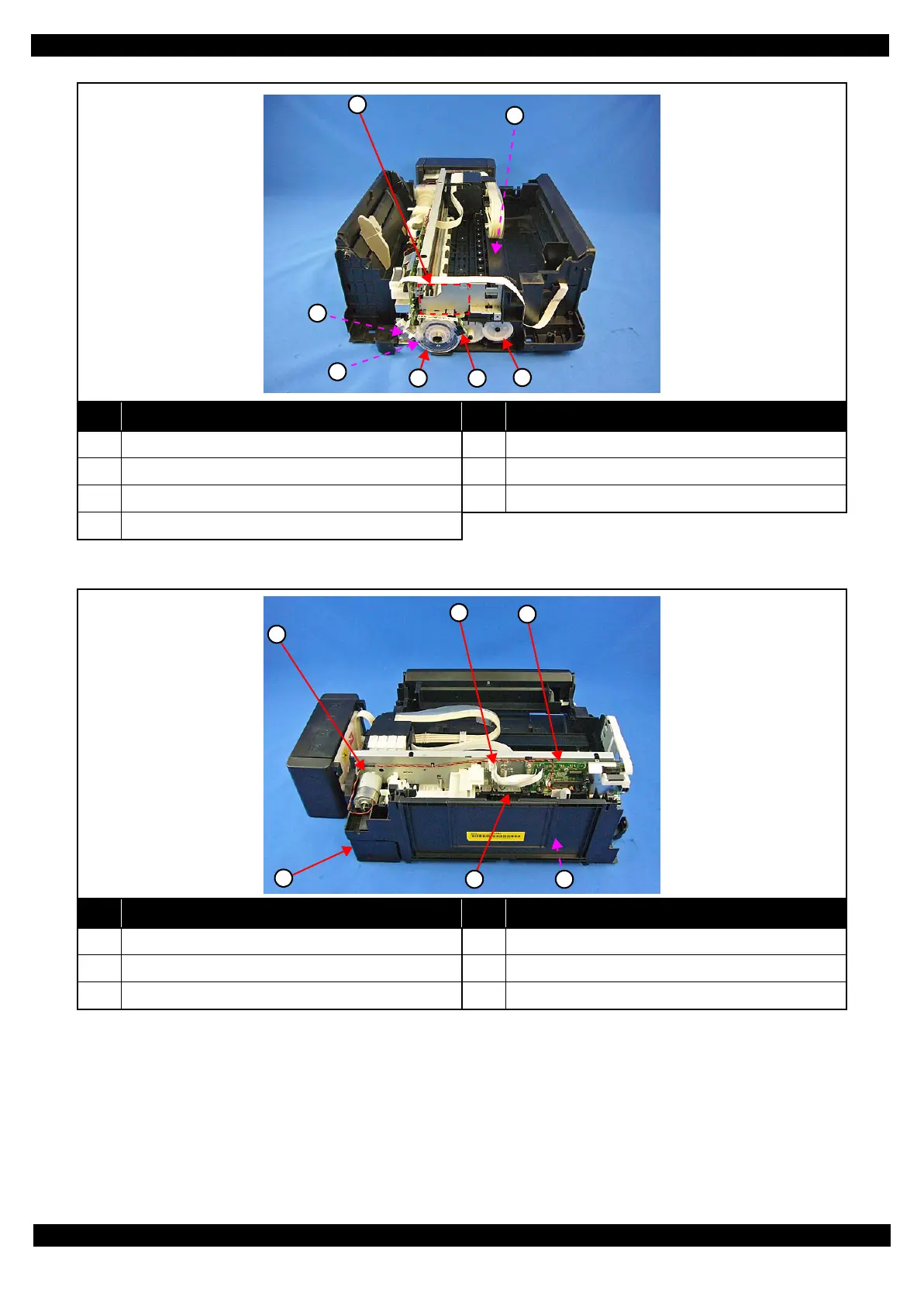

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 Wireless LAN Module (p32) (L355 Series only) 5 PF Scale (p35)
2 EJ Roller (p36) 6 PF Encoder Sensor (p35)
3 PF Motor Assy (p38) 7 EJ Roller Gear (p32)
4 PF Timing Belt (p35)
No. Name No. Name
1 CR Motor (p34) 4 Waste Ink Pad Assy (p32)
2 Head FFC (p38) 5 PE Sensor Lever (p34)
3 Main Board (p34) 6 PS Unit (p32)
3
1
2
7
4
5
6
1
2
4
5 6
3
