Epson L220 Service Manual

Confidential
Disassembly/Reassembly Overview 18
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

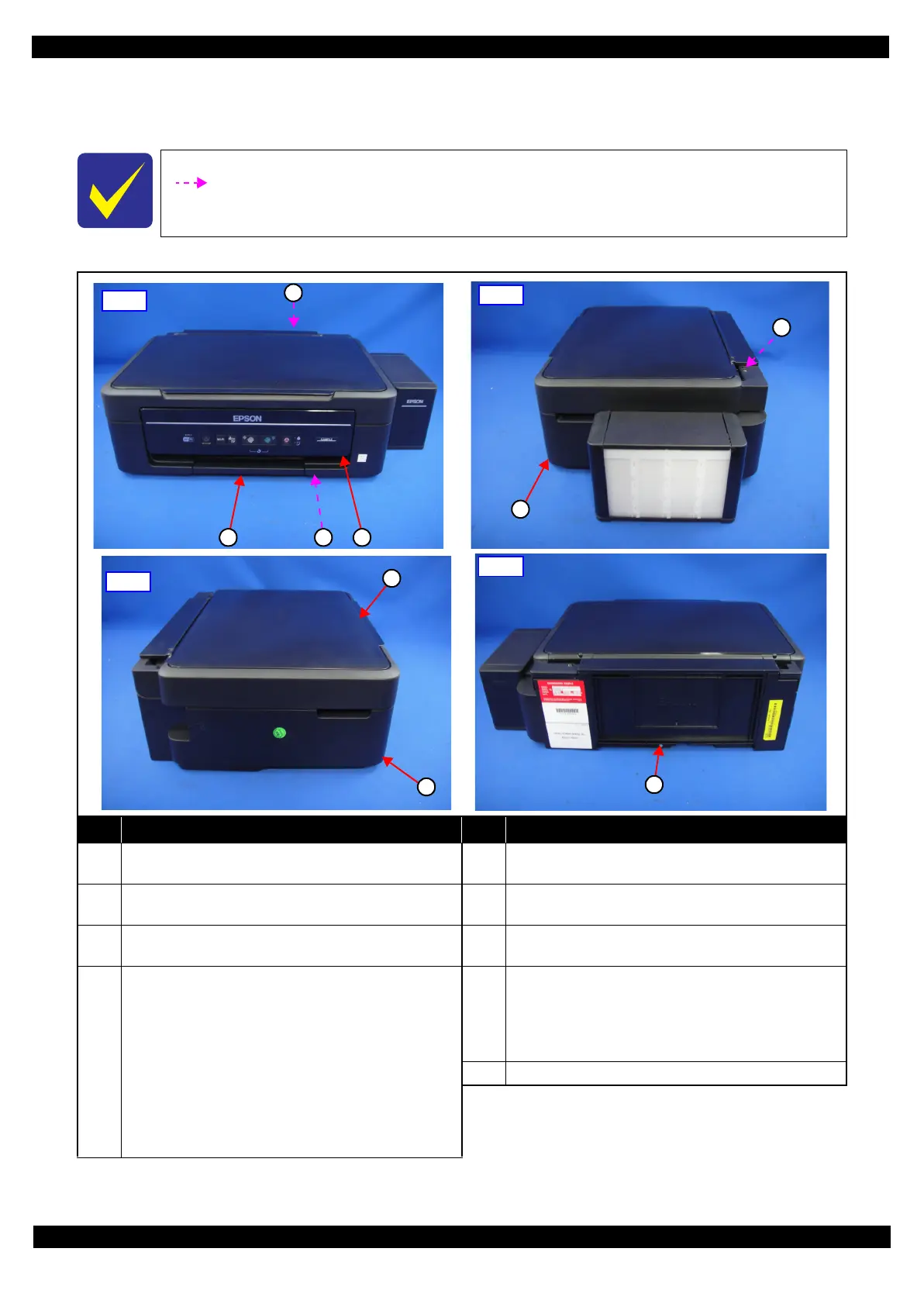

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1
Housing Rear (p33) (L365/L366,L360/L362,L220/L222
Series only)
5
Hinge (p37) (L365/L366,L360/L362,L220/L222 Series
only)
2 Tray Front Assy (p33) 6
Housing Right (p37) (L365/L366,L360/L362,L220/L222
Series only)
3
Frame Base Assy (p35)
7
Housing Left (p33) (L365/L366,L360/L362,L220/L222
Series only)
4
Panel Unit
• L365/L366 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
• L360/L362,L220/L222 Series (p 35)
Panel Board Assy (p38) / Panel Buttons (p38) /
Panel Housing Upper Assy (p38) / Panel Housing
Lower Assy (p38)
8
Scanner Unit (p33) (L365/L366,L360/L362,L220/L222
Series only)
Scanner Housing Upper (p37) / Scanner Carriage Unit
(p37) / Scanner Housing Lower (p37) / CIS Module
Unit (p37) / Scanner Motor (p37)
9 Paper Support Assy (p33)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L220 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (ISO/IEC 24734) mono	7 ipm
Print speed (ISO/IEC 24734) color	3.5 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Scanner type	-
Scan speed (black)	2.4 ppm
Scan speed (color)	9.5 ppm
Image formats supported	BMP, JPEG, TIFF
Document formats supported	PDF
Optical scanning resolution	600 x 1200 DPI
Maximum copy resolution	- DPI
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Product color	Black
Built-in display	No
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	- sheets
Total output capacity	30 sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Photo paper sizes	10x15, 13x18 cm
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (ready)	3.8 W
Power consumption (sleep)	0.8 W
Power consumption (copying)	12 W
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Yes
Standard interfaces	USB
Internal memory	- MB
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	535 mm
Package width	390 mm
Package height	210 mm
Package weight	5960 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
