Epson L220 Service Manual

Confidential
Adjustment Mechanism Adjustment / Check 63
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
3.3.2 CR/PF Belt Tension Check
This section describes the CR/PF Belt tension check.
 Tools

Sonic tension meter
 Plastic tweezers
 Confirmation procedure
Checking the CR Timing Belt Tension
1. Move the CR Unit to 0-digit side.
2. Set the following parameters to the sonic tension meter:

Weight: 1.1 g/m
 Width: 3.5 mm
 Span: 326 mm
3. Bring the microphone of the sonic tension meter close to the position shown in Figure 3-2.
4. Press the “MEASURE” button of the sonic tension meter and flip the upper of the CR Timing Belt with
plastic tweezers and measure the tension of the belt three times.
5. Check the average of the measured values falls within the standard range.

Within the standard range: the CR Timing Belt tension check is complete.
 Out of the standard range: replace the unit with a new/refurbished one.

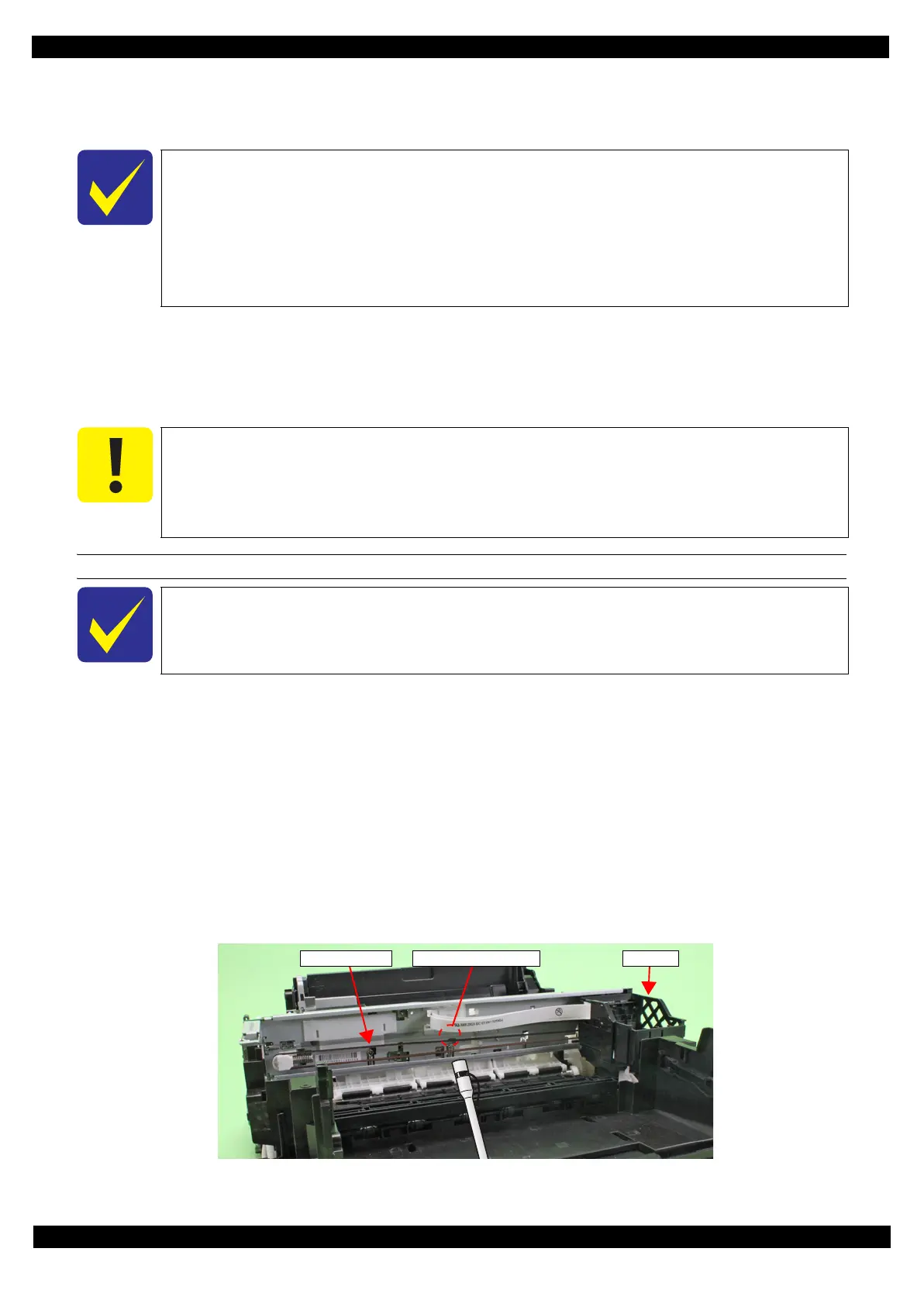

Figure 3-2. Checking the CR Timing Belt Tension
 This printer is designed so that the each tension of the CR Timing Belt and PF Timing
Belt fall within the expected range if you correctly reassemble the unit according to this
manual. However, deformation of any related part(s) can cause improper tension of the
belt. In such case, replace the unit with a new/refurbished one.
 The standard tension range is as follows:
• CR Timing Belt: 9 ± 1 N
• PF Timing Belt: 5.75 ± 3.25 N
When performing the CR/PF Belt tension check, make sure of the following.
 Bring the microphone of the sonic tension meter within 5 mm from the timing belt but do
not let it touch the belt.
 Flip the timing belt as weak as the sonic tension meter can measure it.
 Be careful not to damage the timing belt when flipping it with the plastic tweezers.
Perform the CR Belt tension check after performing " 3.3.1 Checking the Platen Gap (p61)".
CR Timing Belt Measurement position CR Unit

Epson L220 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (ISO/IEC 24734) mono	7 ipm
Print speed (ISO/IEC 24734) color	3.5 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Scanner type	-
Scan speed (black)	2.4 ppm
Scan speed (color)	9.5 ppm
Image formats supported	BMP, JPEG, TIFF
Document formats supported	PDF
Optical scanning resolution	600 x 1200 DPI
Maximum copy resolution	- DPI
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Product color	Black
Built-in display	No
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	- sheets
Total output capacity	30 sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Photo paper sizes	10x15, 13x18 cm
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (ready)	3.8 W
Power consumption (sleep)	0.8 W
Power consumption (copying)	12 W
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Yes
Standard interfaces	USB
Internal memory	- MB
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	535 mm
Package width	390 mm
Package height	210 mm
Package weight	5960 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
