Epson L220 Service Manual

Confidential

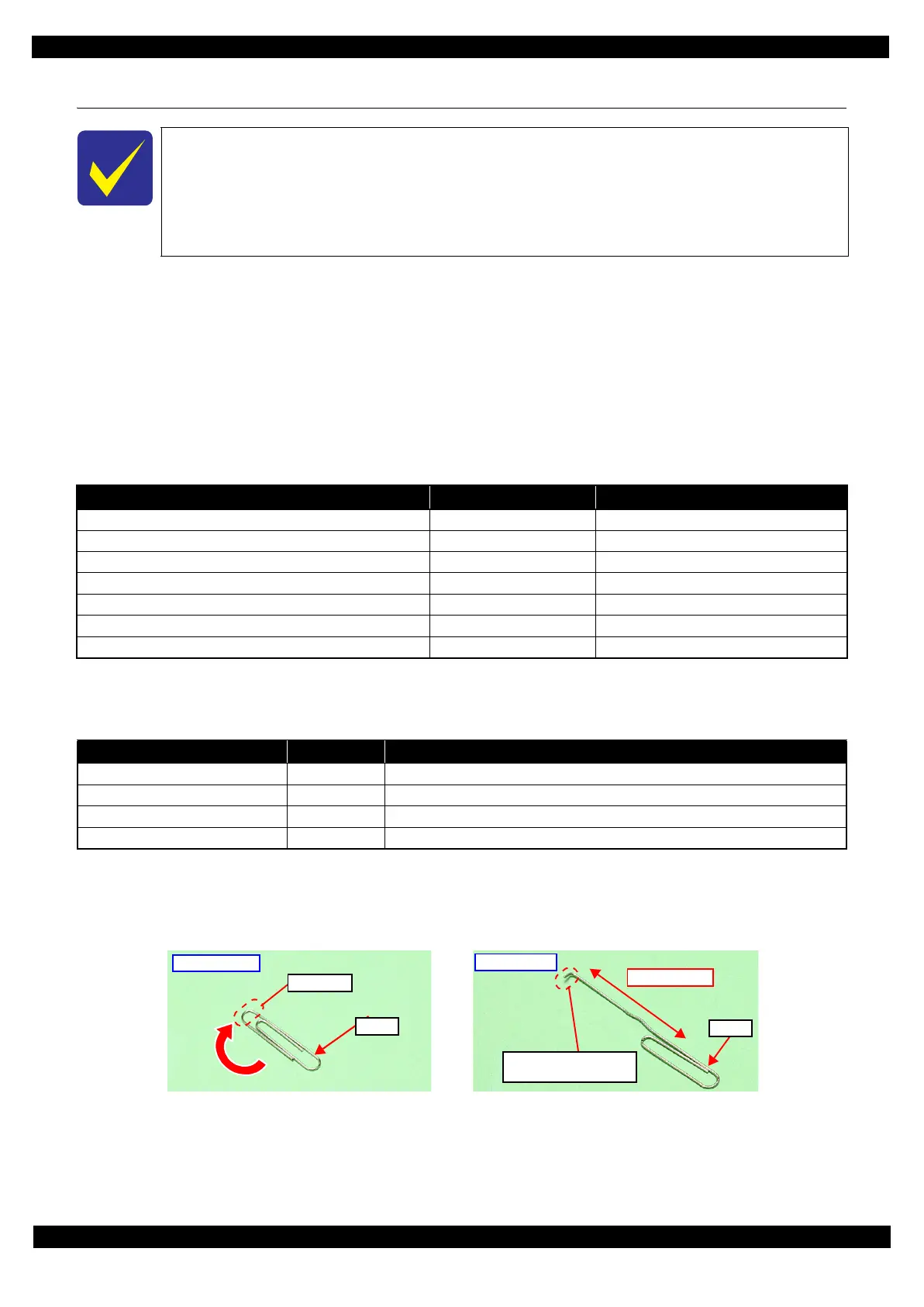

Disassembly/Reassembly Overview 17
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
2.1 Overview
This chapter describes procedures for disassembling the main parts/units of this product. Unless otherwise
specified, disassembled parts/units can be reassembled by reversing the disassembly procedure. See the cautions
or tips for disassembly/reassembly described in "2.3 Detailed Disassembly/Reassembly Procedure for each Part/
Unit (p41)".
Read the "Safety Precautions(p3)" before disassembling and reassembling.
When you have to remove units or parts that are not described in this chapter, see the exploded diagrams of SPI
(Service Parts Information).
2.1.1 Tools
Use only specified tools to avoid damaging the printer.
Note 1: Some of the tools listed above are commercially available.
2: EPSON provides the tools listed with EPSON part code.
2.1.2 Jigs
Note *: If performing the disassembling/reassembling procedure is difficult using tweezers such as when reassembling " Cap Lever/Cap
Assy (p44)", the spring hook jig helps you to remove/attach the spring easier.
2.1.2.1 Making the Spring Hook Jig
Fold a clip (commercial item) as shown in Fig. 2-1.
Figure 2-1. Making the Spring Hook Jig
In this chapter, the product names are called as follows:
 L360/L362 Series:L365/L366
 L360/L362 Series:L360,L363/L362
 L310/L312 Series:L310,L313/L312
 L220/L222 Series:L220/L222
 L130/L132 Series:L130/L132
Name Availability EPSON Part Code
(+) Phillips screwdriver #1 O 1080530
(+) Phillips screwdriver #2 O ---
Flathead screwdriver O ---
Flathead Precision screwdriver #1 O ---
Tweezers O ---
Longnose pliers O ---
Acetate tape --- 1003963
Name Quantity EPSON Part Code
Spring hook jig* 1 Can be made with a commercial item See " Making the Spring Hook Jig (p17)".
Thickness gauge (1.5 mm) 2 Commercially available
Thickness gauge (2.0 mm) 2 Commercially available
Sonic tension meter 1 1294120
Before folding
Fold here
Clip
40 mm or more
After folding
Fold appropriate length
to hitch a spring.
Clip

Epson L220 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (ISO/IEC 24734) mono	7 ipm
Print speed (ISO/IEC 24734) color	3.5 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Scanner type	-
Scan speed (black)	2.4 ppm
Scan speed (color)	9.5 ppm
Image formats supported	BMP, JPEG, TIFF
Document formats supported	PDF
Optical scanning resolution	600 x 1200 DPI
Maximum copy resolution	- DPI
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Product color	Black
Built-in display	No
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	- sheets
Total output capacity	30 sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Photo paper sizes	10x15, 13x18 cm
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (ready)	3.8 W
Power consumption (sleep)	0.8 W
Power consumption (copying)	12 W
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Yes
Standard interfaces	USB
Internal memory	- MB
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	535 mm
Package width	390 mm
Package height	210 mm
Package weight	5960 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
