Epson L220 Service Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 42
Confidential

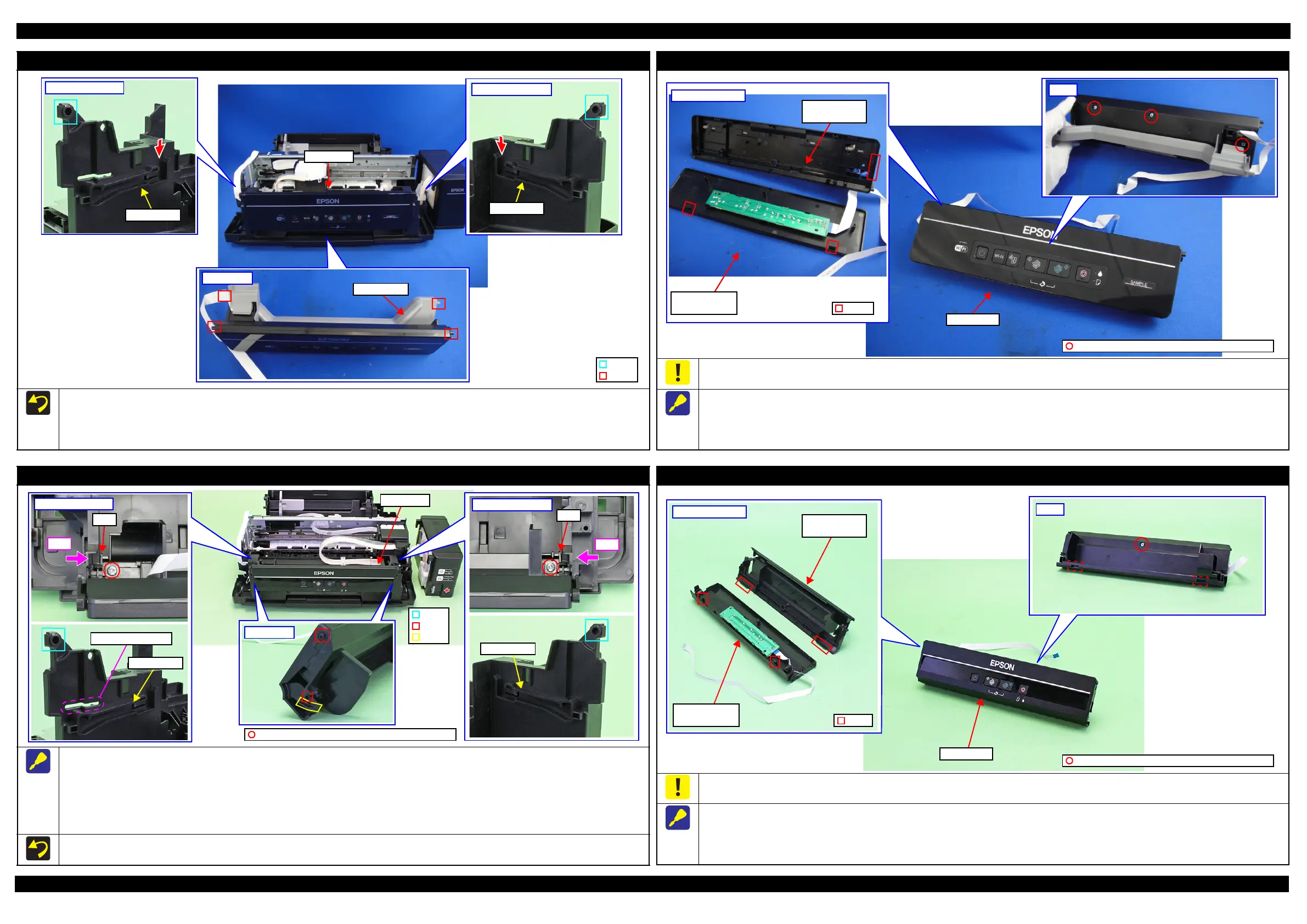

Panel Unit (L365/L366 Series)
When installing the Panel Unit, follow the procedure below.
1. Route the Panel FFC and grounding wire through the holes of the Frame Base. (p 50)
2. Insert the dowels (x2) of the Panel Stand into the grooves on both sides of the Frame Base from the sections indicated in the arrows shown above.
3. Insert the dowels (x2) of the Panel Unit into the holes (x2) of the Frame Base, and secure the Panel Unit to the Frame Base.
Frame Base (left)
Rail section
Frame Base (right)
Rail section
Panel Unit
Panel Stand
Panel Unit
Hole
Dowel
Panel Housing Lower Assy (L365/L366 Series)
Be careful not to damage the hooks (x2) of the Panel Housing Upper Assy when releasing them.
When removing the Panel Housing Lower Assy, follow the procedure below.
1. Remove the screws (x3) on the back of the Panel Unit.
2. Widen the upper side of the Panel Unit slightly to release the hook of the Panel Housing Lower Assy.
3. Release the hooks (x2) of the Panel Housing Upper Assy one by one, and remove the Panel Housing Lower Assy.
Hook
Inside Panel Unit
Panel Housing
Upper Assy
Panel Housing
Lower Assy
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Back
Panel Unit
Panel Unit (L360/L362,L220/L222 Series)
When removing the Panel Unit, follow the procedure below.
1. Remove the two screws that secure the Panel Unit.
2. Pull out the shaft on the both ends of the Panel Unit from the holes of the Frame Base.
3. While pressing the right and left tabs on the rear of the Panel Unit inward, disengage the two dowels and two ribs of the Panel Unit from the rail
of the Frame Base.
4. Pull out the Panel FFC through the hole of the Frame Base, and remove the Panel Unit.
Tighten the screws in the order indicated in the figure above.
Frame Base (left)
Push
Tab
Frame Base (right)
Push
Tab
Panel Unit
Hole
Shaft
Rail section
Rail section
Hole of Frame Base
Panel Unit
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Rib
Panel Housing Lower Assy (L360/L362,L220/L222 Series)
Be careful not to damage the hooks (x2) of the Panel Housing Lower Assy when releasing them.
When removing the Panel Housing Lower Assy, follow the procedure below.
1. Remove the screws (x1) on the back of the Panel Unit.
2. Disengage the two hooks of the Panel Housing Upper Assy one by one.
3. Disengage the two hooks of the Panel Housing Lower Assy, and remove the assy.
Hook
Inside Panel Unit
Panel Housing
Upper Assy
Panel Housing
Lower Assy
C.B.P-TITE SCREW 3x10 F/ZN-3C (6 ± 1 kgf·cm)
Back
Panel Unit

Epson L220 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (ISO/IEC 24734) mono	7 ipm
Print speed (ISO/IEC 24734) color	3.5 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Scanner type	-
Scan speed (black)	2.4 ppm
Scan speed (color)	9.5 ppm
Image formats supported	BMP, JPEG, TIFF
Document formats supported	PDF
Optical scanning resolution	600 x 1200 DPI
Maximum copy resolution	- DPI
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Product color	Black
Built-in display	No
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	- sheets
Total output capacity	30 sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Photo paper sizes	10x15, 13x18 cm
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (ready)	3.8 W
Power consumption (sleep)	0.8 W
Power consumption (copying)	12 W
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Yes
Standard interfaces	USB
Internal memory	- MB
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	535 mm
Package width	390 mm
Package height	210 mm
Package weight	5960 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
