Epson L220 Service Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Confidential
Maintenance Lubrication Points and Instructions 69

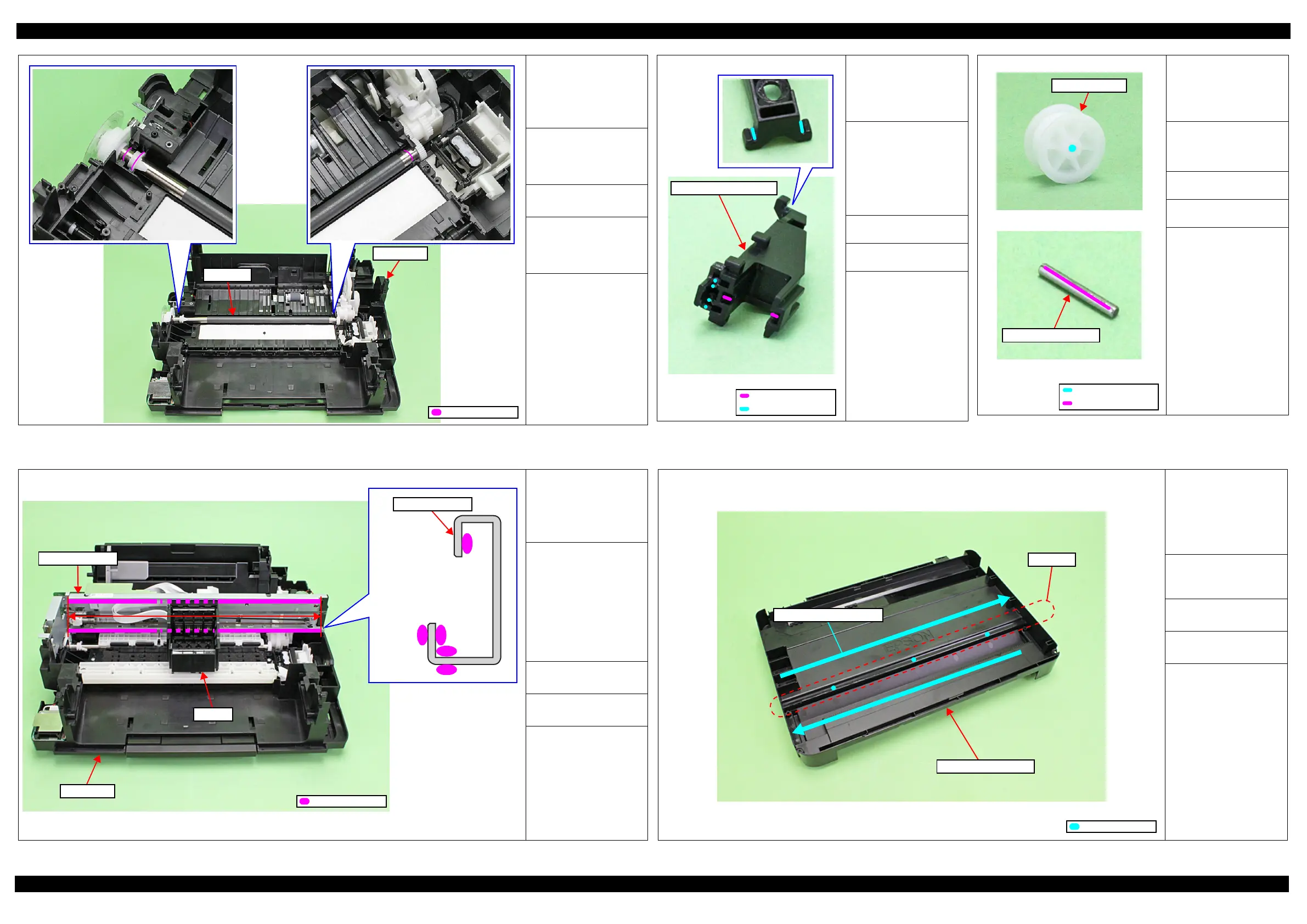

Figure 4-10. Lubrication of the PF Roller
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact points (x3 on the
shaft) on the PF Roller
with the Frame Base
<Type>
G-71
<Application Amount>
On each contact point
around the shaft
(appropriate amount)
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
PF Roller
Application Point
Frame Base
Figure 4-11. Lubrication of the CR Driven Pulley Assy
Figure 4-12. Lubrication of the CR Driven Pulley/
CR Driven Pulley Shaft
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.
On the bearings (x2) of the
CR Driven Pulley on the
CR Driven Pulley Holder
2. Contact points (x6) on
the groove of the CR
Driven Pulley Holder
with the Main Frame
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
 Apply with injector.
 Check the lubrication
condition and apply
grease if necessary.
CR Driven Pulley Holder
2. Application Point
1. Application Point
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.
Shaft hole of the Driven
Pulley.
2. CR Driven Pulley Shaft
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
2. Application Point
1. Application Point
CR Driven Pulley
CR Driven Pulley Shaft
Figure 4-13. Lubrication of the Main Frame Assy
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1. Contact point (x1) on
the upper side of the
Main Frame Assy with
the CR Unit
2. Contact points (x4) on
the lower side of the
Main Frame Assy with
the CR Unit
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Main Frame Assy
CR Unit
Application Point
Main Frame Assy
Frame Base
Figure 4-14. Lubrication of the Scanner Housing Lower
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Guide rail of the Scanner
Housing Lower
<Type>
G-45
<Application Amount>
0.03 g x 3 points
<Remarks>
After applying with
injector, spread it with
brush in the direction of the
arrow.
Scanner Housing Lower
Spread grease with brush.
Guide rail
Application Point

Epson L220 Specifications

General

Print technology	Inkjet
Maximum resolution	5760 x 1440 DPI
Print speed (ISO/IEC 24734) mono	7 ipm
Print speed (ISO/IEC 24734) color	3.5 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Scanner type	-
Scan speed (black)	2.4 ppm
Scan speed (color)	9.5 ppm
Image formats supported	BMP, JPEG, TIFF
Document formats supported	PDF
Optical scanning resolution	600 x 1200 DPI
Maximum copy resolution	- DPI
Printing colors	Black, Cyan, Magenta, Yellow
Country of origin	Philippines
Maximum duty cycle	- pages per month
Product color	Black
Built-in display	No
Market positioning	Home & office
Paper input type	Paper tray
Total input capacity	- sheets
Total output capacity	30 sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Photo paper sizes	10x15, 13x18 cm
Non-ISO print media sizes	Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (ready)	3.8 W
Power consumption (sleep)	0.8 W
Power consumption (copying)	12 W
Sustainability certificates	ENERGY STAR
Windows operating systems supported	Yes
Standard interfaces	USB
Internal memory	- MB
Pallet width	800 mm
Pallet height	2250 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	4 pc(s)
Quantity per pallet layer (UK)	5 pc(s)
Package depth	535 mm
Package width	390 mm
Package height	210 mm
Package weight	5960 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	300 mm
Width	482 mm
Height	145 mm
