Epson L350 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Disassembly/Reassembly 35

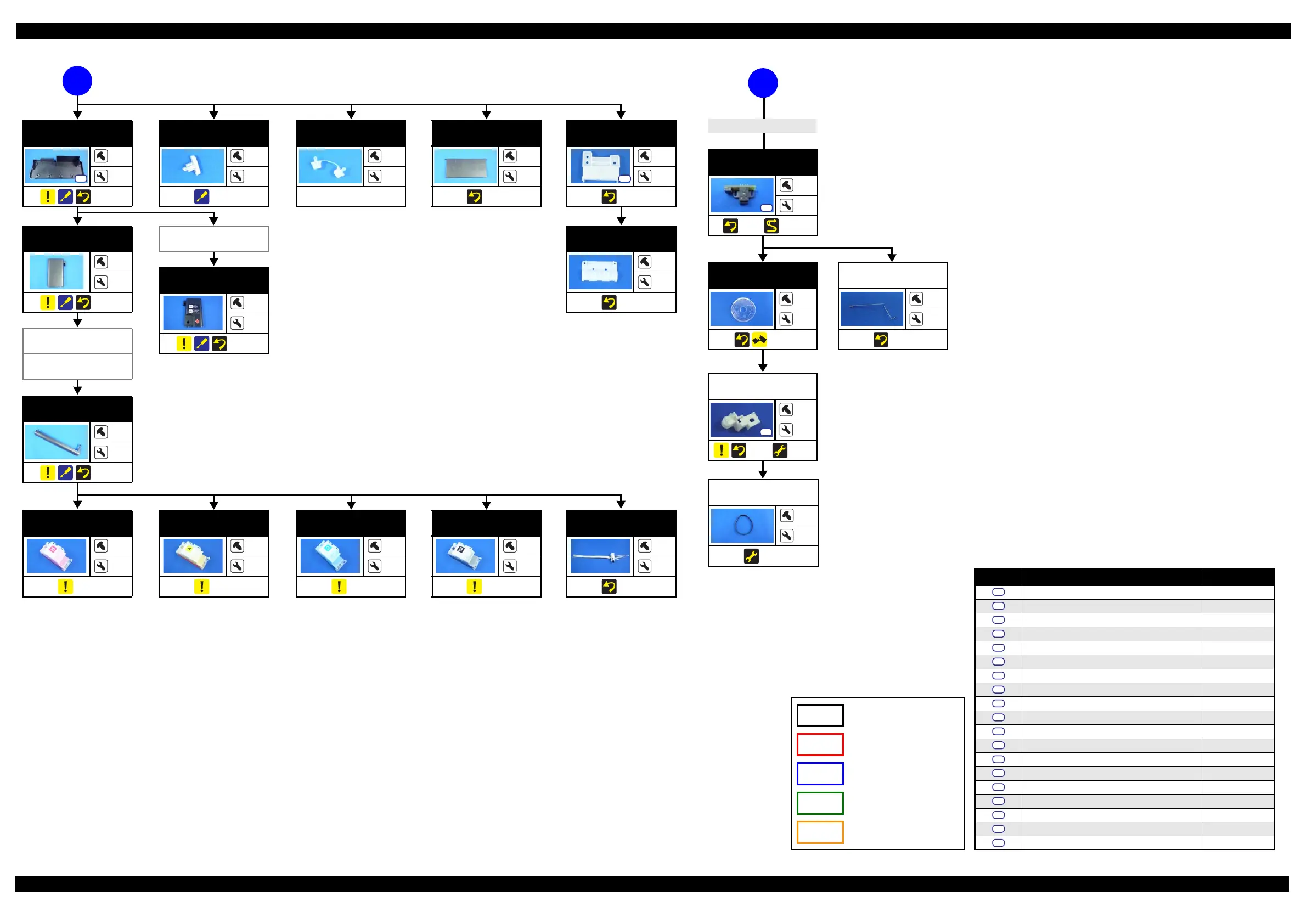

Flowchart 2-4. Disassembly Flowchart (4)
B
L350/L355/L210 Series: (p 32)
L300/L110 Series: (p 33)
Valve Lever
---
2
(p 45)
Cap Tank
---
---
---
Top C o v er
---
2
(p 45)
Tube Valve
Holder Front
---
4
(p 45)
Left Cover
---
7
(p 46)
Tube Valve
Holder Rear
3
2
(p 45)
S16
Bottom Cover
6
---
(p 46)
S16
Right Cover
---
7
(p 46)
Valve Lever
(p35)
Cover Joint
---
2
(p 46)
Valve Lever
(p35)
Right Cover
(p35)
Ink Supply Tank
(Magenta)
---
1
(p 45)
Ink Supply Tank
(Yellow)
---
1
(p 45)
Ink Supply Tank
(Cyan)
---
1
(p 45)
Ink Supply Tank
(Black)
---
1
(p 45)
Ink Supply Tank
Tube Assy
---
8
(p 46)
PF Scale
---
---
(p 44)
PF Timing Belt
---
---
(p 52)
PF Encoder
Sensor
1
---
(p 44) (p 49)
S2
 PF Encoder FFC
PF Driven Pulley
Assy
1
1
(p 43) (p 52)
S10
PF Grounding
Spring
---
1
(p 45)
C
L350/L355/L210 Series: (p 32)
L300/L110 Series: (p 33)
L355 Series specific parts/unit
L350/L355/L210 Series specific
parts/unit
L300/L110 Series specific
parts/unit
L210/L110 Series specific
parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 3 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 4
± 0.5 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.P SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.P.F.B-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.P.S-TITE (P2) SCREW 3x6 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 5
± 0.5 kgf·cm
C.P SCREW 2.6x3 F/ZN-3C 4 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x4 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 2 ± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 25
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN 6
± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN 3 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 3
± 0.5 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
