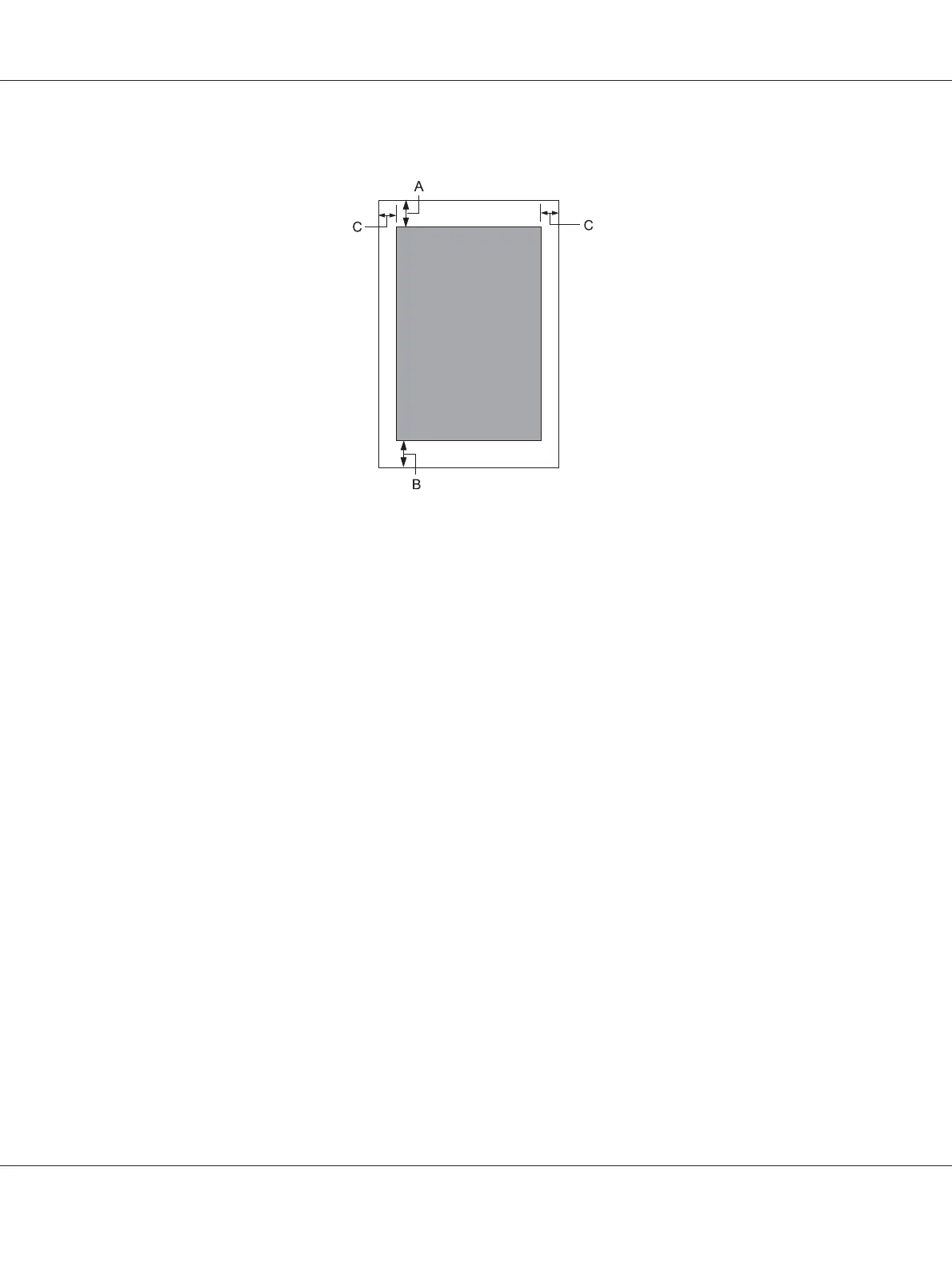

Single sheets (including multipart forms)
A The minimum top margin is 1.0 mm (0.04 inch).
B The minimum bottom margin is 3.1 mm (0.12 inch).
C The minimum left and right margins are 3 mm (0.12 inch).
*Minimum of 2.54 mm (0.1 inch) for WNI4915 emulation.
Magnetic stripe reader/writer (Magnetic stripe reading and writing models
only)
The horizontal magnetic stripe reader/writer is used to read and write data on the magnetic stripe on
bank passbooks. See the following specifications of this device for details.
Note:
The magnetic stripe reader and writer is installed only horizontally.
Recording code BCD Binary Coded decimal, 4 data bits,
1 VRC parity control bit
Recordable characters column 3 of the ASCII table
PLQ-50/PLQ-50CS/PLQ-50M/PLQ-50CSM/PLQ-50CSK User’s Guide
Product Information 82
