23
1 Air intake vent
2 Front adjustable foot
3 Ceiling/wall mount holes (9)
4 Rear feet
5 Security cable attachment point
Note: Use M4×9mm screws for mounting the projector.
Parent topic: Projector Part Locations

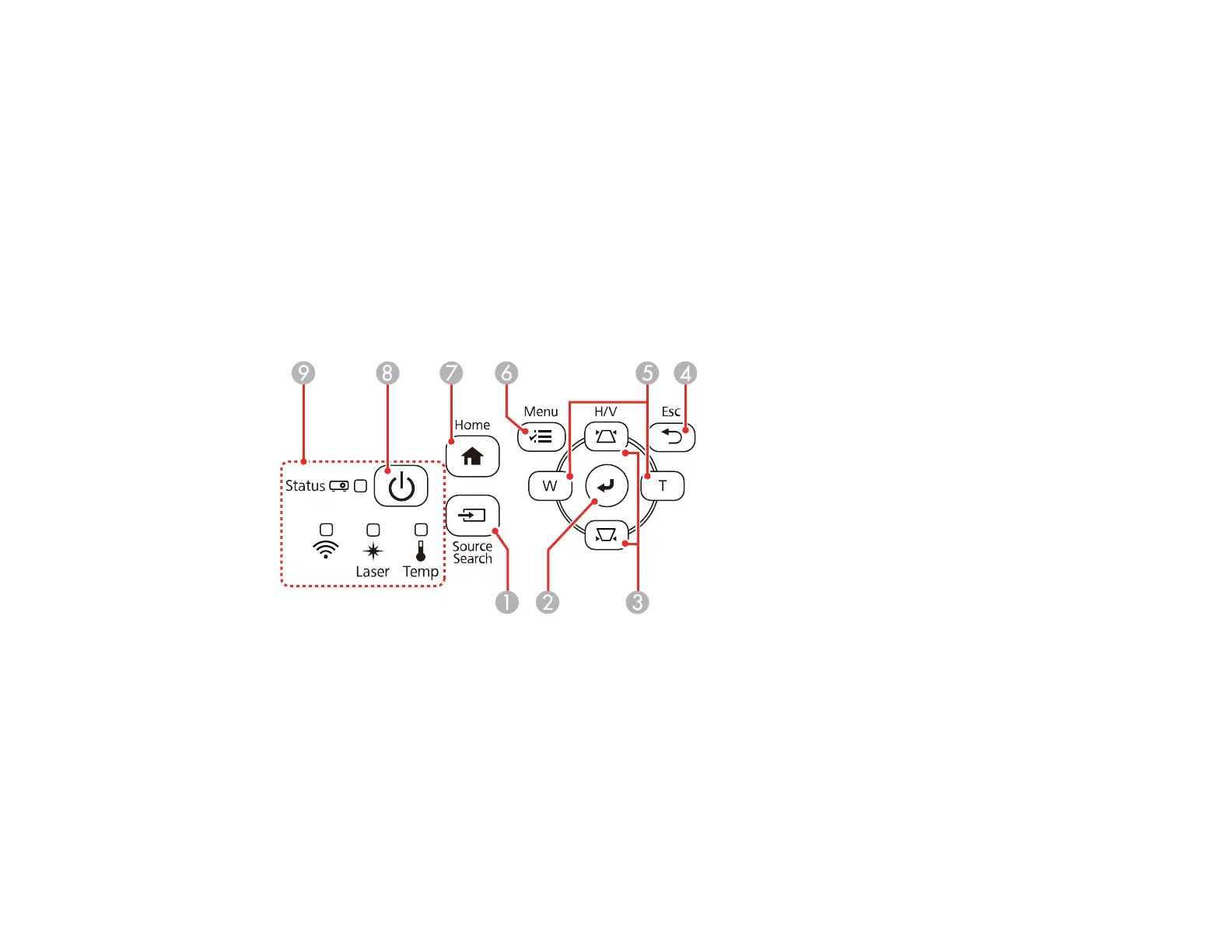

Projector Parts - Control Panel
1 Source Search button (searches for connected video sources)
2 Enter button (selects options and automatically adjusts position, tracking, and sync settings when
projecting analog RGB signals from the Computer ports)
3 Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape)
and arrow buttons
4 Esc button (cancels/exits functions)
5 W/T (Wide/Tele) buttons (adjust projected image size) and arrow buttons
