2. Read/write of S1 to W registers

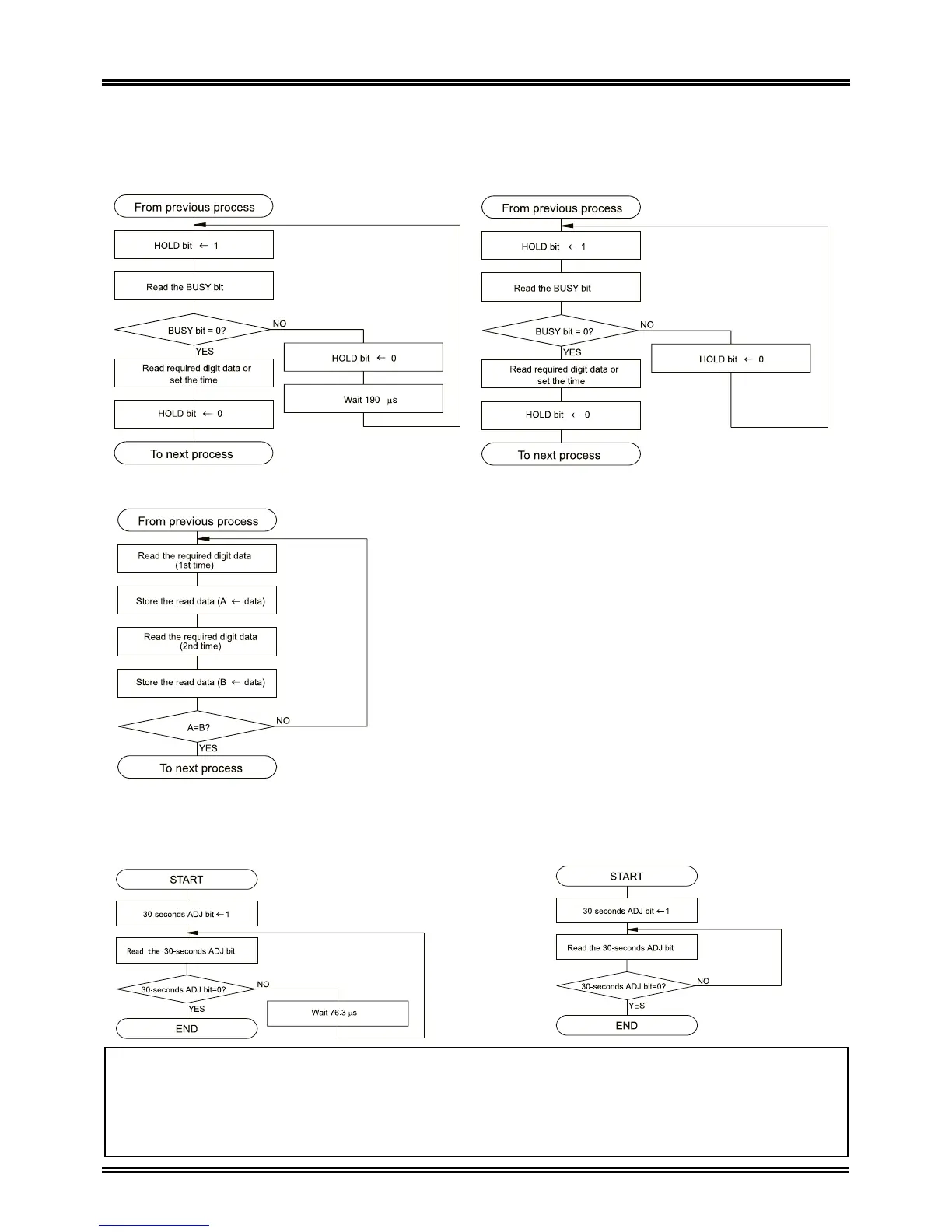

Use one of the procedures shown below to access registers other than the control registers (CD, CE, and CF) while the
RTC is operating. Note that the control registers can be accessed regardless of the status of the BUSY bit.
Read or write when the HOLD bit is used
or
Read when the HOLD bit is not used
The operation when the HOLD bit is not used involves reading the same
digit twice and comparing the read values. This is to avoid the problem of
reading unstable data that would occur if the data was read while the RTC
was incrementing the count.
3. Write to 30-second ADJ bit
The 30-seconds ADJ function is enabled by writing 1 to the 30-seconds ADJ bit. Note that the counter registers (S1 to
W) cannot be accessed for 76.3 mseconds after this write. Therefore, follow one of the procedures shown below to use
this function.
or
Note
The crystal unit could be damaged if subjected to excessive shock. If the crystal unit should stop operating for such a reason, the timer
within the RTC will stop. While the crystal unit is operating, the BUSY bit is automatically reset every 190 mseconds and the 30-seconds
ADJ bit, every 76.3 mseconds , but this automatic reset cannot be done if the oscillation stops. Therefore, in such a status, it is no longer
possible to escape from the BUSY bit status check loop shown in subsection 2 above or the 30-seconds ADJ bit status check loop shown in
subsection 3 above, and you should consider backing up the system. To design a fail-safe system, provide an escape from the loop to a
procedure that can process such an error if the loop is repeated for more than 0.5 to 1.0 milliseconds.
