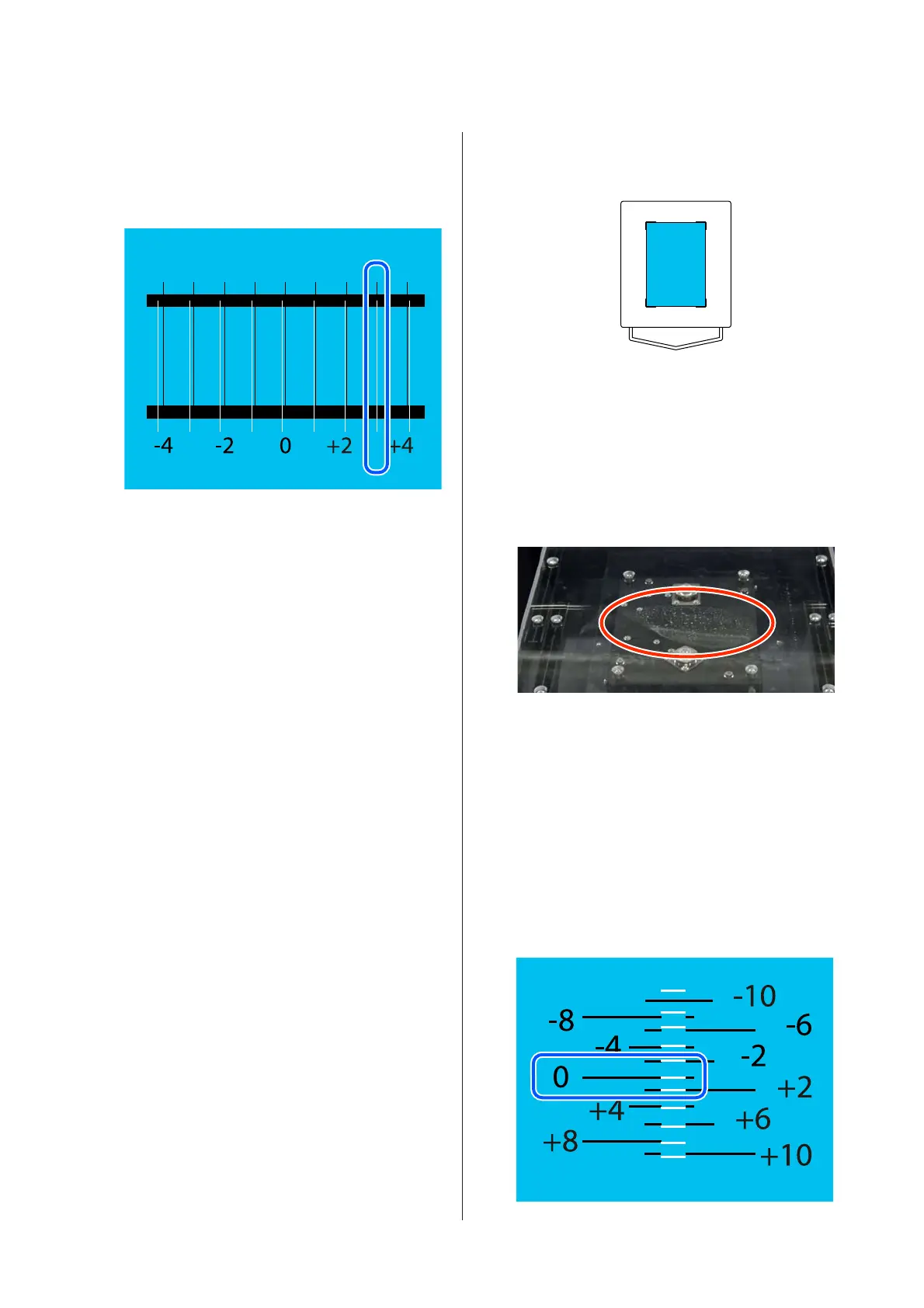

Check the pattern, and select from -4 to +4,
where the white and black lines overlap most
closely in the pattern.
Given the following illustration, select "+3".
F
Input the adjustment values.
Input the adjustment values in order A to D that
you selected in step 5.
Inputting all of the adjustment values and
pressing OK opens a screen for confirming the
adjustment values.
Check the adjustment results and press OK to
reflect the adjustment results to the printer.
Next, execute Head Interval Y Adjustment.
Executing Head Interval Y
Adjustment
A
Use a sprayer to spray water on the center of the
platen.
If you do not dampen the surface of the platen
with water, you cannot correctly set the
Adjustment Film Sheet.
B
Starting from the front of the platen, slide a new
Adjustment Film Sheet along the surface of the
platen so it aligns with the marks as you place it.
Be sure to align the film with the markings. If it is
placed in a different position, the platen may be
soiled with ink.
C
Be sure that the film adheres correctly.
❏ If there is air between the film and the platen, as
shown in the illustration, return to step 2 and
reset it.
❏ If there is any water on the surface of the film,
use a soft cloth that is not likely to generate lint
to wipe it off.
D
Press Start.
Pressing the x button starts printing the
adjustment pattern. When printing the pattern is
complete, the adjustment value entry screen is
displayed. Continue to the next procedure.
E
Check the printed adjustment pattern.
SC-F3000 Series How to Replace the Print Head
Adjustment Work
25
