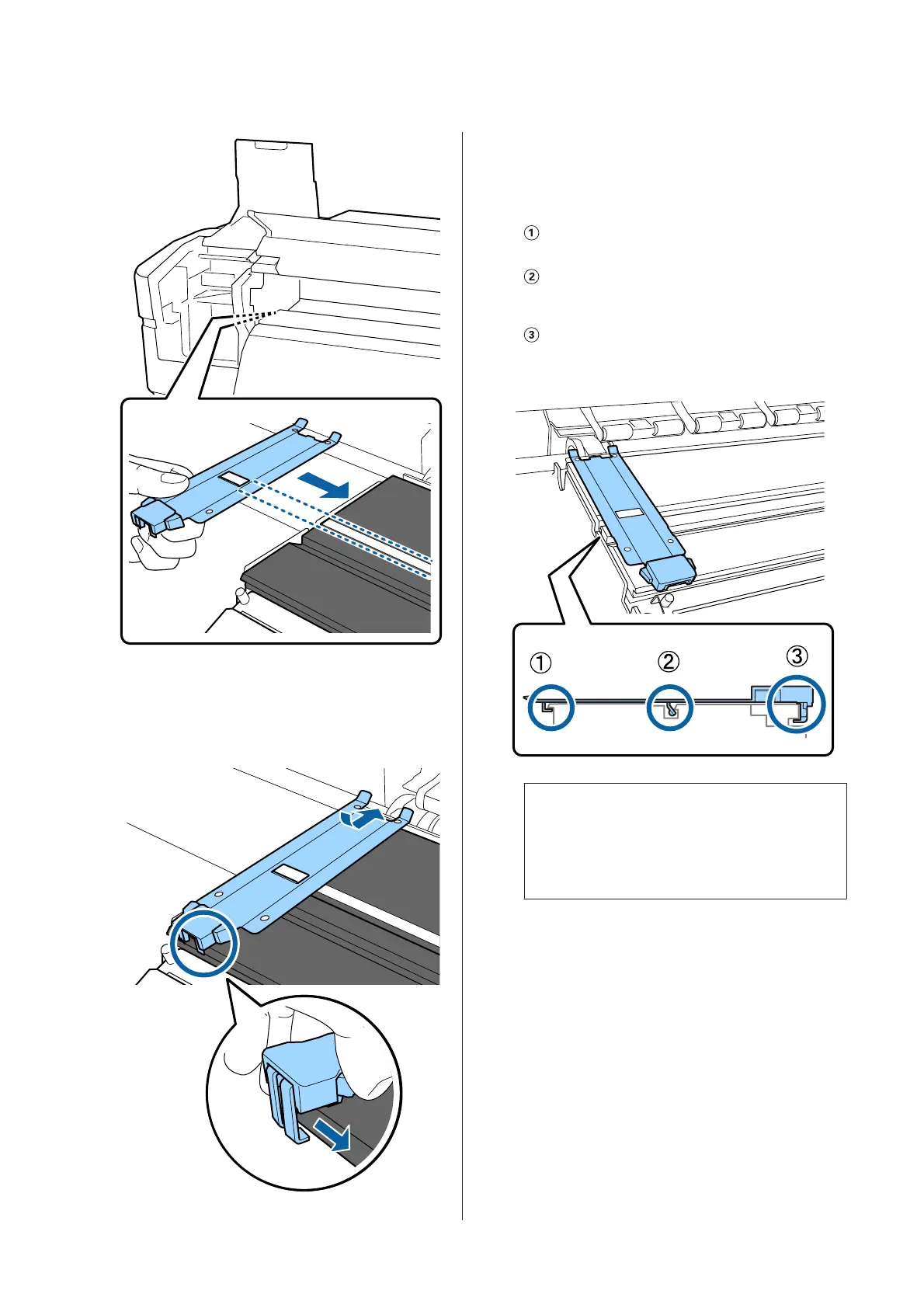

(2) While pressing the tip of the metallic plate
against the platen, attach the hooked sections
to the front corner of the platen.
E
Check that three hooked sections at the rear of
the media edge plate are securely applied as
shown below and that they are attached with no
gap between the platen and media edge plate.
Hook into the tip: Corners of the platen
Hook into the rear of square hole: Groove in
front of white line
Hook into the rear of tab: Front corner of the
platen
c
Important:
If hooked sections are not positioned correctly,
return to Step 3 to attach them again.
Otherwise, the head may be damaged.
SC-S80600 Series/SC-S80600L Series/SC-S60600 Series/SC-S60600L Series/SC-S40600 Series User's Guide
Maintenance
83
