190 | Installing and Using Optional Equipment
Installing the Manual Media Cutting System
Follow these steps to install the Manual Media Cutting System on your
printer.
1. Make sure the printer is turned off.

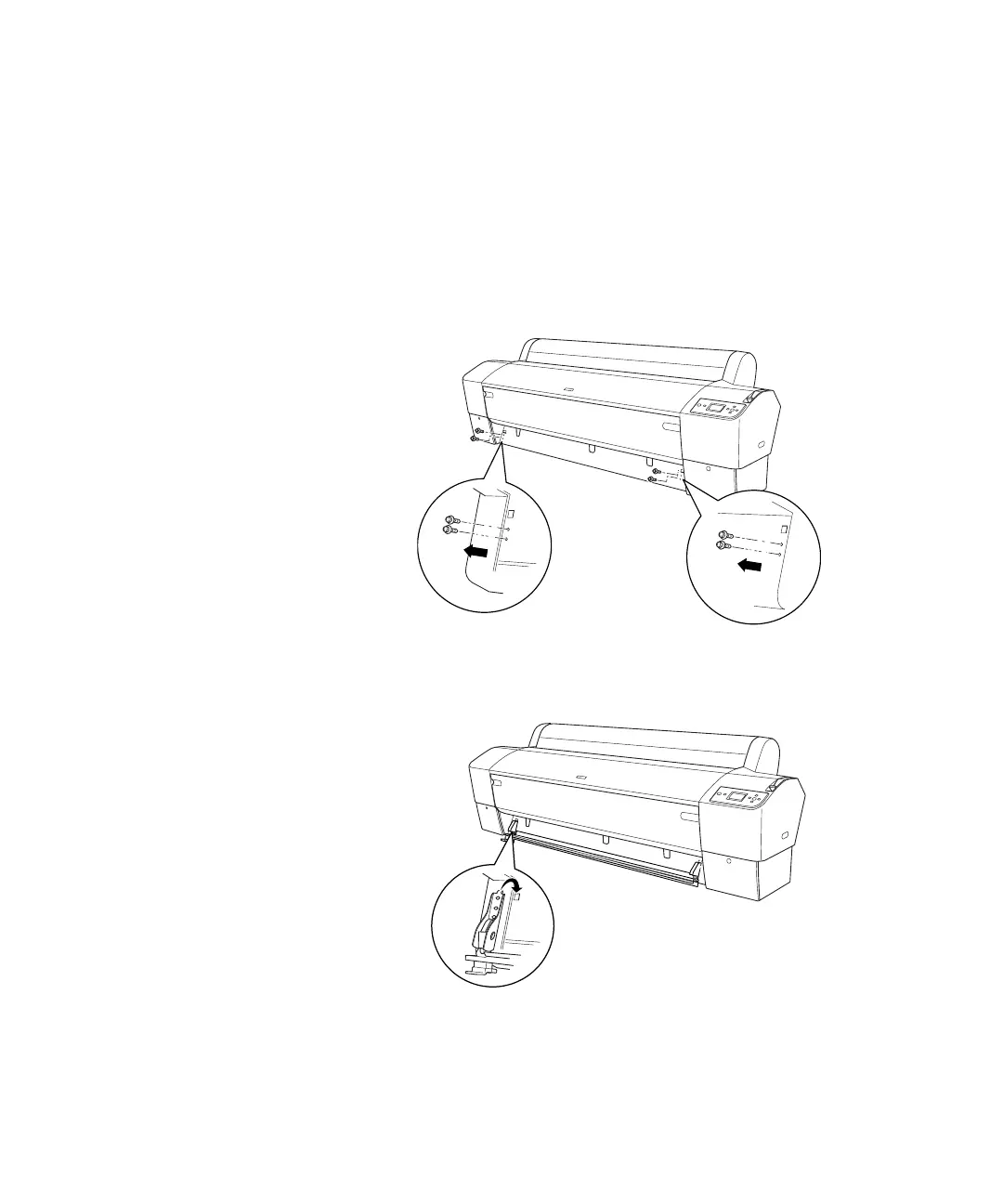

2. Using a screwdriver, remove the four silver screws securing the platen.
3. Hook the left side of the manual cutter onto the square hole on the
printer as shown below.
4. Hook the other side of the manual cutter onto the right square hole on
the printer.
Note: The manual cutter
comes with either two or
three holes on each side.
The illustrations in this
section show the cutter
with three holes, but the
instructions are the same
for the other version.
Do not loosen the black
screws that are near the
silver screws in this step.
