DISASSEMBLY & ASSEMBLY Parts Diagram 188
Confidential
4.2 Parts Diagram
See the pages written under brackets for the disassembly/assembly procedure.

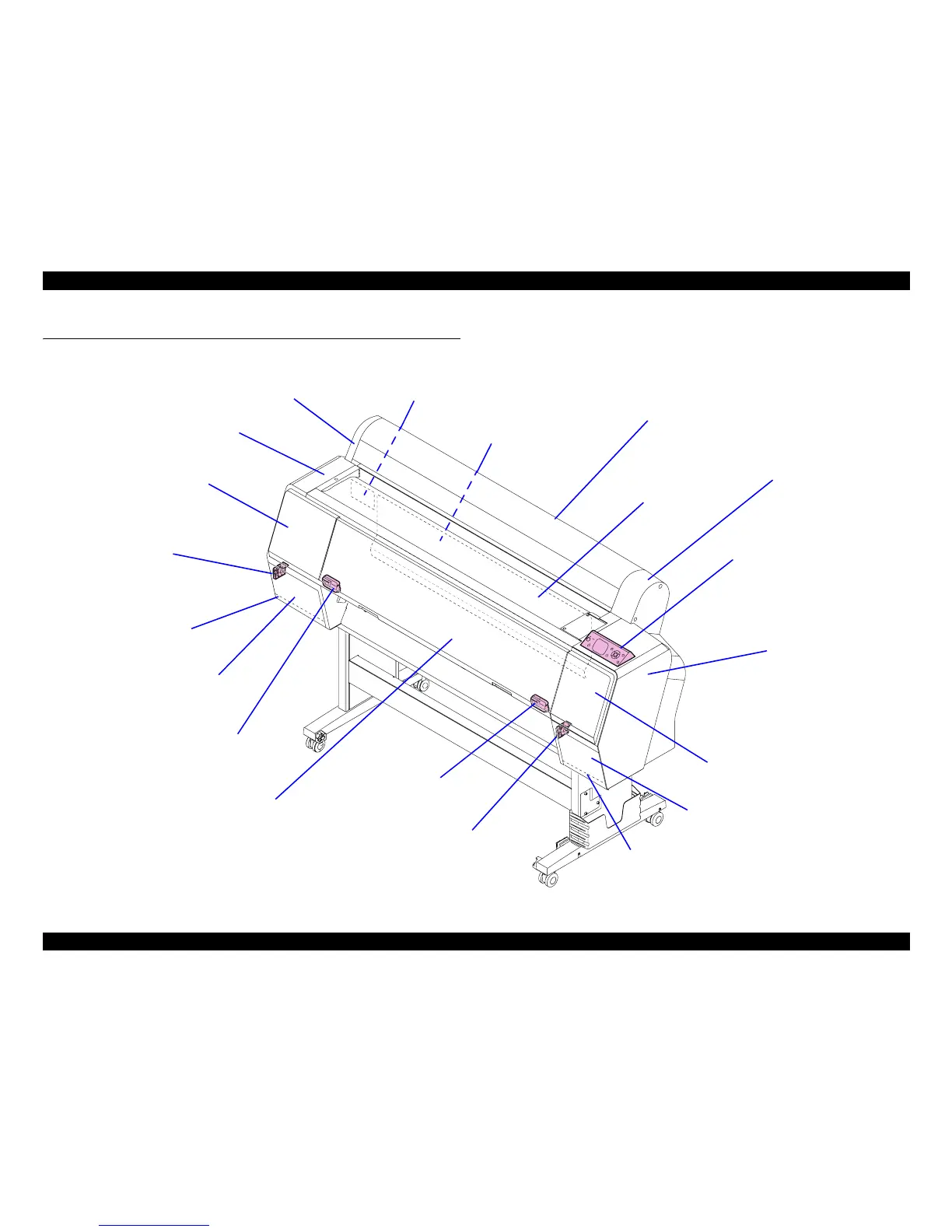

Figure 4-5. Housing
Control Panel
(p203)
IC Cover R
(p204)
IC Cover L
(p204)
IC Shaft Cover R
(p205)
IC Shaft Cover L
(p205)
Front Cover L
(p207)
Front Cover R
(p207)
Right Cover
(p209)
Left Cover
(p211)
Front Cover (Middle)
(p213)
Top Cover
(p214)
Spindle Cover R
(p215)
Spindle Cover L
(p216)
Rear Left Cover
(p219)
Rear Cover
(p220)
Front Cover Sensor L
(p223)
Front Cover Sensor R
(p221)
Cartridge Cover Sensor L
(p226)
Cartridge Cover Sensor R
(p225)
Roll Cover Assy
(p217)

Epson Stylus Pro 9900 Specifications

General

Color	Yes
Maximum resolution	2880 x 1440 DPI
Media thickness	0.08 - 1.50 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll width	1118 mm
Display	LCD
Internal memory	64 MB
Country of origin	China
Drive device, buffer size	256 MB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Fast Ethernet
Compatible operating systems	Microsoft Windows 2000, XP, XP 64-bit, Vista, MAC OSX 10.x.x
Power requirements	AC 100-240V 50/60Hz
Power consumption (active)	80 W
Power consumption (standby)	1 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	2040 mm
Package width	815 mm
Package height	1080 mm
Package weight	193053 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Dimensions (WxDxH)	1702 x 678 x 1196 mm
