38 | Checking and cleaning the print head

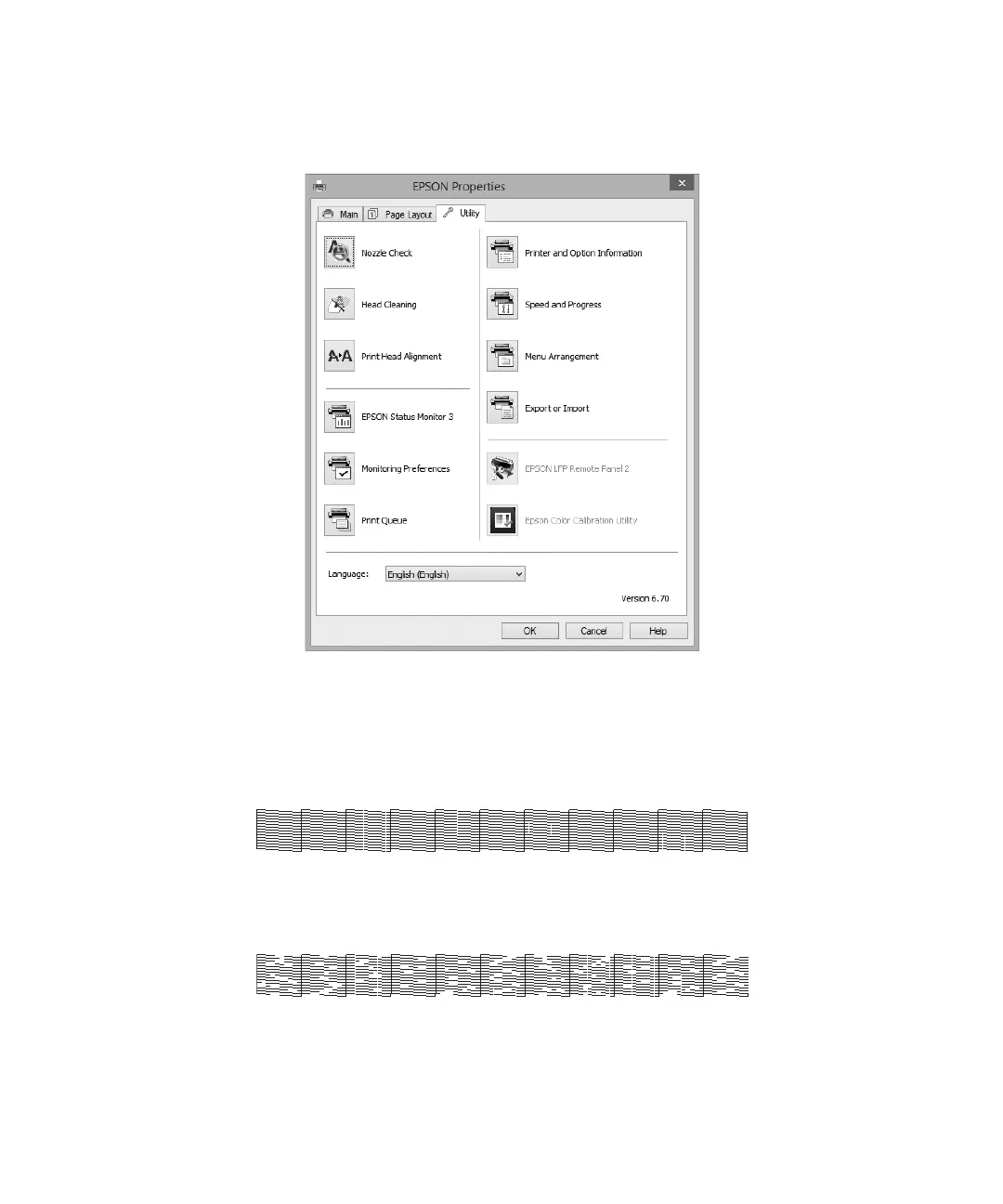

You see a menu like this:
3. Select the Nozzle Check icon and follow the instructions on the screen.
4. After the pattern is printed, use at least a 10× magnification eye loupe to examine it.
• If the pattern does not have any gaps, the print head is clean.
• If any dots or segments are missing or deflected, as shown below, run a cleaning cycle as described
on page 39. Then print another nozzle check pattern to make sure the nozzles are clean.
Caution: Don’t run a cleaning cycle while thick media is loaded in the printer.
