7.Attention in use.
1) When you connect the printer over the serial (COM) port, be sure to set the flow control to Xon/Xoff. In the cases
below, however, please set the hardware control on OS side and set TM printer to DTR/DSR.
* When using EPSON DM-D10x, 20x Printer Driver
•
TM Printer Driver's settings when connecting TM printer via DM-D customer display.
Also, please use the following cables to connect between PC and DM-D customer display(DM-D101/DM-
D105/DM-D205).

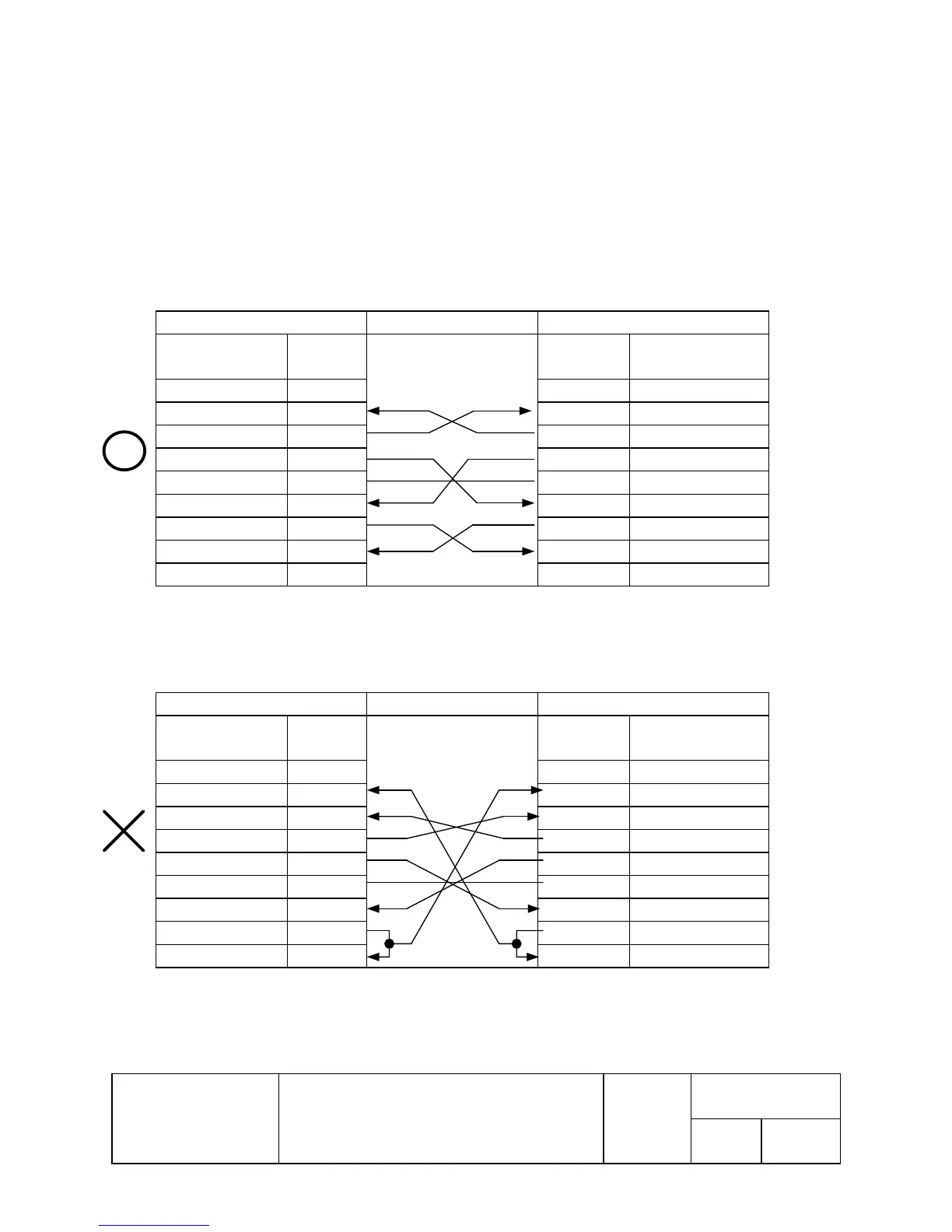

"The available cables diagram"
Printer side User side
D-sub25 Connector
Pin Number
Signal name Signal name D-sub25 Connector Pin
Number
8 (NC) DCD 1
3RxD RxD 2
2TxD TxD 3
20 DTR DTR 4
7SG SG 5
6DSR DSR 6
4RTS RTS 7
5CTS CTS 8
22 (NC) RI 9
Furthermore, though the cables on the market have the one that is listed in the following wiring structure, its type
can not be used.
"The unavailable cables diagram"
Printer side User side
D-sub25 Connector
Pin Number
Signal name Signal name D-sub25 Connector Pin
Number
8 (NC) DCD 1
3RxD RxD 2
2TxD TxD 3
20 DTR DTR 4
7SG SG 5
6DSR DSR 6
4RTS RTS 7
5CTS CTS 8
22 (NC) RI 9
