TM-U950 User’s Manual 5
English

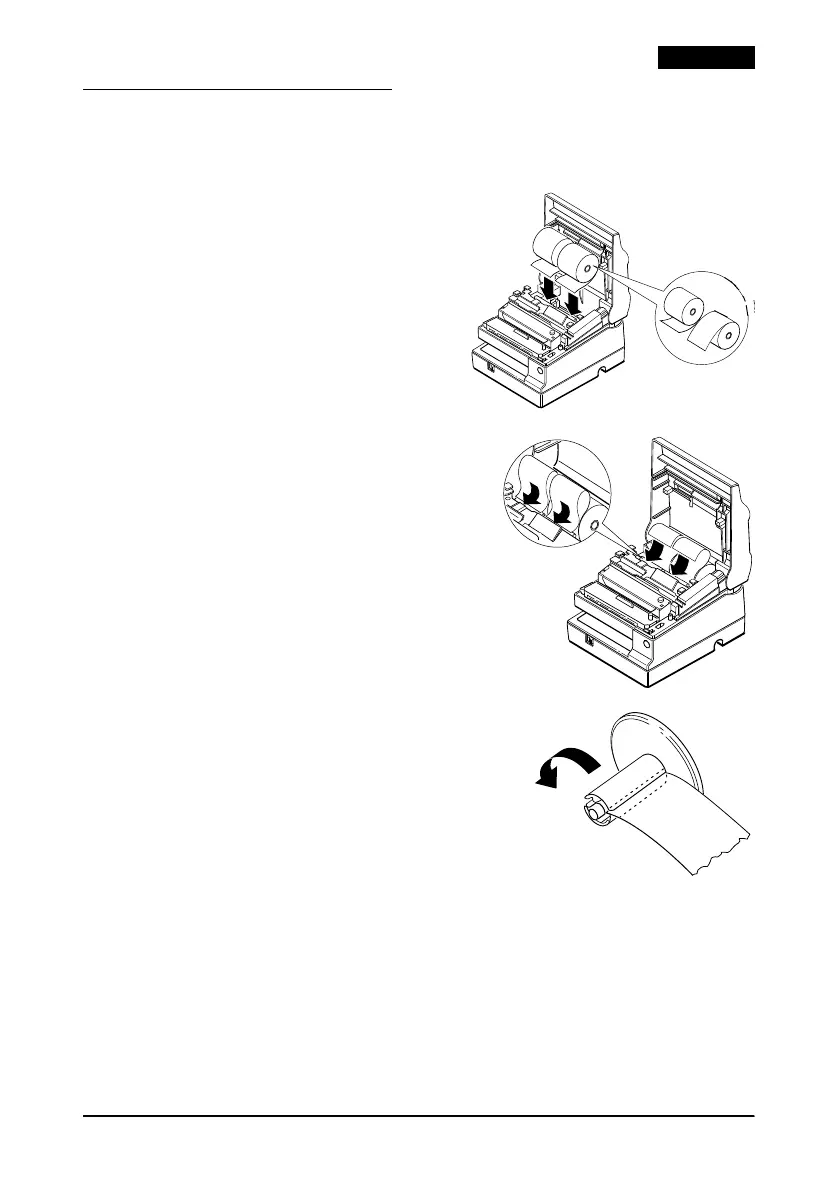

Installing the Paper Rolls
Note:
Use only paper rolls that meet the specifications.
1. Make sure the leading edge of
the paper is straight.
2. Turn on the printer and open
the printer cover.
3. Insert paper rolls on both the
receipt and journal sides of
the printer, as shown in
illustration
3. (The journal roll
is on the right in this
illustration.)
4. For each roll, insert the tip of the
paper into the paper inlet and
push it in until it is automatically
detected and fed into the printer.
See illustration
4.
5. Tear off the receipt paper on the
cutter. If the paper was not fed far
enough, press the RECEIPT FEED
button to feed additional paper.


6. Insert the tip of the journal paper
into the groove in the take-up spool
and rotate the spool two or three
times to secure the paper. See
illustration
5. If not enough paper
was fed, press JOURNAL/SLIP FEED
to feed more.
7. Install the take-up spool and close the
printer cover.
Correct
Wrong
3
✔
✖
4
5

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
