4 Enter a test project name and click OK.
5 Open the Tools menu and select Robot Manager.
6 When the control panel appears, click Reset to clear the
emergency stop condition.
7 Make sure no one is standing near the robot, then select
MOTOR ON and select Yes to continue.
The light on the end of the J3 axis turns on.
Warning: When the J3 axis light is on, the robot can move at any
time. To prevent injury, keep away from the robot before turning
on the motor and whenever the light is on.
8 Click the icon to open the Command Window.
9 In the Command Window, enter the following command:
>PULSE 0,0,0,0,0,0
10 Press Return and close the Command Window.
The robot moves to the zero position.

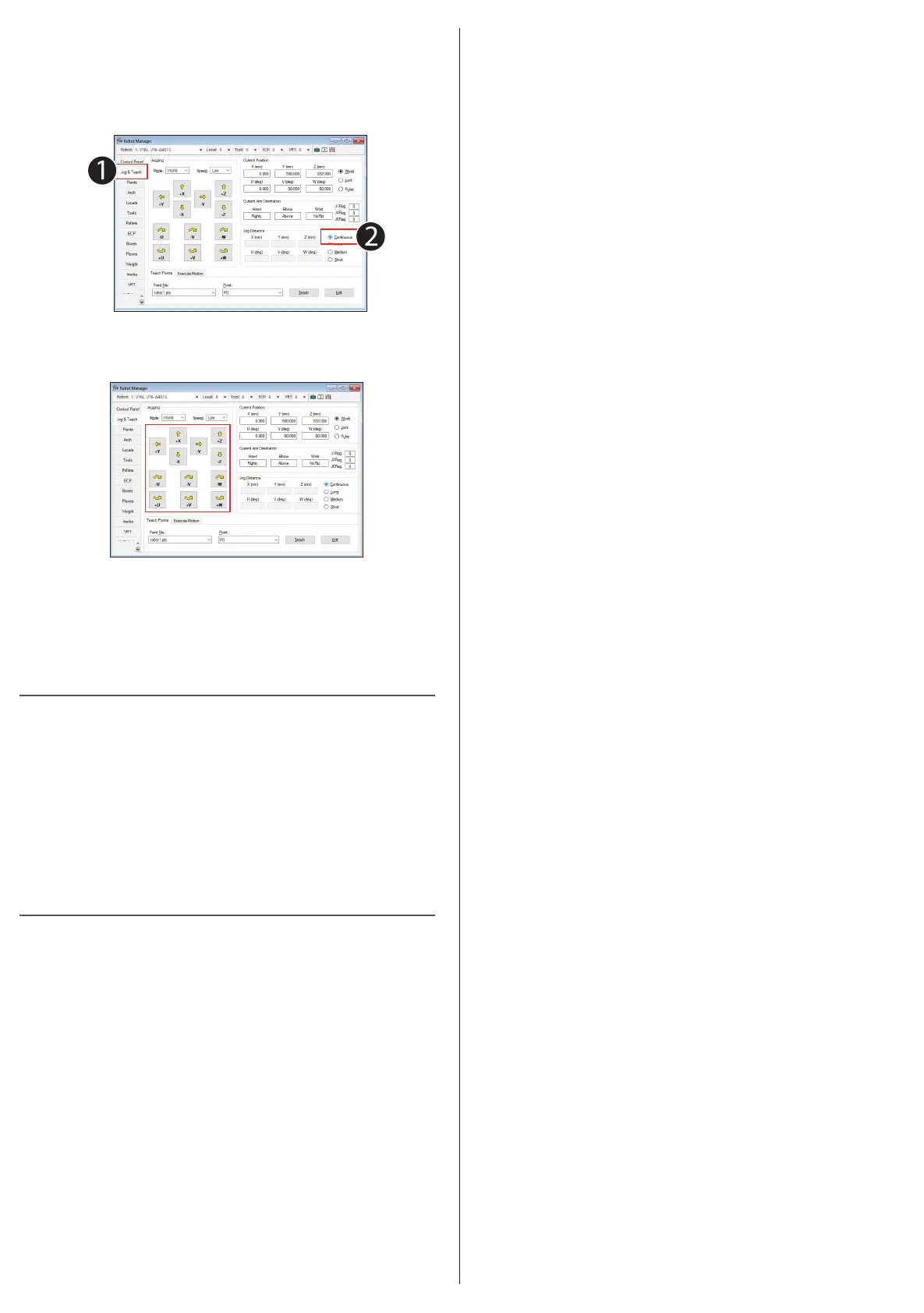

11 Select the Jog & Teach tab (1) and click the Continuous
radio button (2).
12 Click one of the directional arrows to move the robot in
the indicated direction.
13 When you finish testing, close the control panel window
and select File > Exit to exit the Epson RC+ 7.0 software.
The robot is now ready to program and use. See the online
Epson RC
+
7.0 User’s Guide to get started with programming.
Where to Get Help
For technical support, do one of the following:
• Visit www.epsonrobots.com/customer-service anytime.
• Call 1-866-ROBOTS1 (1-866-762-6781, U.S. only, toll free) or
1-562-290-5900 (U.S. and elsewhere, toll or long distance
charges may apply), 6 am to 4:30 pm, Pacific Time, Monday
through Friday.
Training
To help you get the most from your Epson product, Epson
offers programming, maintenance, and vision classes. Visit
www.epsonrobots.com/training for more information.
2 Plug the robot’s power cable into a power outlet.
The lights on the back of the robot flash for about 30
seconds as the robot initializes.
EMERGENCY
POWER
TP
Bypass
Plug
RESET
MEMORY
PROGRAM
AUTO
TEACH
TEST
MODE
PC
LAN
ESTOP
ERROR
STAT US
I/O-OUT
I/O-IN
OPTION
AC100V-240V
Initialization is finished when just the AUTO and
PROGRAM lights flash alternately in a steady pattern.
6
Testing the Robot
Now you can create a test project and test the robot using the
Epson RC+ 7.0 software.
Note: See the online Epson Safety and Installation Manual for details
on using the Epson RC+ 7.0 software.
1 On your computer, double-click the EPSON RC+ 7.0 icon
on your Windows desktop to start the Epson RC+ 7.0
software.
2 In the Connection list, select USB.
The robot’s PROGRAM light starts flashing.
3 Open the Project menu and select New to create a test
project.
