FLANGE ALIGNMENT TOOLS

OPERATOR INSTRUCTION MANUAL

PAGE 8

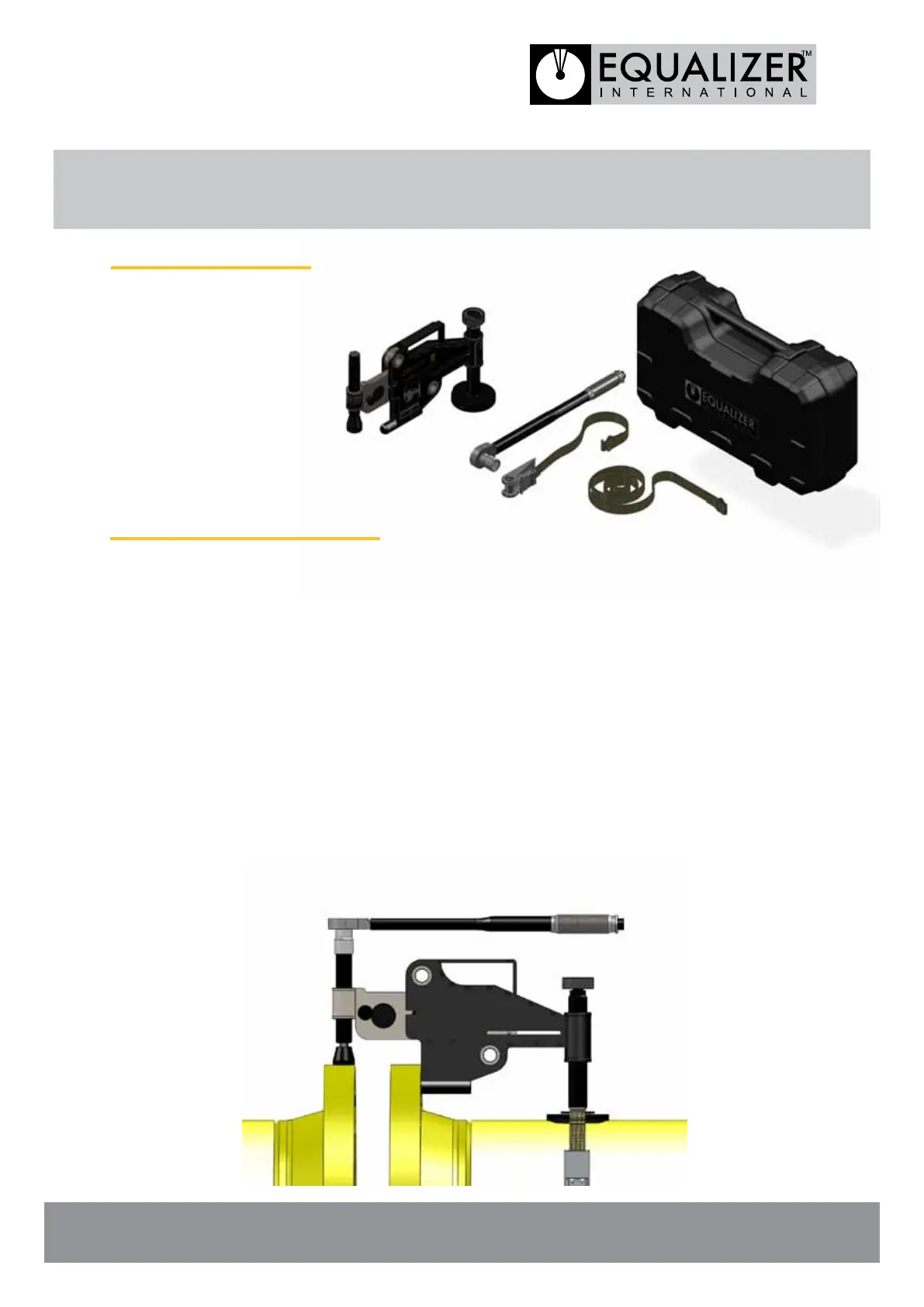

5.1 KIT COMPONENTS

1 x FA4TM Tool

1 x 50 ft/lbs (67.8 Nm) Torque

Wrench with 22 mm Socket

1 x Ratchet and Strap

1 x Instruction Manual

1 x Carry-Case

Product Code: FA4TMSTD

5.2 HOW THE FA4TM WORKS

1. The FA4TM is secured to the lower of the two anges by fully inserting the

lift hook into the bolt-hole at the point of greatest misalignment.

2. The drop leg is adjusted down to the pipe while the tool is held level in the bolt-hole

3. The wing retaining screw is loosened to allow the wing to be extended out.

4. The screw bolt is turned clockwise until the friction pad comes into contact with the

circumference of the opposite ange.

5. The torque wrench is set to 50 ft/lbs (max), attached to the screw bolt and turned to

screw down on the ange, bringing the joint into alignment.

5. FA4TM MECHANICAL FIXED FLANGE AND ROTATIONAL

ALIGNMENT TOOL
