Equalizer International FA4TM - Weights and Dimensions

FLANGE ALIGNMENT TOOLS
OPERATOR INSTRUCTION MANUAL
PAGE 16
5.6 WEIGHTS AND DIMENSIONS
WEIGHTS
Tool only = 8.6 kg (18.96 lbs)
Torque wrench/socket = 0.9 kg (1.98 lbs)
Plastic Carry-Case = 2.52 kg (5.55 lbs)
GROSS KIT WEIGHT = 11.7 kg (25.8 lbs)

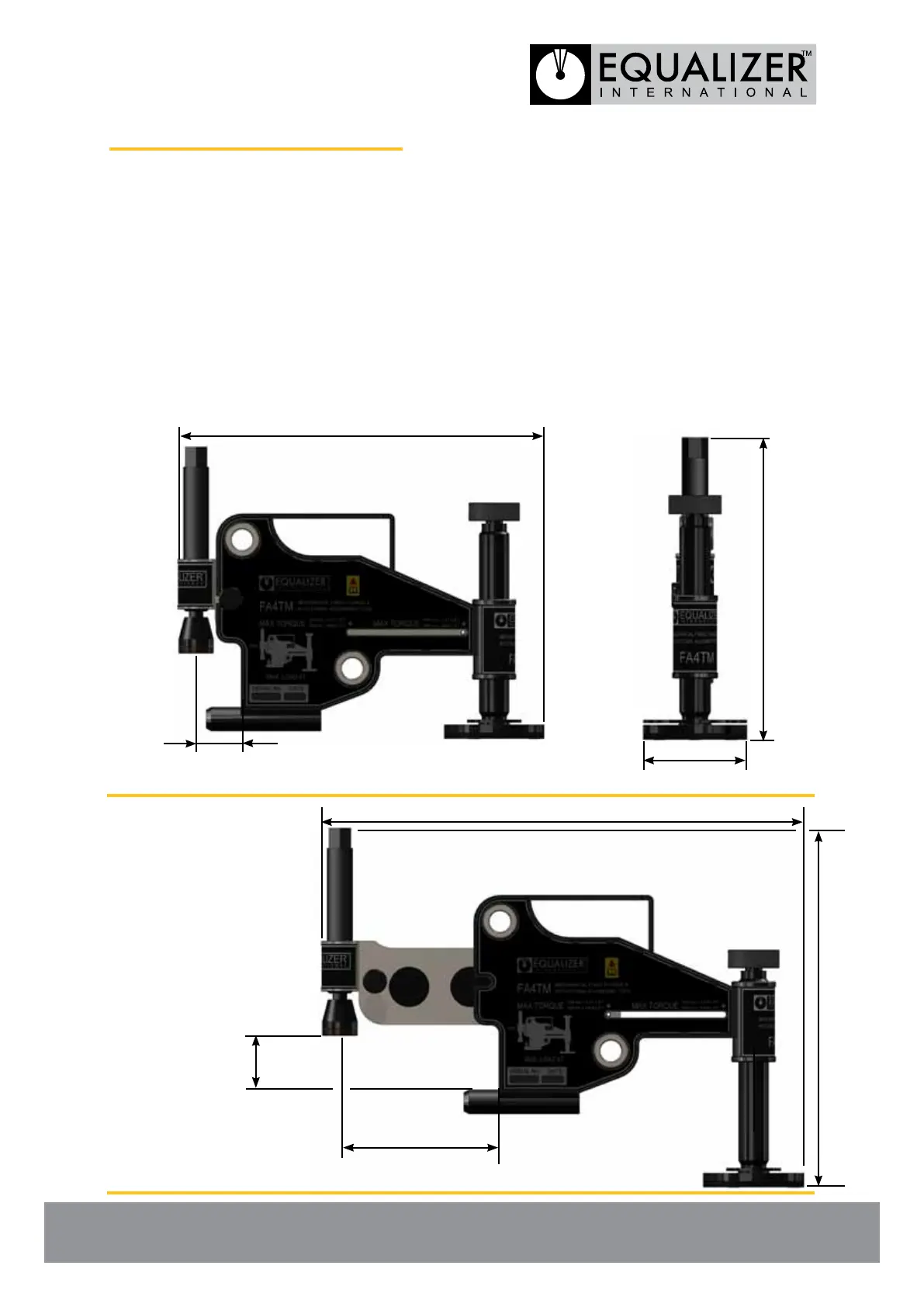

DIMENSIONS
MINIMUM EXTENSION
MAXIMUM EXTENSION
367 mm (14.45”)
45 mm (1.77”)
100 mm (3.94”)
292 mm
(11.49”)
480 mm (18.89”)
357 mm
(14.06”)
158 mm (6.22”)
54 mm
(2.12”)
