Equalizer International FA4TM - Application Dimensions

FLANGE ALIGNMENT TOOLS
OPERATOR INSTRUCTION MANUAL
PAGE 18

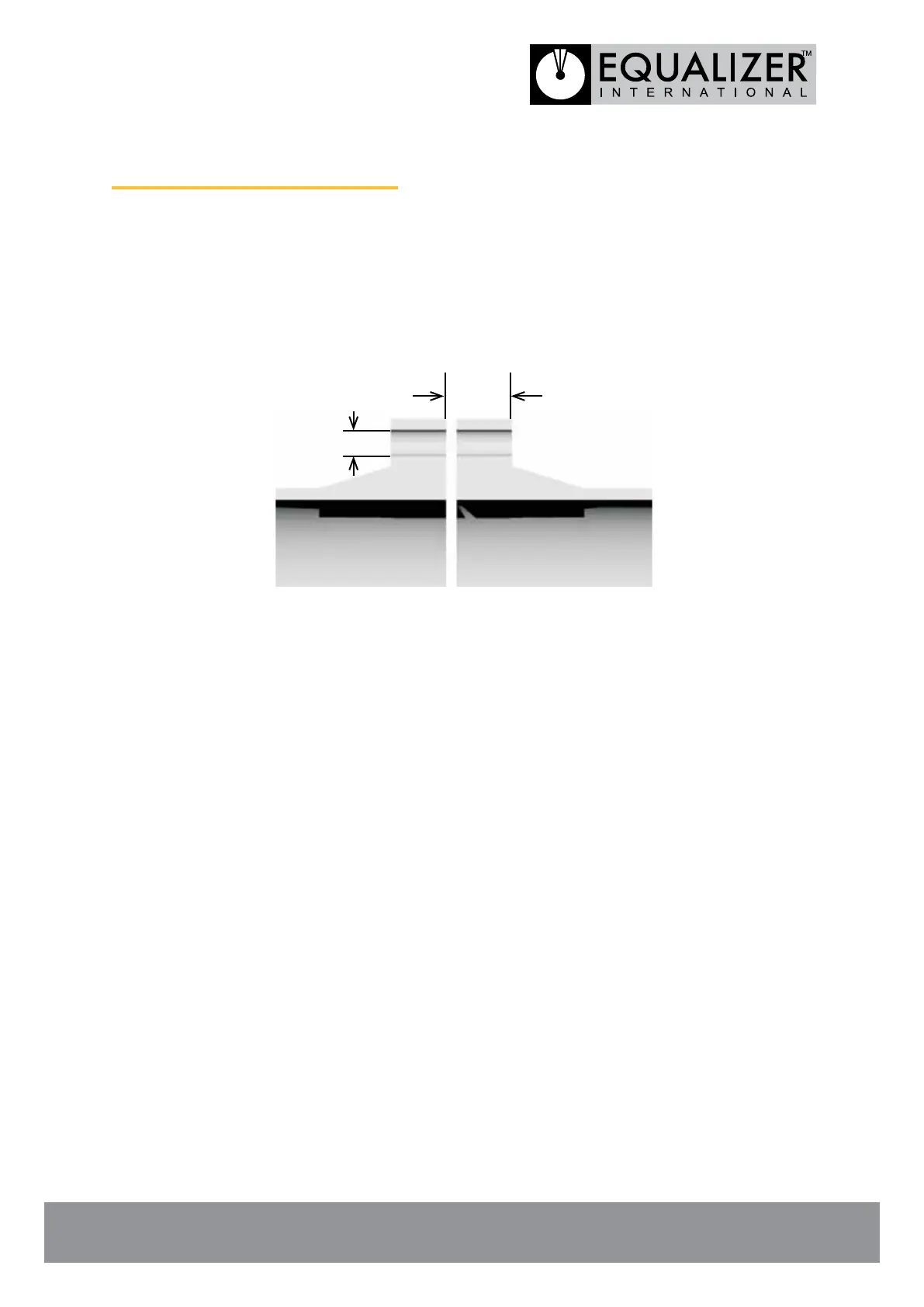

5.8 APPLICATION DIMENSIONS
MINIMUM AND MAXIMUM FLANGE SIZES
Dimension A: must be between 30 and 133 mm (1.18” and 5.23”)
Dimension B: bolt-hole diameter must be 24 mm (0.95”) or greater
DIMENSION
A
DIMENSION
B
