FLANGE ALIGNMENT TOOLS
OPERATOR INSTRUCTION MANUAL
PAGE 11

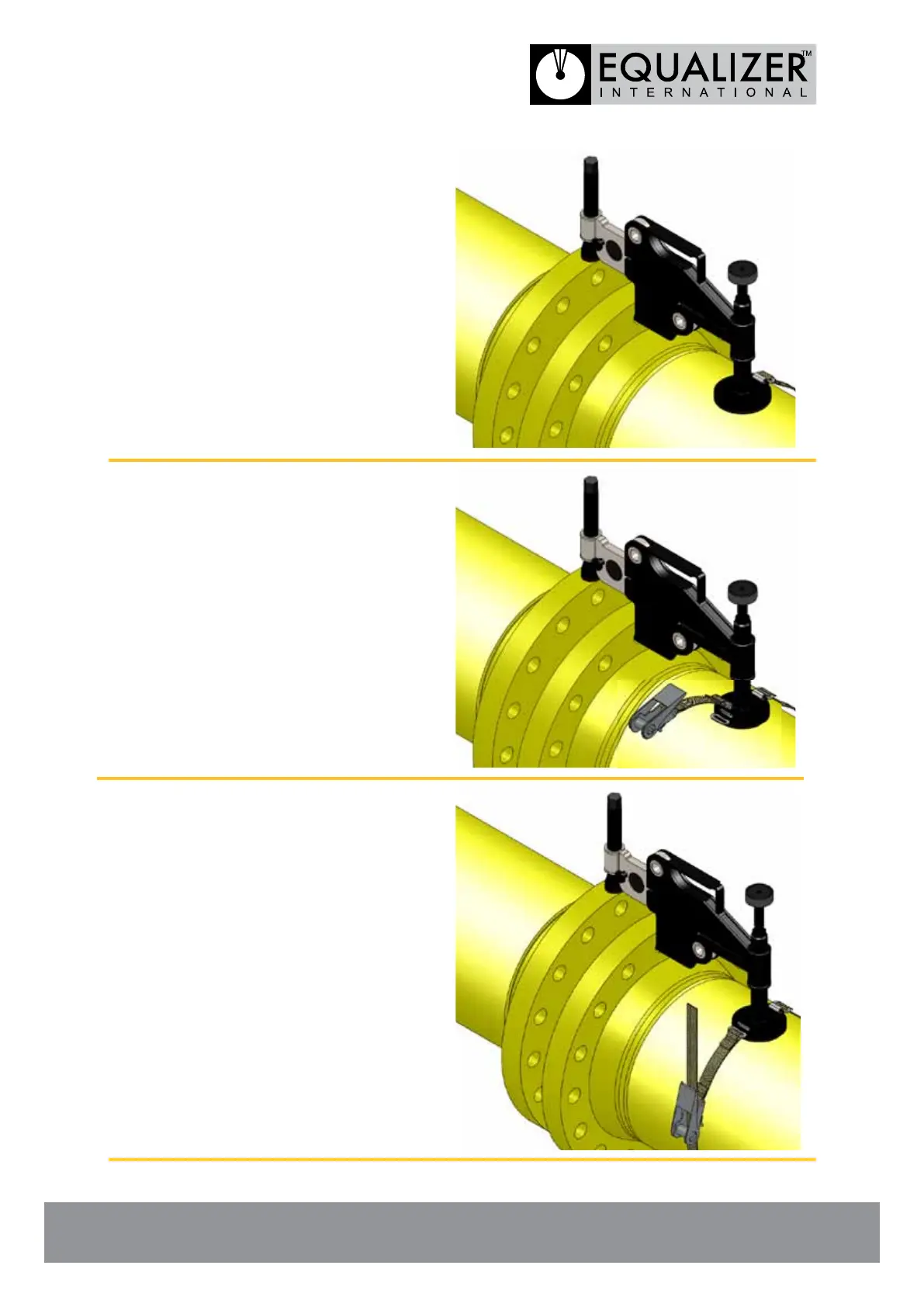

4. Attach the hook of the strap
through the buckle on top
of the base plate as shown.
5. Now place the hook of the ratchet
mechanism through the opposite
side of the buckle as shown.
6. Feed the open end of the strap
through the ratchet mechanism
as shown. Tighten the strap using
the ratchet mechanism.
