FLANGE ALIGNMENT TOOLS
OPERATOR INSTRUCTION MANUAL
PAGE 21

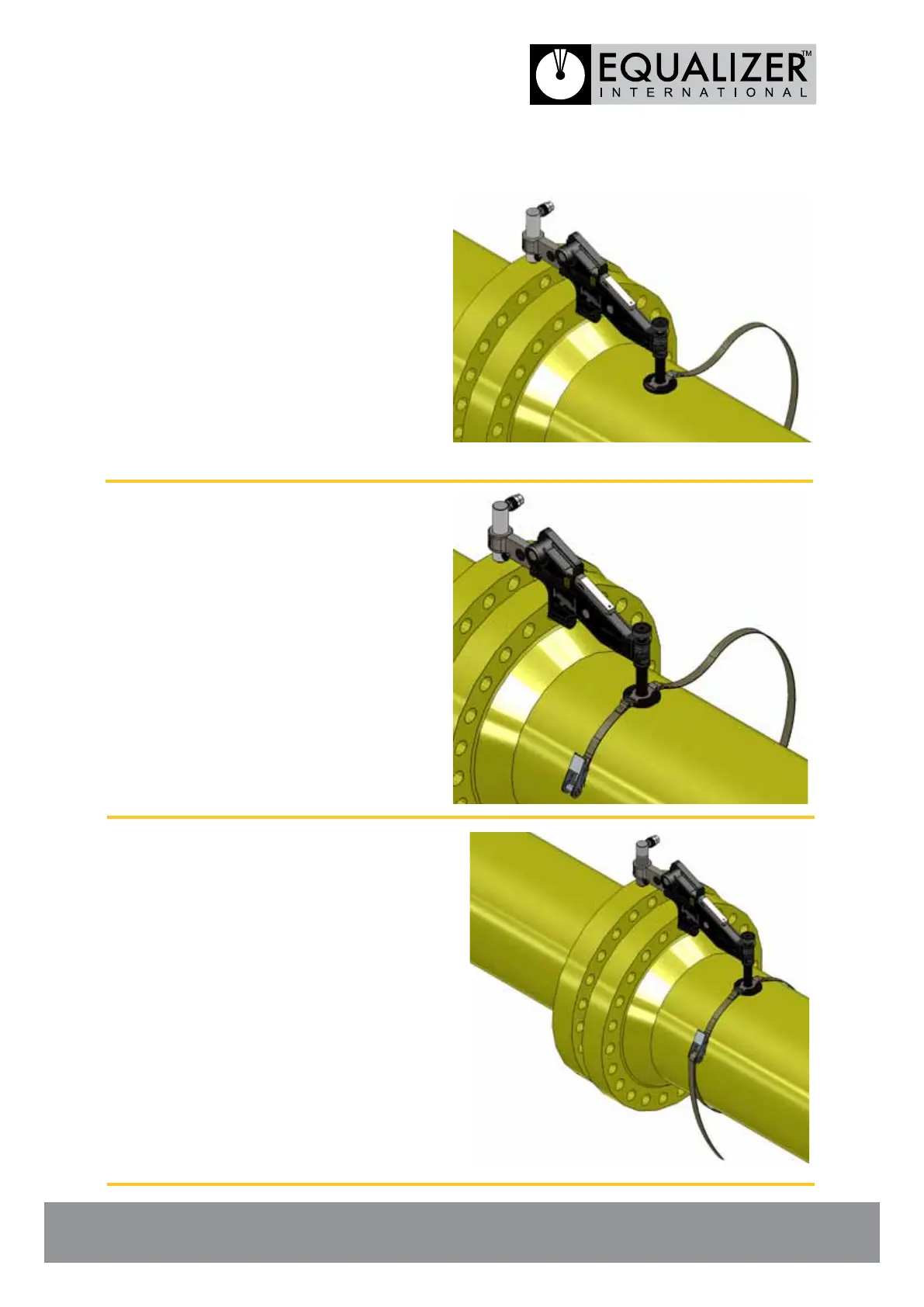

4. Attach the hook on the strap through
the base plate as shown.
5. Now place the hook of the ratchet
mechanism through the base on the
opposite side as shown.
6. Feed the open end of the strap
through the ratchet mechanism
as shown. Tighten the strap using
the ratchet mechanism.
