Chapter 3: Ergometric Process
Version: 05/02 9 er800S Operation Manual
Art-Nr: 475.051
3.1 Preparing the Patient

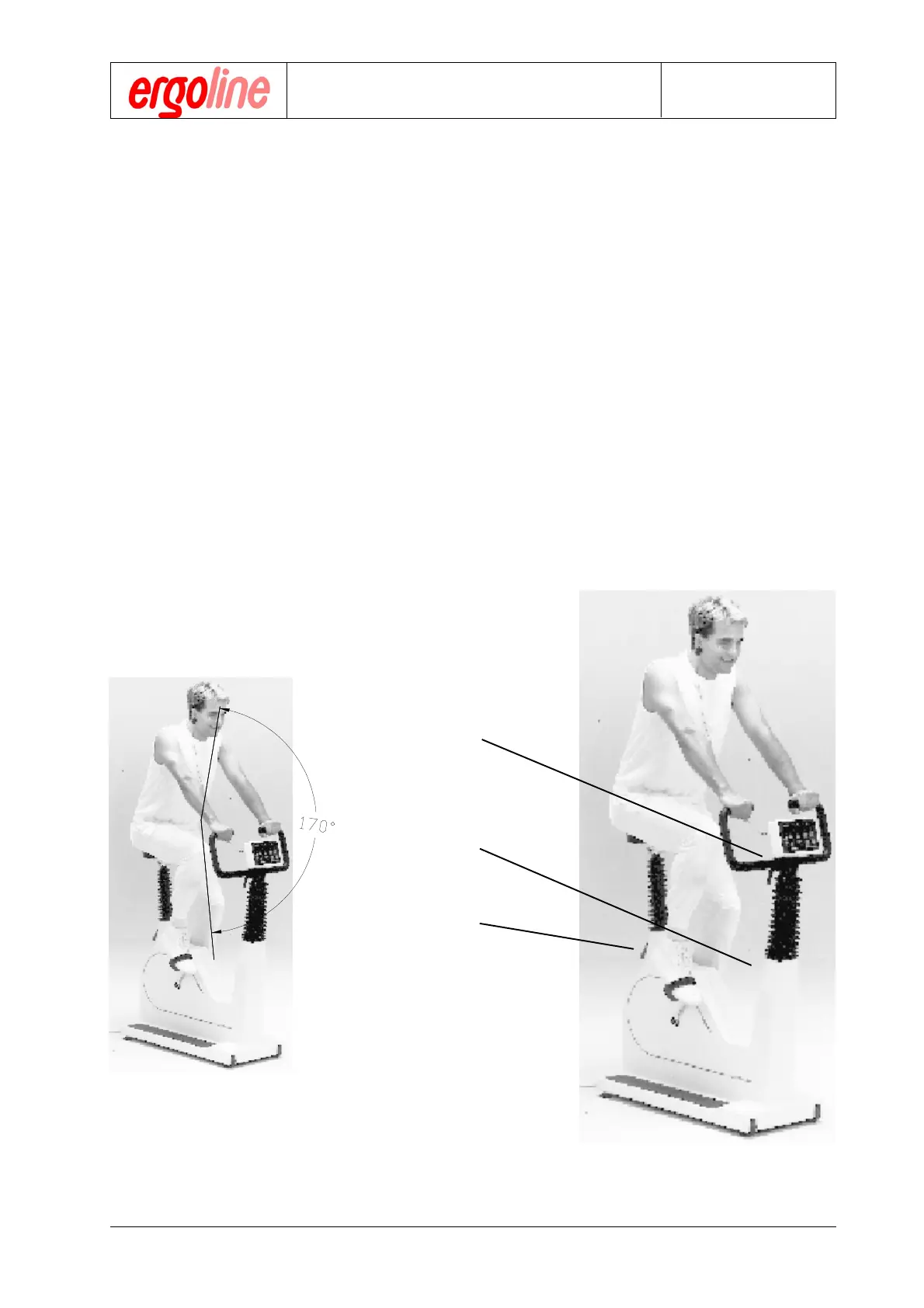

1. Have the patient take his place on the saddle.
2. Position the saddle so that an angle of approx. 170 degrees exists between the
extended axis of the upper body and the thigh when the pedal is at its lowest
position. Ask the patient to stand on the pedals while you adjust the saddle posi-
tion. Saddle height is adjusted by loosening the saddle clamp screw and moving
the saddle to the correct position.
3. Move the handlebar to a position so that the test subject can comfortably sit up-
right. To do this, loosen the handlebar height clamp handle and adjust appropri-
ately. Next you can adjust the angle of the handlebar by loosening the handlebar
angle clamp handle.
4. Check to see that all the adjustment clamps are tightened. (Do not tighten these
with extreme force)
Clamp handle for
handlebar angle
Clamp handle for
handlebar height
Clamp handle for
seat height
