The ergometrics er800S ergometer features a number of interfaces. Data can be
transmitted or received in analog or digital modes. With these interfaces, external
control can be exercised by a PC or an ECG and information can be transferred to a
suitable device (PC, ECG, Spirometer, etc.). Pre-requisite for this is that the attached
device is compatible with the interface protocol of the ergometrics er800S.

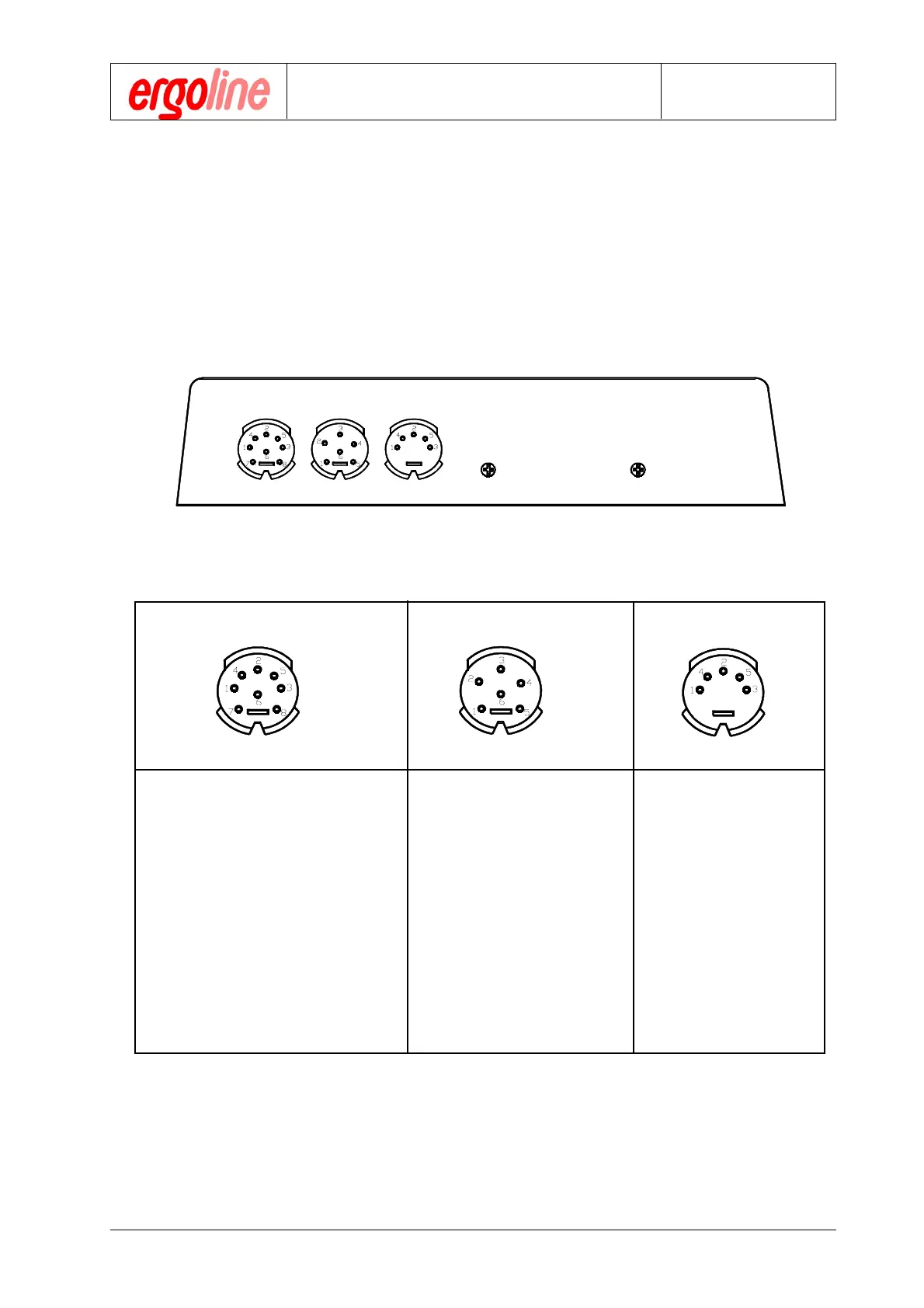

A.1 Input and Output Pin Specifications
J 2 J 3
Analog Opto RS232
J 4
J4
RS232
J2
Analog
J3
Opto
PIN 1 = Load Input
PIN 2 = GND
PIN 3 = RPM Output
PIN 4 = HF Output
PIN 5 = Load Output
PIN 6 = Calibr. Load (Service)
PIN 7 = Toggle-Load Ext./Int.
PIN 8 = Service
PIN 1 = +5V
analog
PIN 2 = ECG-trigger
PIN 3 = Remote Start ECG
PIN 4 = - - -
PIN 5 = Pulse Monitor
PIN 6 = GND
PIN 1 = TxD
PIN 2 = GND
PIN 3 = - - -
PIN 4 = - - -
PIN 5 = RxD
Appendix A: Interfaces

ergoline ergometrics er 800S Specifications

General

Brand	ergoline
Model	ergometrics er 800S
Category	Fitness Equipment
Language	English
