Product Data RBS 2106
DC/DC
Converter
BFUAC Connection Field
IDM
ACCU
ADM
Batteries (TM)
(TM) Batteries
P008598B

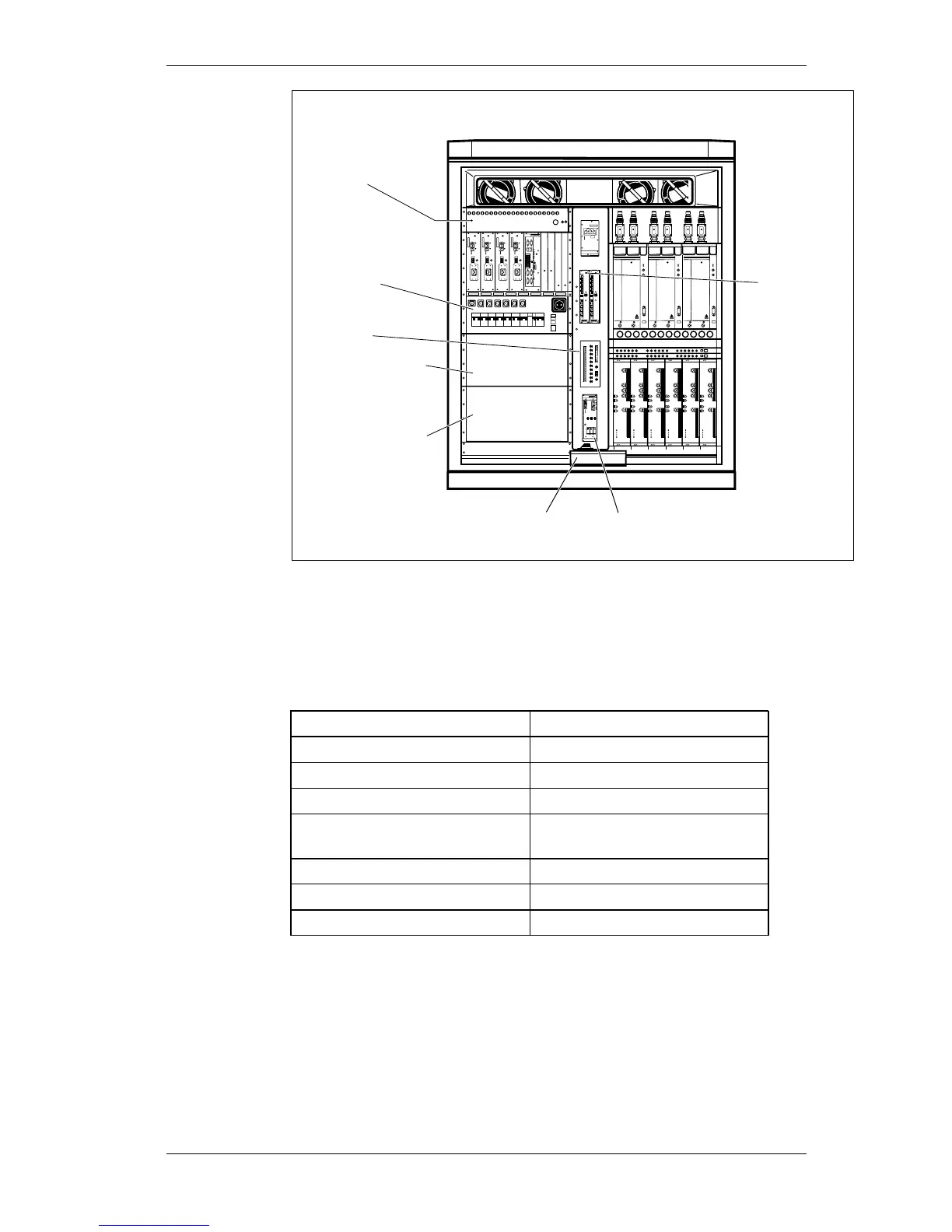

Figure 43 Major units in RBS 2106 power system
5.4.1 AC Supply
Single-phase or three-phase AC power may be used.
Table 48 Power parameters
Nominal voltage
120–250 V AC
(1)
Operating voltage 108–275V AC
Nominal frequency 50–60 Hz
Operating frequency 45–65 Hz
Maximum inrush current (total, all
phases)
60 A for 10 ms (typical duration)
Maximum ground leakage current 50 mA
PSU capacity
4 x 1200 W (4800 W total)
BFU 1 x 160 A
(1) When operating below 200 V nominal voltage, see the RBS 2106
Installation & Integration Manual, chapter Cabinet Installation for connection
diagrams.
EN/LZT 720 0008 P2A
2001-11-28
103 (485)
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
