Unit Description, ACCU-02
17.4 External Interfaces
P008482A
Distribution unit
Connection unit
Cable

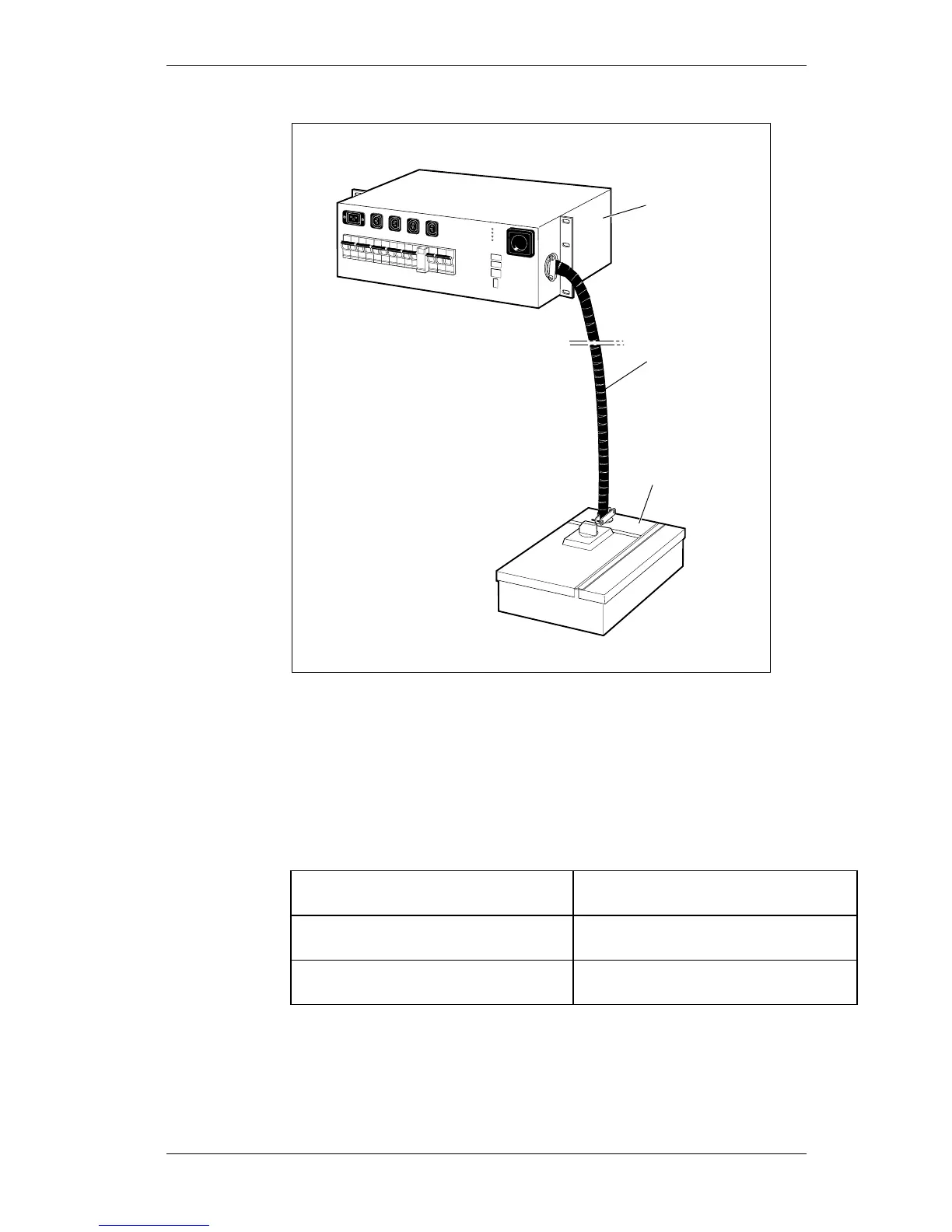

Figure 112 ACCU-02
17.4.1 Input Data
The input terminals accept supply cables with conductor area of
4 - 16 mm².
Maximum allowed fuse rating is 63 A per phase.
Table 127 AC supply 50 Hz
Single-phase, four-wire, earthed
neutral
200 V AC to 250 V AC
Three-phase star, four-wire
1)
, earthed
neutral
346/200 V AC to 433/250 V AC
Three-phase star, four-wire
1)
, earthed
neutral
208/120 V AC to 220/127 V AC
1)
It is also possible to supply the ACCU with a three-phase, five-wire
system (separate neutral and earth conductors).
EN/LZT 720 0008 P2A
2001-11-28
201 (485)
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
