Product Data RBS 2206
6 Product Data RBS 2206
6.1 Site Equipment Overview
BBS
P007416A
AC
Distribution
box
DF
Alarm cable
PCM cable
Optical cable
+24V DC
AC power cable
Antenna
system
RBS 2206
Microwave Link
AC Protection
Unit
(Optional)
TMR 9202

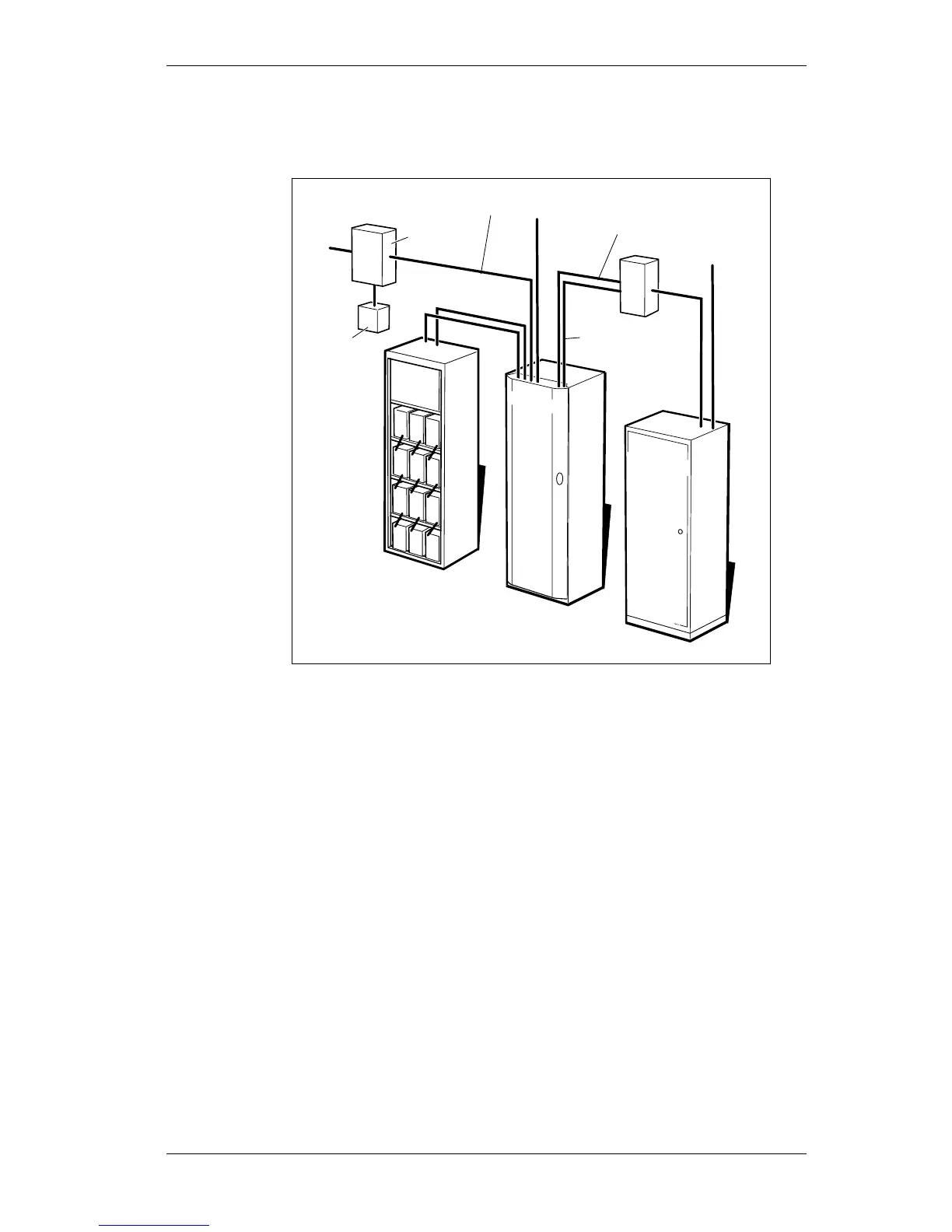

Figure 45 Site Equipment Overview
The following is a list of the most common equipment on a radio site,
divided into function groups:
RBS 2206
Power:
BBS 2000
AC Distribution box
Power cables
Antenna System
Antennas
TMA
Feeder cables
Transmission
TMR 9202
DXX
