Unit Description, RBS 2106 Climate Unit

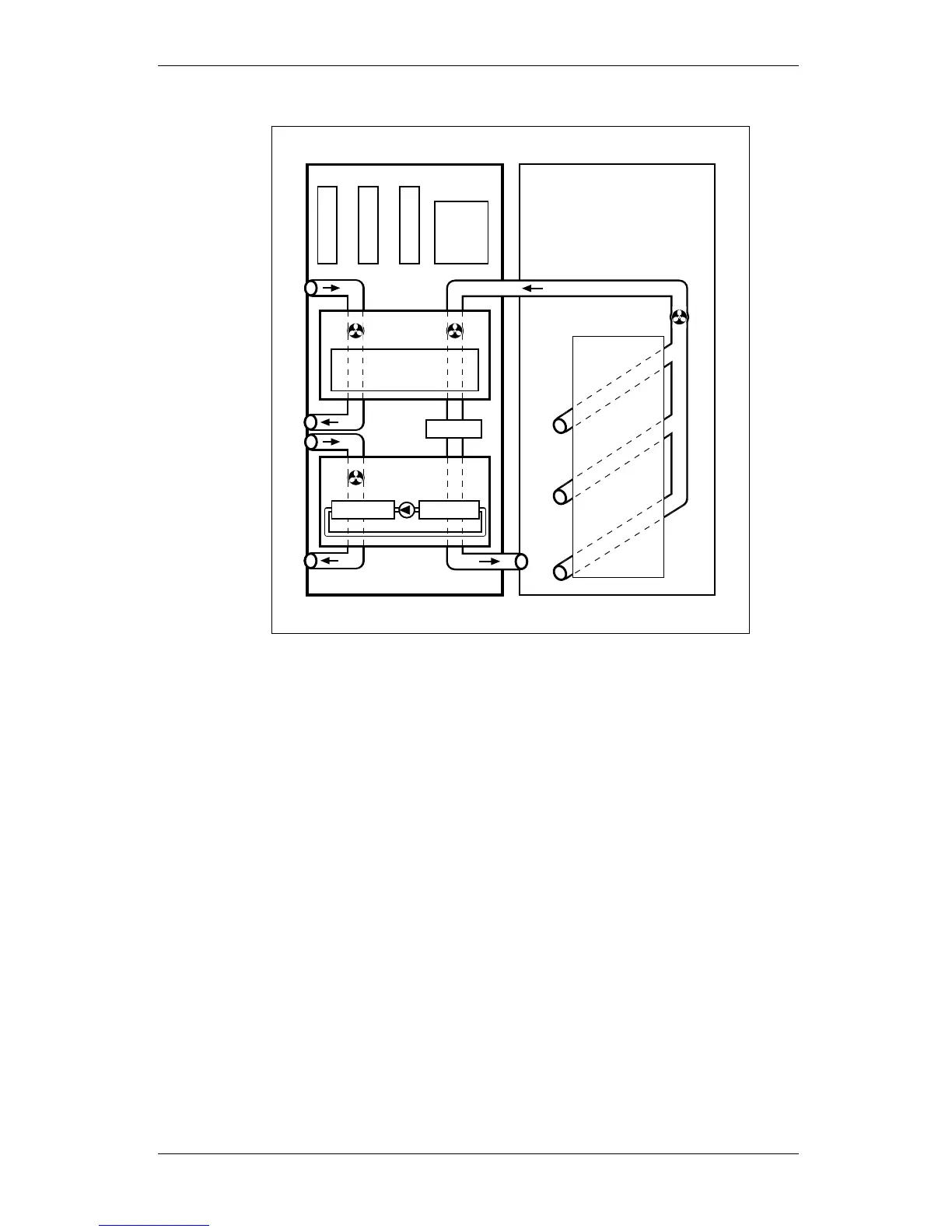

20.1.1 Block Diagram
P008419A
Combined Climate Unit RBS
CCU DC/DC AC/DC
Transformer
Heater
Sub Racks
Return Air
Supply Air
Heat
Exchanger
Condensor Evaporator
Active
Cooler
Figure 119 Combined unit
The Combined climate unit consists of the following units:
• Heat exchanger
• Active cooler
• Heater
• Climate Control Unit (CCU)
• DC/DC converter
• AC/DC converter
• Transformer
Heat Exchanger
This unit consists of a cross-flow heat exchanger, DC-powered internal
and external air circuit fans.
Active Cooler
This unit consists of a compressor, reducing valve, condenser,
evaporator and an AC-powered condenser fan.
216 (485)
EN/LZT 720 0008 P2A
2001-11-28
© Ericsson Radio Systems AB
— All Rights Reserved —
Preliminary
