ermaf P 40 - 11 Assembly Drawing; Spare Parts List

User manual P 40 - P 120
Issue: 11.14
11 Assembly Drawing/Spare parts list P 40 - P 120 Page 25

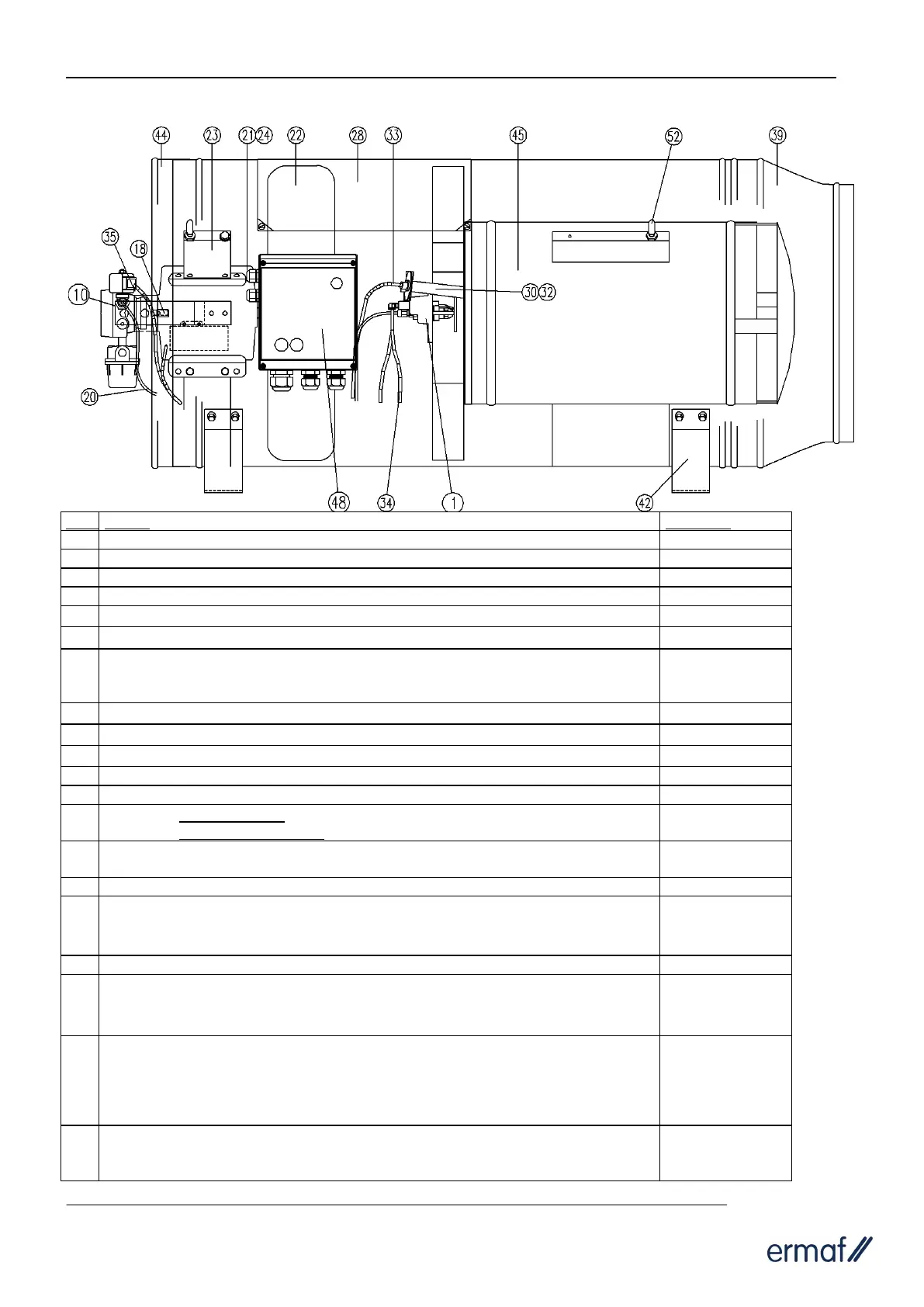

11. Assembly Drawing/Spare parts list P 40 - P 120
Pos.
Name
Code nr.
1
Combustion head complete .......................................................................
See chapter 10
10
Pump unit complete ...................................................................................
See chapter 10
18
Pump linkage 10 mm .................................................................................
N51400018
20
Oil conduit ø4mm ......................................................................................
N51100002
21
Motor P 40/P60: Elnor BX 335 EMR 230 V/300W .....................................
N51700008
Motor P 80/P 120: Elnor BX 350 EMR 230 V/440W ..................................
N51400021
22
Fan P 40: 16”, 30° .....................................................................................
Fan P 60: 18", 26 .....................................................................................
Fan P 80 - P 120: 20" 28 (60Hz: 22°: N51400260) .................................
N51700078
N52600032
N51400022
23
Motor bracket
N51500015
24
Engine capacitor 16µF ..............................................................................
N52800034
28
Service hatch .............................................................................................
N51400220
30
Tube for photocell horticulture .................................................................
N51400032
32
Tube for photocell stable .........................................................................
N51400186
33
Photocell stable version QRB1C extra sensitive ..........................
Photocell horticulture version QRB1B less sensitive ............................
N51400275
N51400273
34
Cable to spark plugs P-series 35 cm…………………………………………….
Cable to spark plugs P-series 40 cm .........................................................
N51400272
N51400271
35
Cable to oil valve .......................................................................................
N51400238
39
Outlet Aluminium P40 complete ................................................................
Outlet Aluminium P 60 (18") complete .......................................................
Outlet Aluminium P 80 - P 120 (20") complete ..........................................
N51100015
N51200004
N51400041
42
Bracket mantle (2x) ...................................................................................
N51400046
44
Safety grille P 40 (16") complete ...............................................................
Safety grille P 60 (18") complete ...............................................................
Safety grille P 80-P 120 (20") complete .....................................................
N51100051
N51200026
N51400213
45
Combustion chamber P 40 complete .........................................................
Combustion chamber P 60 complete .........................................................
Combustion chamber P 80/P100 complete agriculture
Combustion chamber P 80/P100 complete horticulture .............................
Combustion chamber P 120 complete .......................................................
N51100049
N51200023
N51400310
N51400402
N51500003
48
BCU Oil lid
BCU Oil socket (incl.Ignition transformer)
Transformer Danfoss EBI
N51400196
N51400197
N51400206
