6
ADN01

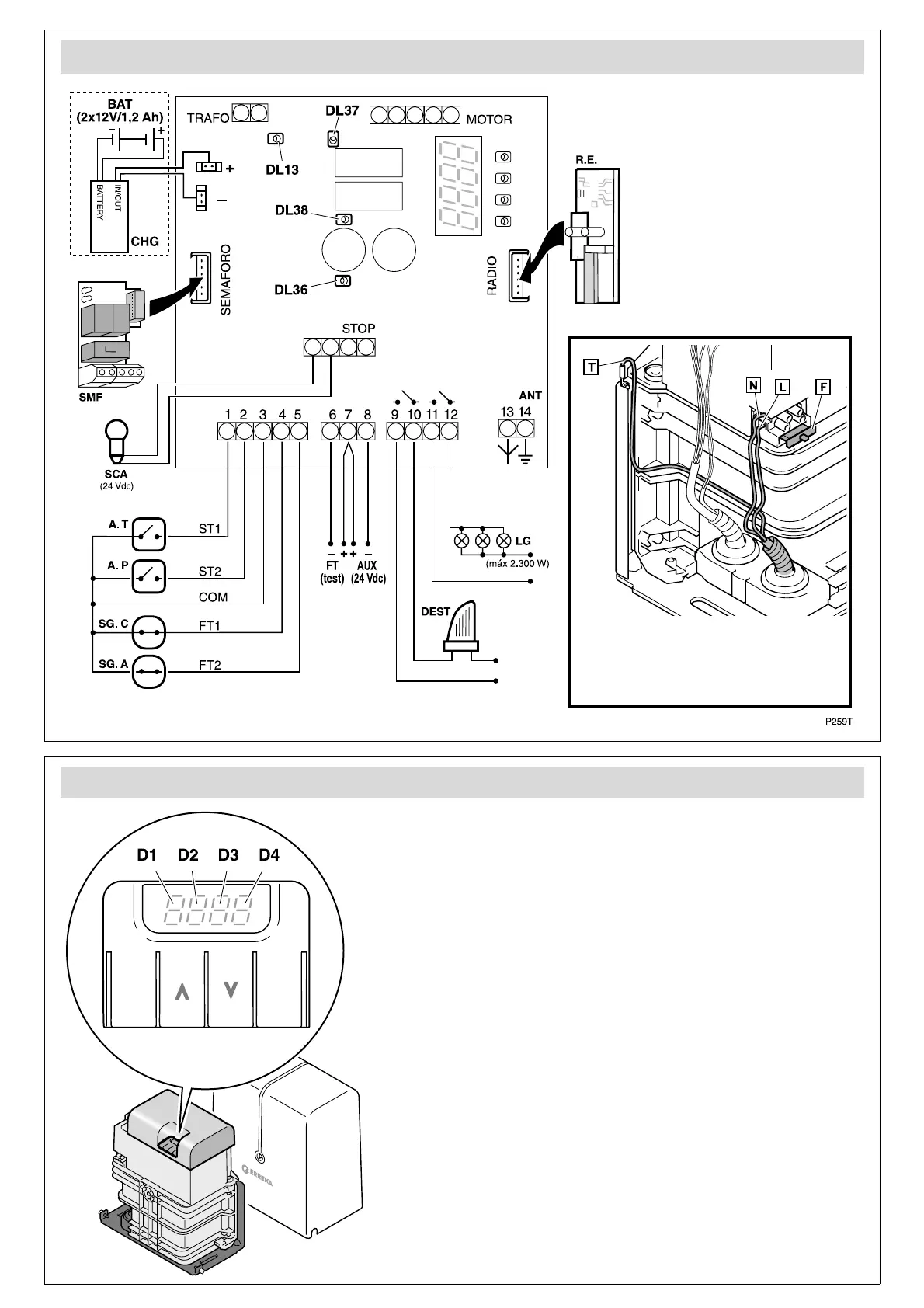

General connections
L: line
N:neutral
T: earth
F:mains fuse
230Vac: 2.5A
125Vac: 4A
Disconnect the power
supply before connecting
or disconnecting any
component.
The A.T., A.P. SG.C, SG.A and STOP devices must be voltage-free
in order to prevent any damage to the control board.
DL13 24Vac power supply
DL36 5Vdc power supply
DL37 Closing relay activated
DL38 Opening relay activated
M259C
EnterEsc
D1 and D2:
CL (static) Gate closed
CL (flashing) Gate closing
OP (static) Gate open
OP (flashing) Gate opening
PC (flashing) Pedestrian door closing
PO (static) Pedestrian door open
PO (flashing) Pedestrian door opening
XX (countdown) Gate on standby
StOP Operator unlocked
PA (static) Pause (operation not complete)
rS (flashing) Gate searching for close position (reset)
D3 and D4:
C4 Opening safety device activated
C5 Closing safety device activated
E1 Encoder motor shutdown
F1 Force limit exceeded
bA (static) Battery working
bA (flashing) Battery voltage too low
(the board does not carry out any operations)
Ftço Photocells defective (testing)
Display indications
