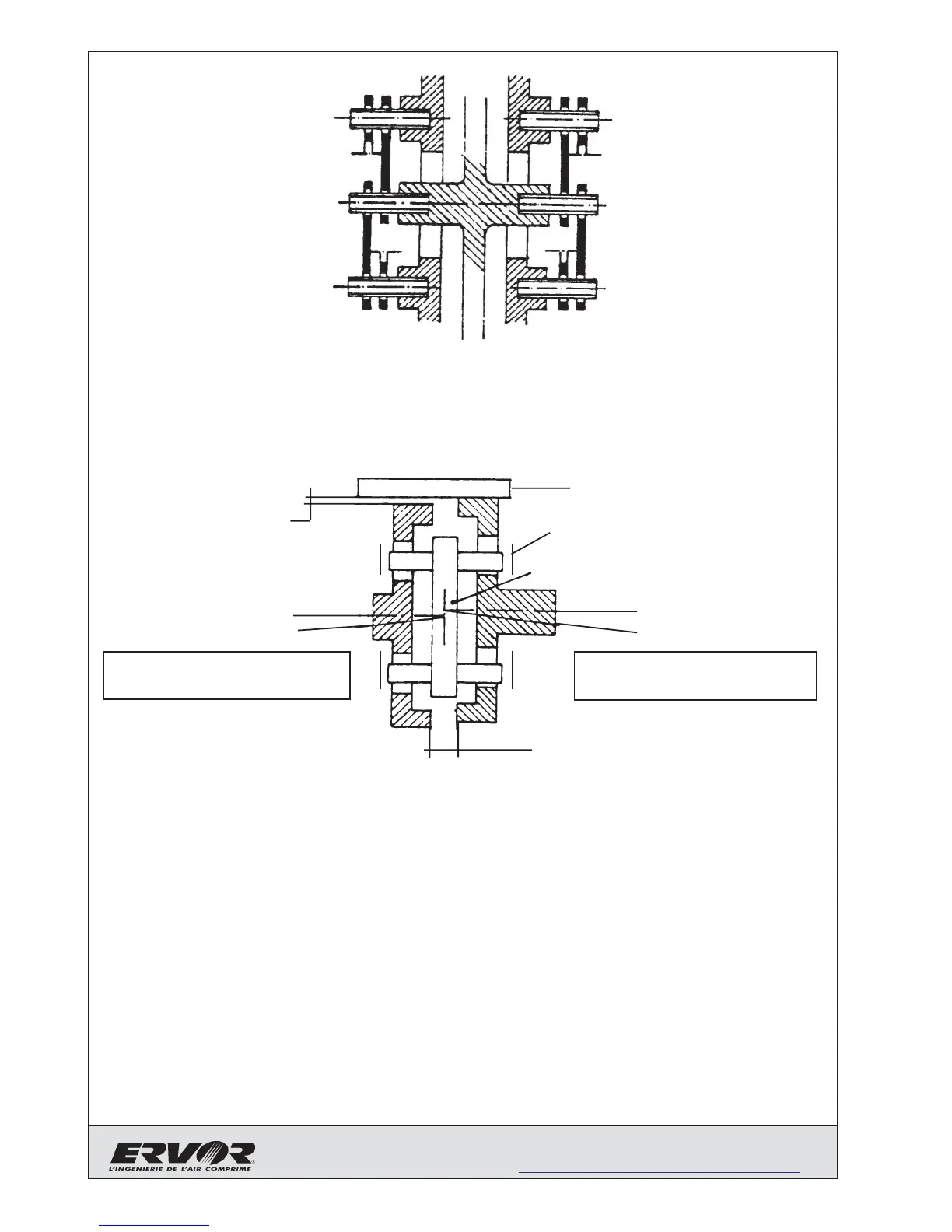

Aline the compressor by adjusting the coupling according to the measurements indicated in the
illustration below ; lightly tighten.
Assemble the semi-elastic blades between the intermediate plate and the plate on the motor
drive side.
Check setting dimensions, adjust if necessary and tighten fixings.
RULE
2mm +/-0.3
0.2mm MAXI
Horizontally & vertically
0°30' maxi
0°30' maxi
COMPRESSOR READING
WITH PLATE & SHORT HUB
INTERMEDIATE PLATE
SEMI-FLEXIBLES BLADES
ENGINE READING WITH
PLATE & LONG HUB
