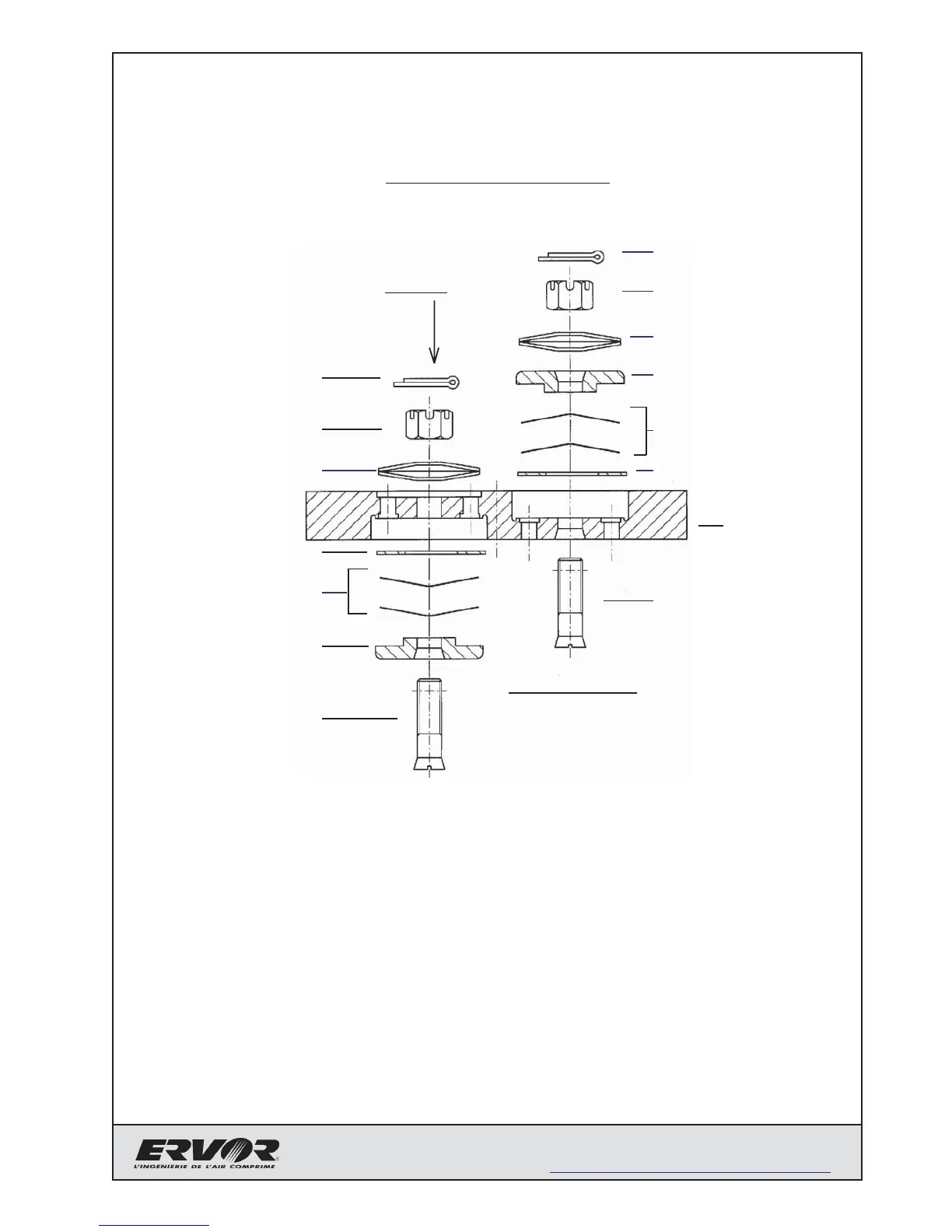

VALVE Ø 30 (L.P) and (H.P)
INTAKE
COMPRESSION
CYLINDER HEAD
OUT PUT VALVE
(P30CPQ7 / 3 933 003)
SPLIT PIN
(PCV2X16 / 7 436 004)
CASTELLATED NUT
(PCAX8bisQ13 / 3 933 024)
BELLEVILLE WASHER
(PCRBLM8x18 / 7 421 009)
COMPRESSION STOP
(PB30AQ2 / 3 936 007)
VALVE SPRING
(P30RSQ5 / 3 933 012)
VALVE STEM
(PCAX8Q11 / 3 925 002)
SPLIT PIN
(PCV2X16 / 7 436 004)
BELLEVILLE WASHER
(PCRBLM8x18 / 7 421 009)
CASTELLATED NUT
(PCAX8bisQ13 / 3 933 024)
VALVE SPRING
(P30RSQ5 / 3 933 012)
VALVE STEM
(PCAX8Q11 / 3 925 002)
INTAKE STOP
(PB30AQ2 / 3 936 007)
INTAKE VALVE
(P30CPQ7 / 3 933 003)
(drawing number / reference)
