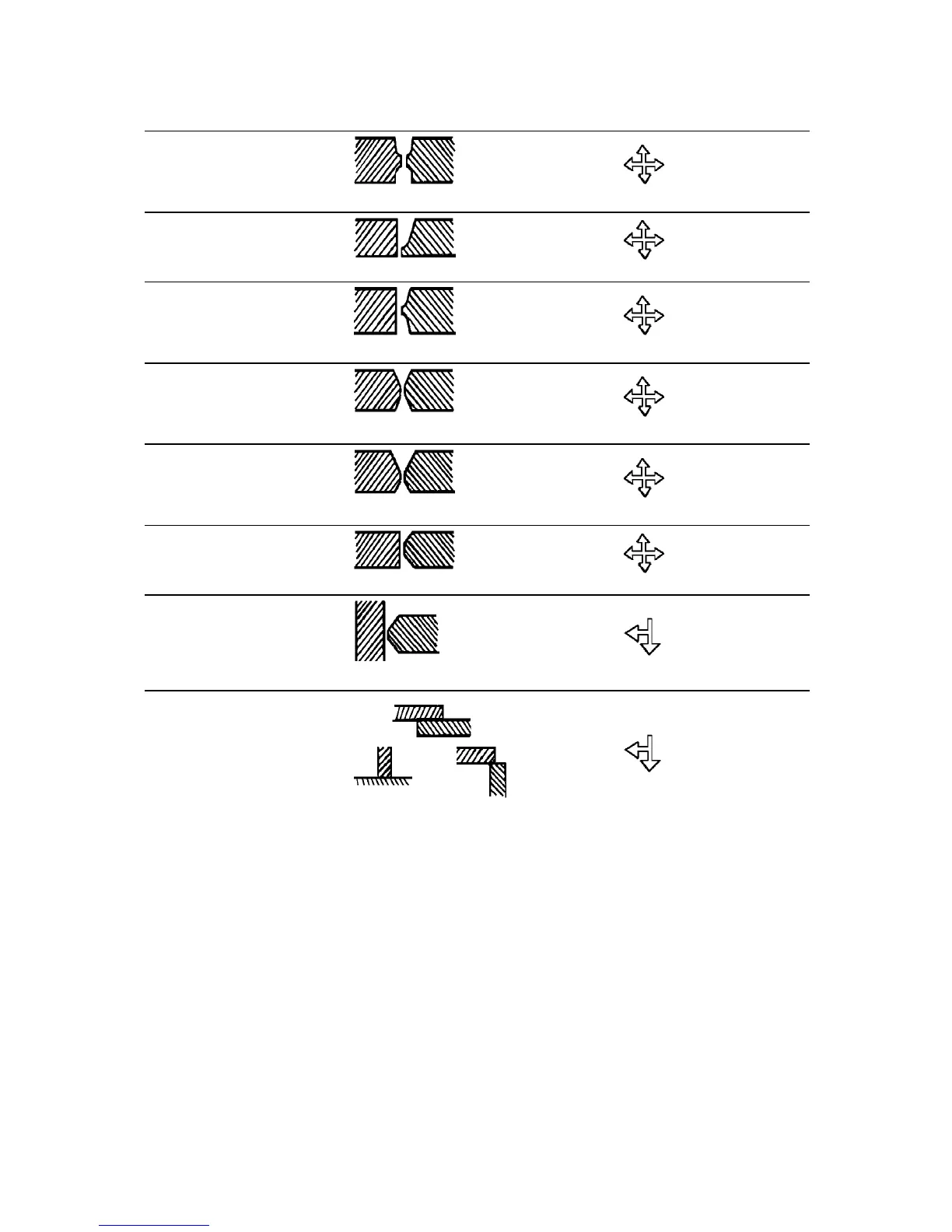

Settings, control boxJoint type
Double U--weld
J--weld
Double J-- weld
X--weld
Asymmetrical X--weld
K--weld
K--weld
Fillet weld
Positioning prior to start of welding
1. Position the welding equipment so in relation to the weld joint that the working range of
the cross slide covers the entire height of the joint, as well as the deviation in the lateral
from the starting point to the end point.
2. Set switch (4), see figure on p age 6, to the desir ed joint tracking position. Operate the
guide finger vertically downwards using the joystick until the indicating lamp (1) goes
out.
3. GMD now looks for its zero position and by that also the position of the welding nozzle
in the joint. Adjust the position as necessary by means of the cross saddle of the control
device.
