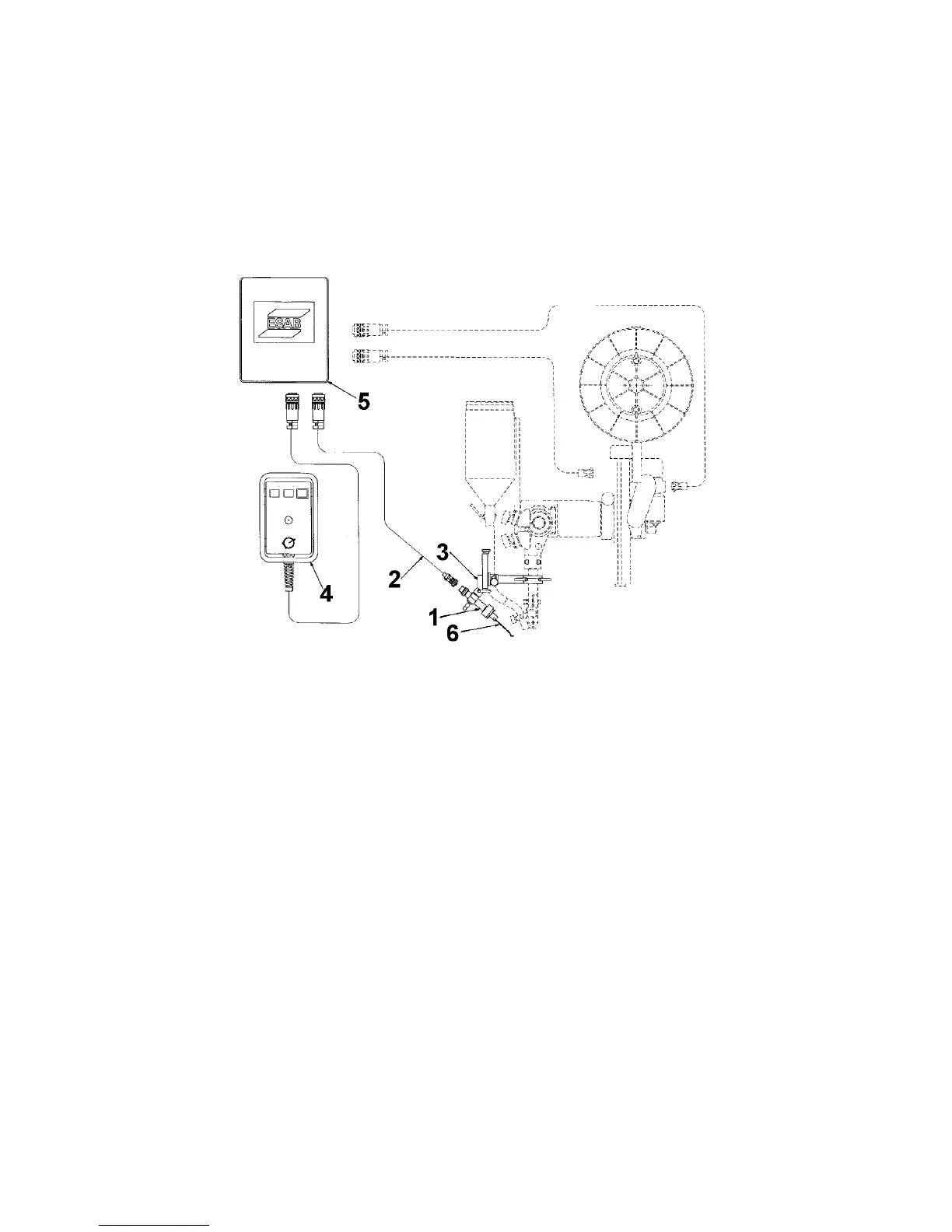

The A6 GMD comprises:
1. Sensor, order no. 416 688--880
2. Control cable (2 m), order no. 416 749--887
3. Cross saddle for sensor, order no. 416 739--880
4. Control unit, order no. 416 065--880
5. Joint tracking unit, order no. 416 066--880
dga9b005
For welding column and boom units the control box and the control cable (points 4 and 5
above) are replaced by product specific items.
Extra equipment for A6 GMD
S Sensor finger, order no. 416 719-- 001 (L=100 mm)
S Sensor finger, order no. 416 719-- 002 (L=150 mm)
S Sensor finger for intern al and external corners, order no 418 091--880
S Auxiliary control power transformer for separate power supply from mains:
190, 220, 380, 415, 440, 500 V 50 Hz
200, 230, 380, 415, 440, 500 V 60 Hz, to secondary 42V, 660 VA
see order no. 148 636--002
S Cable3x2.5mm
2
, for transformer, order no. 2626 134--04
S Sensor cable with 90_--contact, order no. 418 091--887
S Rubber guard bellows, order no 412 013--001
S Bracket for control box 433 762--xxx. The bracket is available in different applications.
