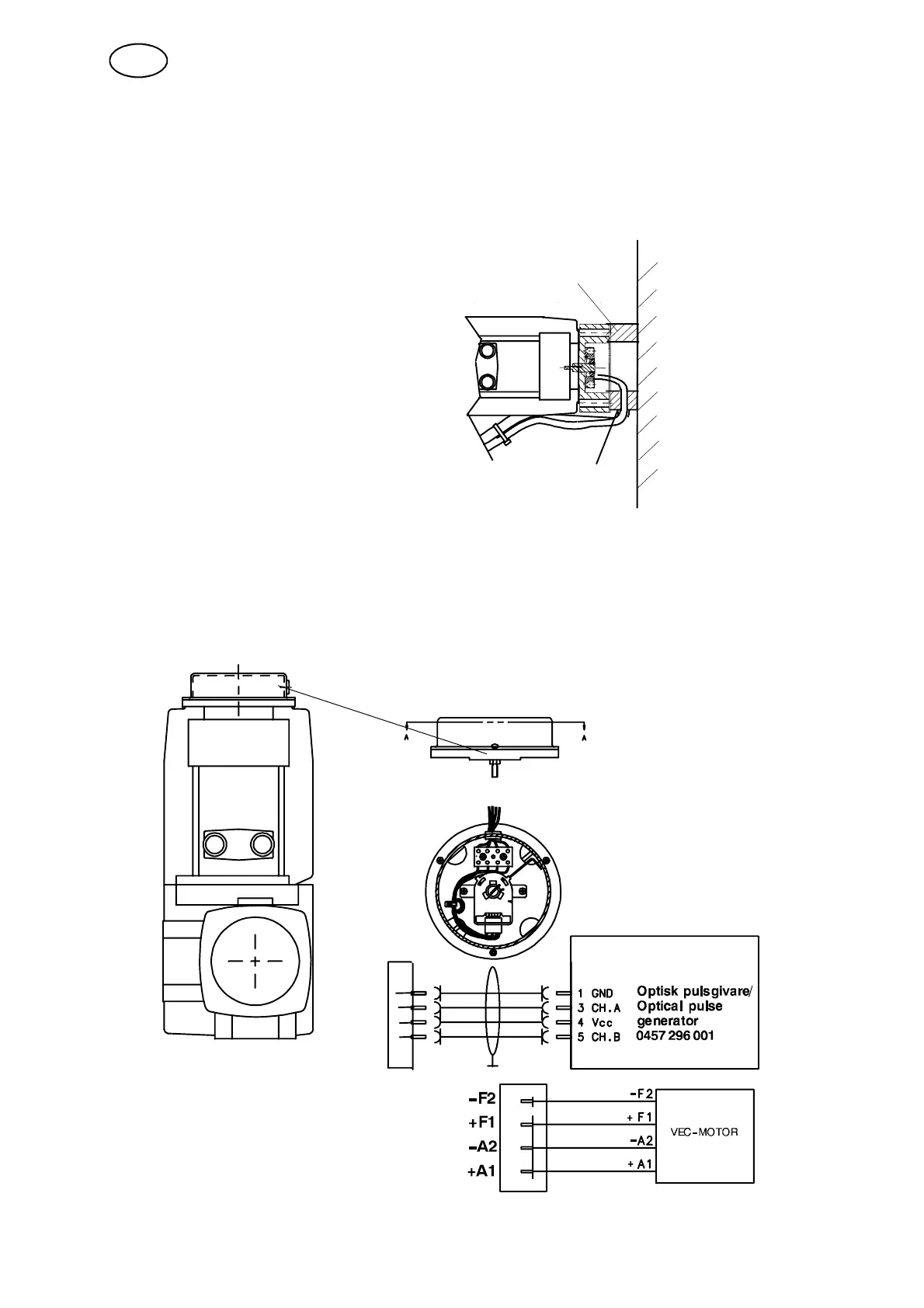

When the VEC motor is to be fitted to the wall, spacer no. 0497 967 880 must be
used.
The plastic cap normally protecting the AC tachometer must then be removed and
the cable inserted through the cable support sleeve in the spacer.
Order number of assembly set containing all parts necessary for the wall mounting:
0457 967 880.
1. Spacer
2. Cable support sleeve
Optical pulse generator
The optical pulse generator consists of a rotating plate fitted to the motor shaft.
The plate rotates between a light transmitter and a light receiver.
The pulse generator supplies 500 pulses per motor revolution. Cables for connection
to motor and pulse generator are supplied.
